Ahuja

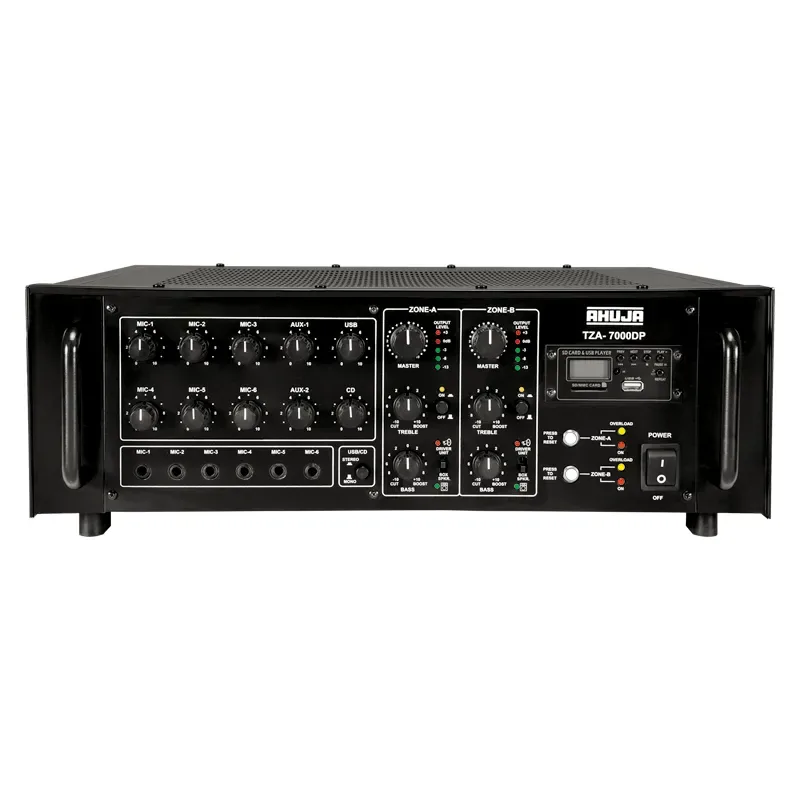

The Ahuja TZA-7000DP is a 700W 2 zone PA mixer amplifier with stereo/mono switch to change ambience of MP3 music player and cd/stereo music for dj programmes. Built-in MP3 player with remote control and LCD display for USB, SD/MMC card reader.
Facilitates connection and operation of two separate groups of speakers simultaneously. Ideal for Places of Worship.
| Power Output | 500W + 500W Max., 350W + 350W RMS at 10% THD, 300W + 300W RMS at 5% THD, 280W + 280W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | Mic/Aux 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo Music Mode: L/R 200mV/100kΩ, Line L/R 1V/20kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Output | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Output | 4Ω, 8Ω, 70V & 100V for each zone |
| Digital Player | MP3 Player with USB, SD and MMC Card Reader |
| Power Supply | AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery) |
| Power Consumption | AC: 1100VA DC: 13A |
| Dimensions | W510 × H185 × D470 mm |
| Weight | 40.0kg |
The TZA-7000DP is an Ahuja 2 zone PA mixer amplifier in the TZA Series rated 700 WATTS. The Ahuja TZA-7000DP is a 700W 2 zone PA mixer amplifier with stereo/mono switch to change ambience of MP3 music player and cd/stereo music for dj programmes. Available from Mansukhlal Sales Corp, an authorized dealer.
Stereo/Mono switch to change ambience of MP3 music player & CD/Stereo music for DJ programmes; Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording; Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility; Resettable circuit breaker for protection against overload and short circuit; Instant transfer to DC power (Car Battery) if AC power fails.
The TZA-7000DP output regulation is ≤ 2 dB, no load to full load at 1kHz.
The TZA-7000DP input channels is Mic/Aux 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo Music Mode: L/R 200mV/100kΩ, Line L/R 1V/20kΩ.
The TZA-7000DP frequency response is 50-15,000Hz ±3dB.
The TZA-7000DP signal to noise ratio is 60dB.
The TZA-7000DP tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
