Ahuja
TZA-2000
- Power
- 200 WATTS
- Zones
- 2 Zones
- Series
- TZA Series
- Category
- Mixer Amplifiers
- Category
- Zone Mixer Amplifiers

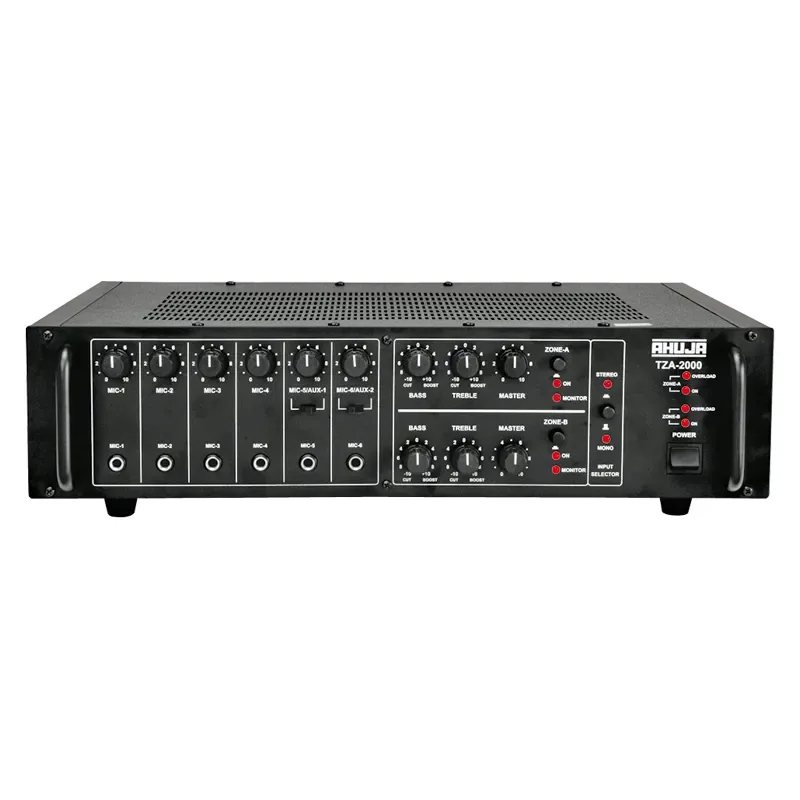

The Ahuja TZA-2000 is a 200W 2 zone PA mixer amplifier. It has a choice to connect both the zones to 100V (LMT) type speakers, or 100V speakers to one zone and low impedance type speakers to the other zone.
Both the zones can also be connected to low impedance type speakers. TZA-2000 is ideal for medium sized installations such as in places of worship where two separate groups of speakers are needed to be connected.
Features
- 6 Mic & 2 Aux Inputs.
- 100W+100W power output.
- 'Stereo' music operation, connecting of two separate groups of speakers, line inputs & outputs, preamplifier outputs, zone On/Off facility, DC fuses at rear pannel, AC/DC operation have been provided.
- TZA-2000 is ideal for medium sized installations such as in places of worship where two separate groups of speakers are needed to be connected.
- User has a choice to connect both the zones to 100V (LMT) type speakers, or 100V speakers to one zone and low impedance type speakers to the other zone. Both the zones can also be connected to low impedance type speakers.
Specifications, Q&A and videos
| Power Output | 130W + 130W Max., 100W + 100W RMS at 10% THD, 90W + 90W RMS at 5% THD, 80W + 80W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | Mono 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo L/R 250mV/47kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Outputs | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V for each zone |
| Power Supply | AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
| Power Consumption | AC: 420VA DC: 6.5A |
| Dimensions | W500 × H140 × D340 mm |
| Weight | 17.4kg |
The TZA-2000 is an Ahuja 2 zone PA mixer amplifier in the TZA Series rated 200 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
6 Mic & 2 Aux Inputs; 100W+100W power output; 'Stereo' music operation, connecting of two separate groups of speakers, line inputs & outputs, preamplifier outputs, zone On/Off facility, DC fuses at rear pannel, AC/DC operation have been provided; TZA-2000 is ideal for medium sized installations such as in places of worship where two separate groups of speakers are needed to be connected; User has a choice to connect both the zones to 100V (LMT) type speakers, or 100V speakers to one zone and low impedance type speakers to the other zone. Both the zones can also be connected to low impedance type speakers.
The TZA-2000 output regulation is ≤ 2 dB, no load to full load at 1kHz.
The TZA-2000 input channels is Mono 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo L/R 250mV/47kΩ.
The TZA-2000 frequency response is 50-15,000Hz ±3dB.
The TZA-2000 signal to noise ratio is 60dB.
The TZA-2000 tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
