Ahuja
TZA-1200
- Power
- 120 WATTS
- Zones
- 2 Zones
- Series
- TZA Series
- Category
- Mixer Amplifiers
- Category
- Zone Mixer Amplifiers

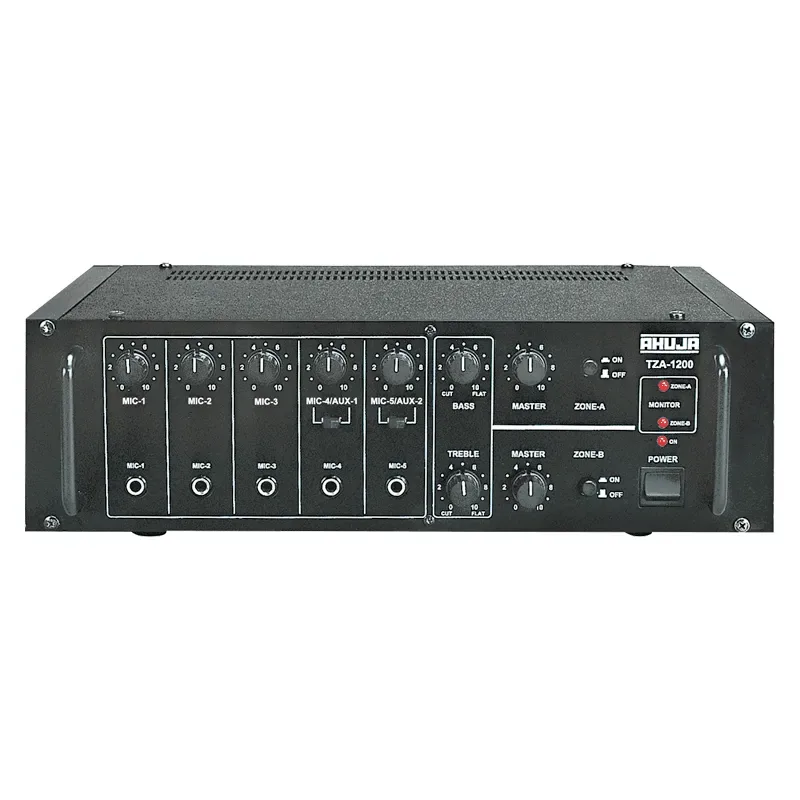

The Ahuja TZA-1200 is a 120W 2 zone PA mixer amplifier. TZA-1200 is suitable for small sized installations such as in places of worship where both external and internal speakers are required to be connected with different sound level settings.
Connecting two groups of speakers, preamplifier output, bass and treble controls, zone On/Off facility, AC/DC operation have been provided.
Features
- 5 Mic & 2 Aux Inputs.
- 60W+60W power output.
- Connecting two groups of speakers, preamplifier output, bass and treble controls, zone On/Off facility, AC/DC operation have been provided.
- TZA-1200 is suitable for small sized installations such as in places of worship where both external and internal speakers are required to be connected with different sound level settings.
Specifications, Q&A and videos
| Power Output | 90W + 90W Max., 60W + 60W RMS at 10% THD, 55W + 55W RMS at 5% THD, 50W + 50W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 5 × Mic 0.6mV/4.7kΩ, 1 × Aux 100mV/470 kΩ, 1 × Aux 200mV/250kΩ (RCA Jack) |
| Frequency Response | 70-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
| Outputs | Preamp 200mV/600Ω |
| Speaker Outputs | 4Ω, 8Ω, 16Ω & 100V for each zone |
| Power Supply | AC: 220-240V 50/60Hz DC: 12V (12V Car Battery) |
| Power Consumption | AC: 250VA DC: 5A |
| Dimensions | W400 × H130 × D290 mm |
| Weight | 10.1kg |
The TZA-1200 is an Ahuja 2 zone PA mixer amplifier in the TZA Series rated 120 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
5 Mic & 2 Aux Inputs; 60W+60W power output; Connecting two groups of speakers, preamplifier output, bass and treble controls, zone On/Off facility, AC/DC operation have been provided; TZA-1200 is suitable for small sized installations such as in places of worship where both external and internal speakers are required to be connected with different sound level settings.
The TZA-1200 output regulation is ≤ 2 dB, no load to full load at 1kHz.
The TZA-1200 input channels is 5 × Mic 0.6mV/4.7kΩ, 1 × Aux 100mV/470 kΩ, 1 × Aux 200mV/250kΩ (RCA Jack).
The TZA-1200 frequency response is 70-15,000Hz ±3dB.
The TZA-1200 signal to noise ratio is 60dB.
The TZA-1200 tone controls is Bass: -10dB at 100Hz, Treble: -10dB at 10kHz.
