Ahuja
TZA-1500
- Power
- 160 WATTS
- Zones
- 2 Zones
- Series
- TZA Series
- Category
- Mixer Amplifiers
- Category
- Zone Mixer Amplifiers

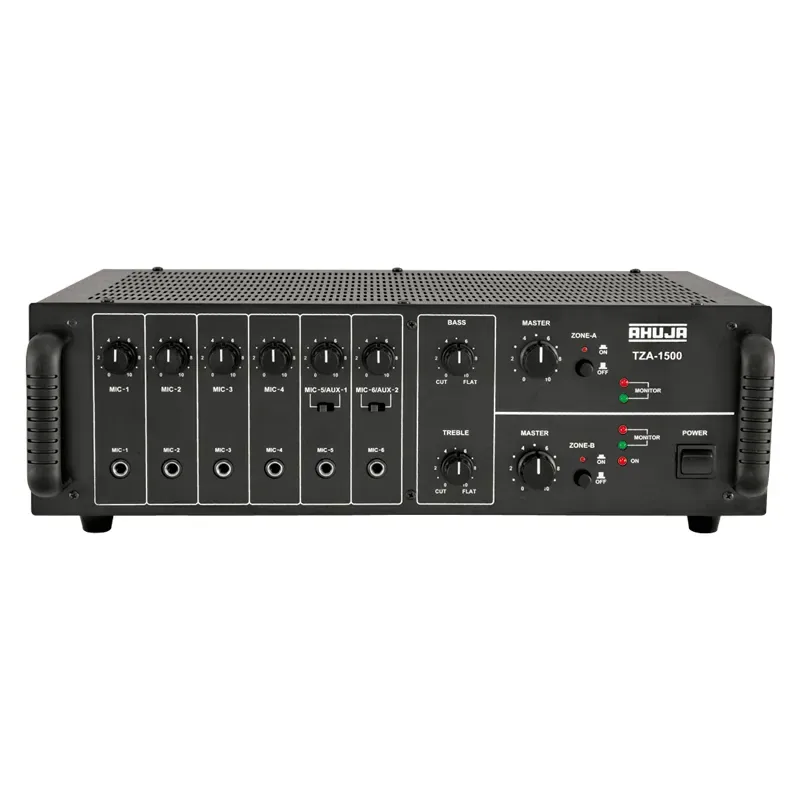

The Ahuja TZA-1500 is a 160W 2 zone PA mixer amplifier. TZA-1500 permits connecting 100V (LMT) type speakers to one Zone and low impedance type speakers to other Zone without causing overloading and over heating.
Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
Features
- 6 Mic & 2 Aux Inputs.
- Preamplifier output for connecting to a Booster Amplifier and for recording the programme.
- Bass & Treble Controls.
- TZA-1500 permits connecting 100V (LMT) type speakers to one Zone and low impedance type speakers to other Zone without causing overloading and over heating.
- Instant transfer to DC power (Car Battery) if AC
- power fails.
- Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
Specifications, Q&A and videos
| Power Output | 100W + 100W Max., 80W + 80W RMS at 10% THD, 70W + 70W RMS at 5% THD, 60W + 60W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470 kΩ |
| Frequency Response | 65-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
| Outputs | Preamp 200mV/600Ω |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V for each zone |
| Power Supply | AC: 220-240V 50/60Hz DC: 12V (12V Car Battery) |
| Power Consumption | AC: 300VA DC: 6A |
| Dimensions | W460 × H155 × D310 mm |
| Weight | 14.2kg |
The TZA-1500 is an Ahuja 2 zone PA mixer amplifier in the TZA Series rated 160 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
6 Mic & 2 Aux Inputs; Preamplifier output for connecting to a Booster Amplifier and for recording the programme; Bass & Treble Controls; TZA-1500 permits connecting 100V (LMT) type speakers to one Zone and low impedance type speakers to other Zone without causing overloading and over heating; Instant transfer to DC power (Car Battery) if AC; power fails.
The TZA-1500 output regulation is ≤ 2 dB, no load to full load at 1kHz.
The TZA-1500 input channels is 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470 kΩ.
The TZA-1500 frequency response is 65-15,000Hz ±3dB.
The TZA-1500 signal to noise ratio is 60dB.
The TZA-1500 tone controls is Bass: -10dB at 100Hz, Treble: -10dB at 10kHz.
