Ahuja
TZA-4000EM
- Power
- 400 WATTS
- Zones
- 2 Zones
- Series
- TZA Series
- Category
- Mixer Amplifiers
- Category
- Zone Mixer Amplifiers

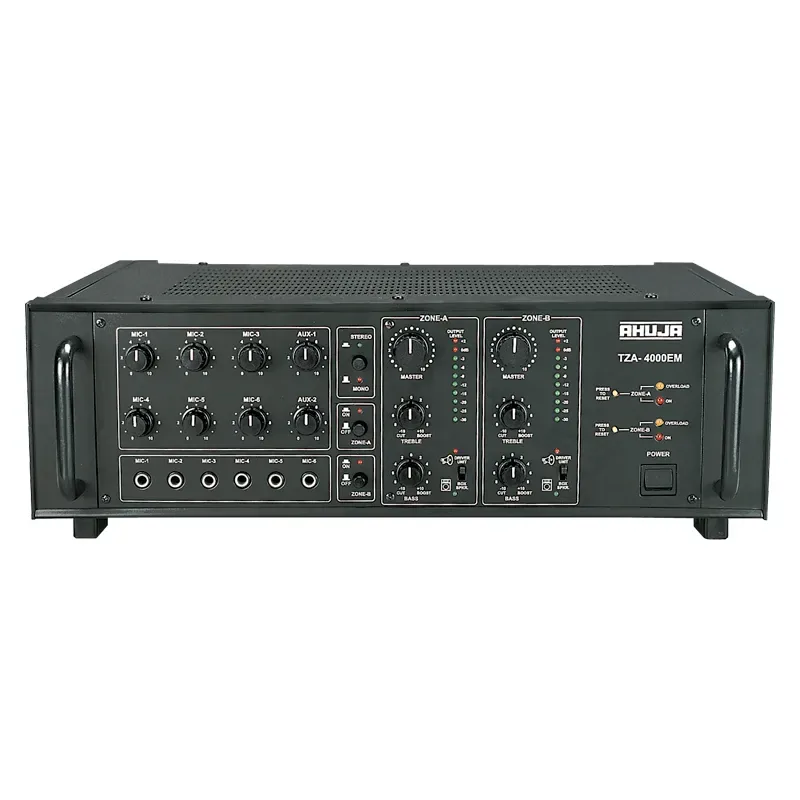

The Ahuja TZA-4000 EM is a 400W 2 zone PA mixer amplifier. Separate groups of speakers simultaneously on 'Mono' mode. Ideal for Places of Worship.
It has a box speaker/driver unit selector switch for each zone. Bass boost defeated at driver unit position for safer operation of driver units.
Features
- 6 Mic & 2 Aux Inputs.
- 'Stereo' Music Operation for DJ programmes.
- Facilitates connection and operation of two
- separate groups of speakers simultaneously on 'Mono' mode. Ideal for Places of Worship.
- Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
- Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
Specifications, Q&A and videos
| Power Output | 300W + 300W Max., 200W + 200W RMS at 10% THD, 180W + 180W RMS at 5% THD, 165W + 165W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | Mono 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Outputs | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V for each zone |
| Power Supply | AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
| Power Consumption | AC: 700VA DC: 9A |
| Dimensions | W510 × H172 × D385 mm |
| Weight | 24.2kg |
The TZA-4000EM is an Ahuja 2 zone PA mixer amplifier in the TZA Series rated 400 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
6 Mic & 2 Aux Inputs; 'Stereo' Music Operation for DJ programmes; Facilitates connection and operation of two; separate groups of speakers simultaneously on 'Mono' mode. Ideal for Places of Worship; Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording; Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility.
The TZA-4000EM output regulation is ≤ 2 dB, no load to full load at 1kHz.
The TZA-4000EM input channels is Mono 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ.
The TZA-4000EM frequency response is 50-15,000Hz ±3dB.
The TZA-4000EM signal to noise ratio is 60dB.
The TZA-4000EM tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
