SM Professional
SEQ 312
- Series
- SEQ Series
- Category
- Processors
- Category
- Graphic Equalisers

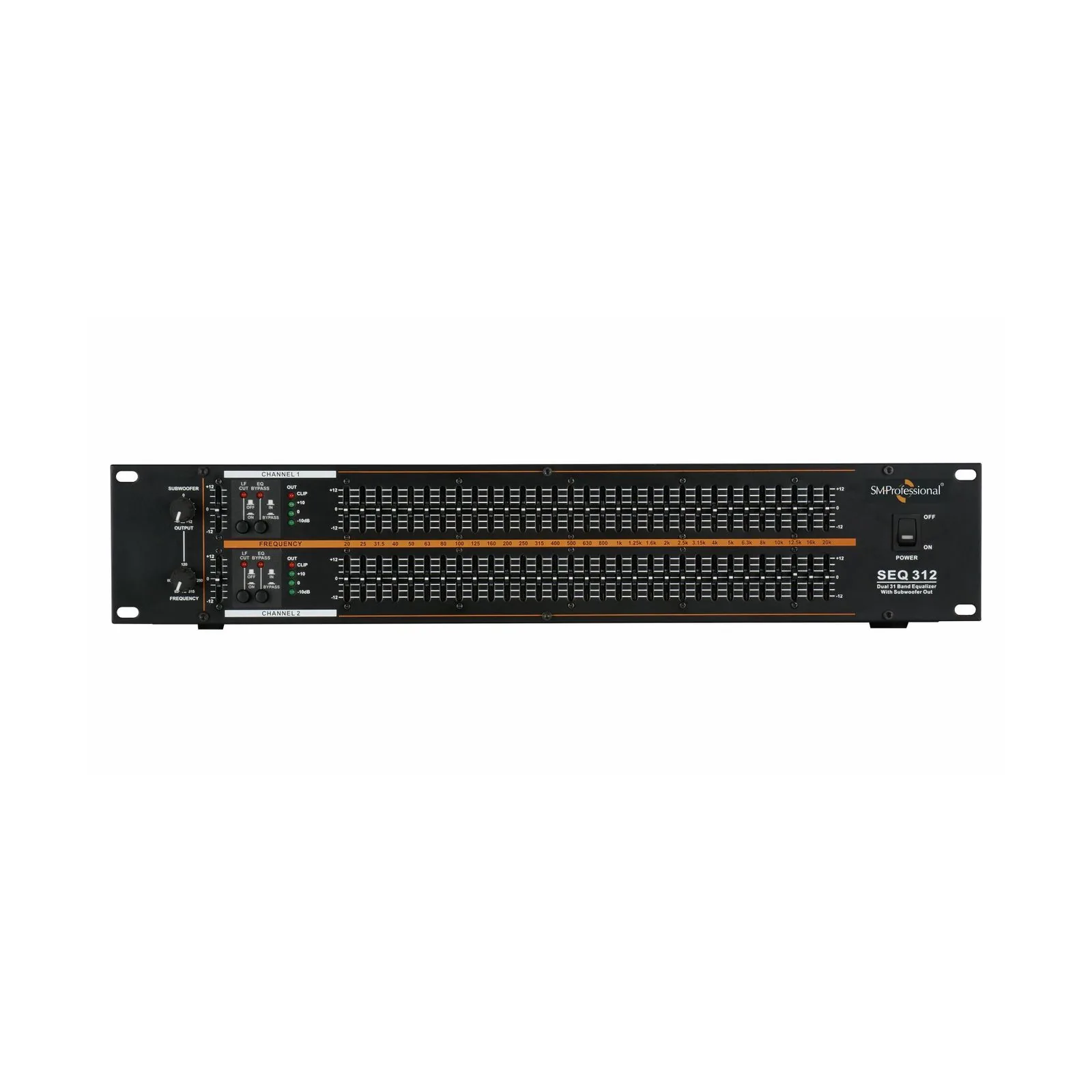

The SM Professional SEQ 312 is an Ultra Musical Dual 31 Band Graphic Equalizer which meets the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls.
Features
- Professional dual 31-Band stereo graphic equalizer with constant Q factor.
- Range setting switchable between +12 dB / -12dB to give a gradual variation as required.
- Durable & Accurate 20mm Fader.
- LF Cut & Bypass Switches.
- Separate Sub out with selectable frequencies

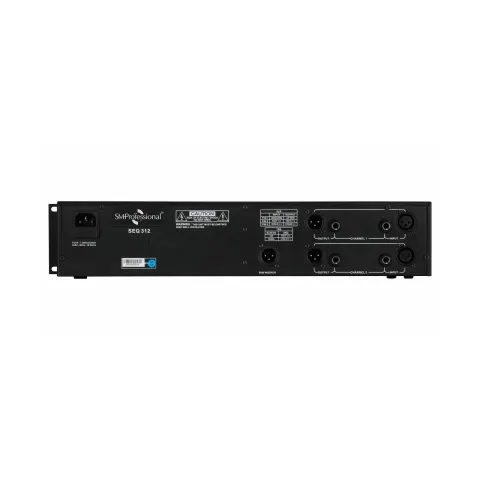

- Balanced & Unbalanced I/O Connectors.
Specifications, Q&A and videos
| Input Impedance | Balanced 20K Ω |
|---|---|
| Output Impedance | Balanced 600 Ω |
| Input Output Connectors | XLR & TRS |
| Frequency Response | 20Hz-20 KHz |
| EQ Center Frequency | 20Hz, 25Hz, 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz,100Hz 125Hz, 180Hz, 200Hz, 250Hz, 315Hz, 400Hz, 500Hz 630Hz, 1KHz, 1.25KHz, 1.6KHz, 2KHz, 2.5KHz, 3.15KHz,4 Khz, 5KHz, 6.3KHz, 8KHz,10KHz,12.5KHz, 16KHz, 20KHz. |
| EQ Cut / Boost | ± 12dB |
| Sub Woofer Frequency | 63Hz-315Hz |
| Low Cut | -3dB@63Hz |
| S/N ratio | >90dB |
| THD | 0.01% |
| Power Supply | 230V AC / 50Hz |
| Dimensions (W x D x H)mm | 482 x 145 x 88 (2U) |
| Net Weight (Kgs.) | 2.9 |
The SEQ 312 is an SM Professional Graphic equalisers / processor in the SEQ Series. The SM Professional SEQ 312 is an Ultra Musical Dual 31 Band Graphic Equalizer which meets the needs of the most demanding sound reinforcement environments, while offering the. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional dual 31-Band stereo graphic equalizer with constant Q factor; Range setting switchable between +12 dB / -12dB to give a gradual variation as required; Durable & Accurate 20mm Fader; LF Cut & Bypass Switches; Separate Sub out with selectable frequencies; Balanced & Unbalanced I/O Connectors.
The SEQ 312 input impedance is Balanced 20K Ω.
The SEQ 312 output impedance is Balanced 600 Ω.
The SEQ 312 input output connectors is XLR & TRS.
The SEQ 312 frequency response is 20Hz-20 KHz.
The SEQ 312 eq center frequency is 20Hz, 25Hz, 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz,100Hz 125Hz, 180Hz, 200Hz, 250Hz, 315Hz, 400Hz, 500Hz 630Hz, 1KHz, 1.25KHz, 1.6KHz, 2KHz, 2.5KHz, 3.15KHz,4 Khz, 5KHz, 6.3KHz, 8KHz,10KHz,12.5KHz, 16KHz, 20KHz..
