SM Professional
MULTI 3
- Series
- MULTI Series
- Category
- Processors
- Category
- Effects Processors

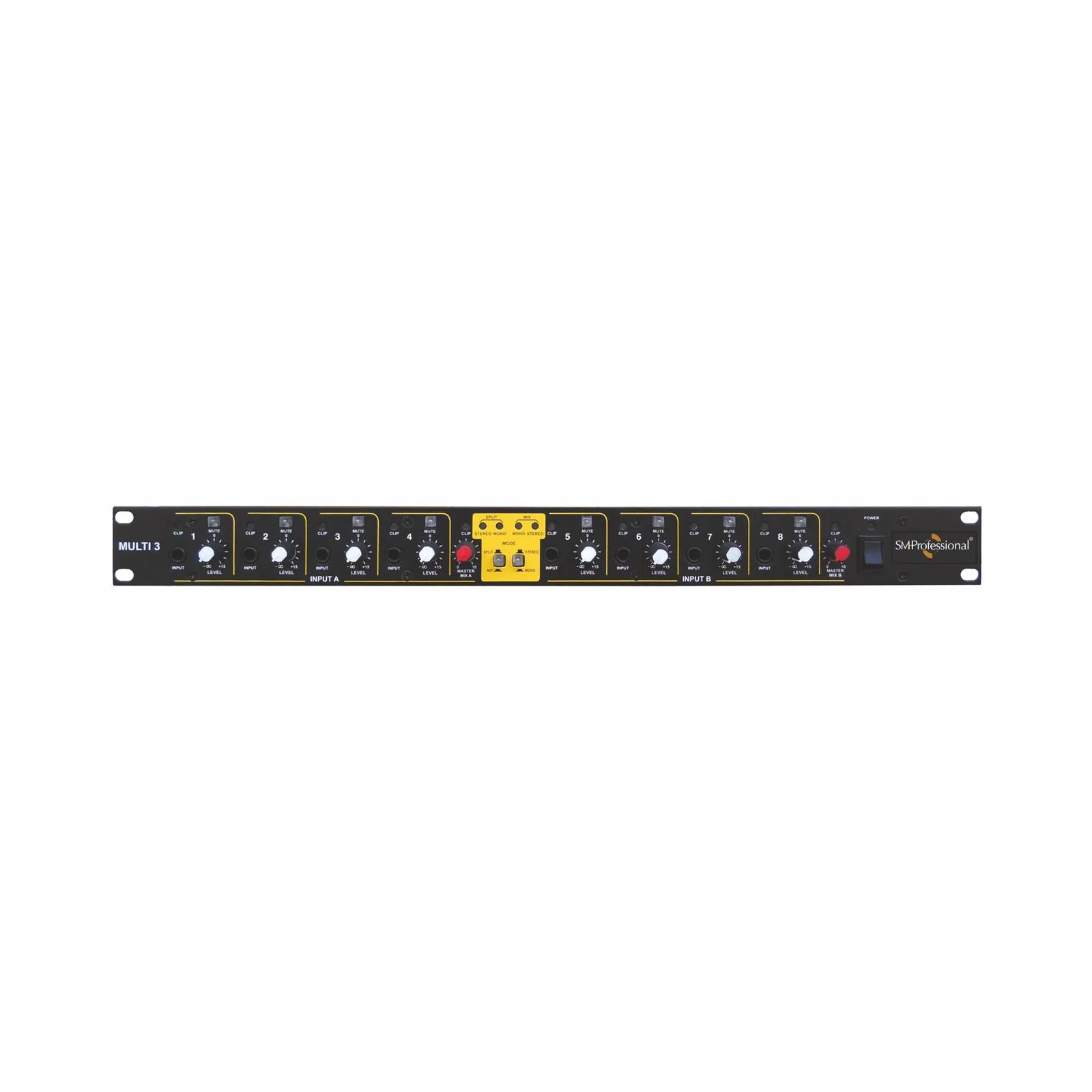

The SM Professional MULTI 3 is a high quality Splitter/mixer designed to suit the needs of fixed installations as well as live sound re-inforcements.
Features
- 10 balanced Inputs & Outputs.
- 4 modes of operation: Stereo Mix – 2 X (4 IN / Mix Out + 4 Individual Channel out). Mono Mix – 8 IN / 2 Mix Out + 8 Individual Channel out. Stereo Split – 2 IN / 10 Out. Mono Split – 1 IN / 10 Out.
- ¼” Stereo jack inputs on each channel with level control.
- 15dB gain on each channel.
- Self illuminated mute switches on each channel.
- Clip LED for all inputs.

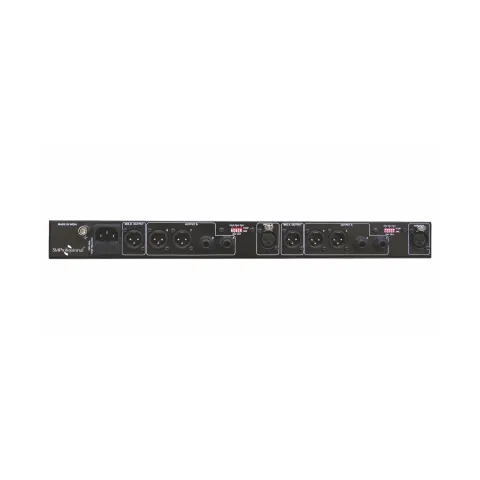

- Individual Outputs: Four ¼’’ Stereo Jacks & Four XLR.
- Balanced inputs/ outputs & master control for MIX A & B.
Specifications, Q&A and videos
| Input sensitivity | 0dBu |
|---|---|
| Input Impedance | > 20 K Ω |
| Output Impedance | < 50 Ω |
| Maximum Output level | +21 dBu |
| Frequency Response | 20Hz – 20KHz (+/-0.5 dB) |
| THD | < 0.01 % |
| Power Supply | 240V AC/50Hz |
| Dimensions (W x D x H)mm | 482 x 120 x 44.2 (1U) |
| Net Weight (Kgs.) | 2.1 |
The MULTI 3 is an SM Professional PA product in the MULTI Series. The SM Professional MULTI 3 is a high quality Splitter/mixer designed to suit the needs of fixed installations as well as live sound re-inforcements. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
10 balanced Inputs & Outputs; 4 modes of operation: Stereo Mix – 2 X (4 IN / Mix Out + 4 Individual Channel out). Mono Mix – 8 IN / 2 Mix Out + 8 Individual Channel out. Stereo Split – 2 IN / 10 Out. Mono Split – 1 IN / 10 Out; ¼” Stereo jack inputs on each channel with level control; 15dB gain on each channel; Self illuminated mute switches on each channel; Clip LED for all inputs.
The MULTI 3 input sensitivity is 0dBu.
The MULTI 3 input impedance is > 20 K Ω.
The MULTI 3 output impedance is < 50 Ω.
The MULTI 3 maximum output level is +21 dBu.
The MULTI 3 frequency response is 20Hz – 20KHz (+/-0.5 dB).
