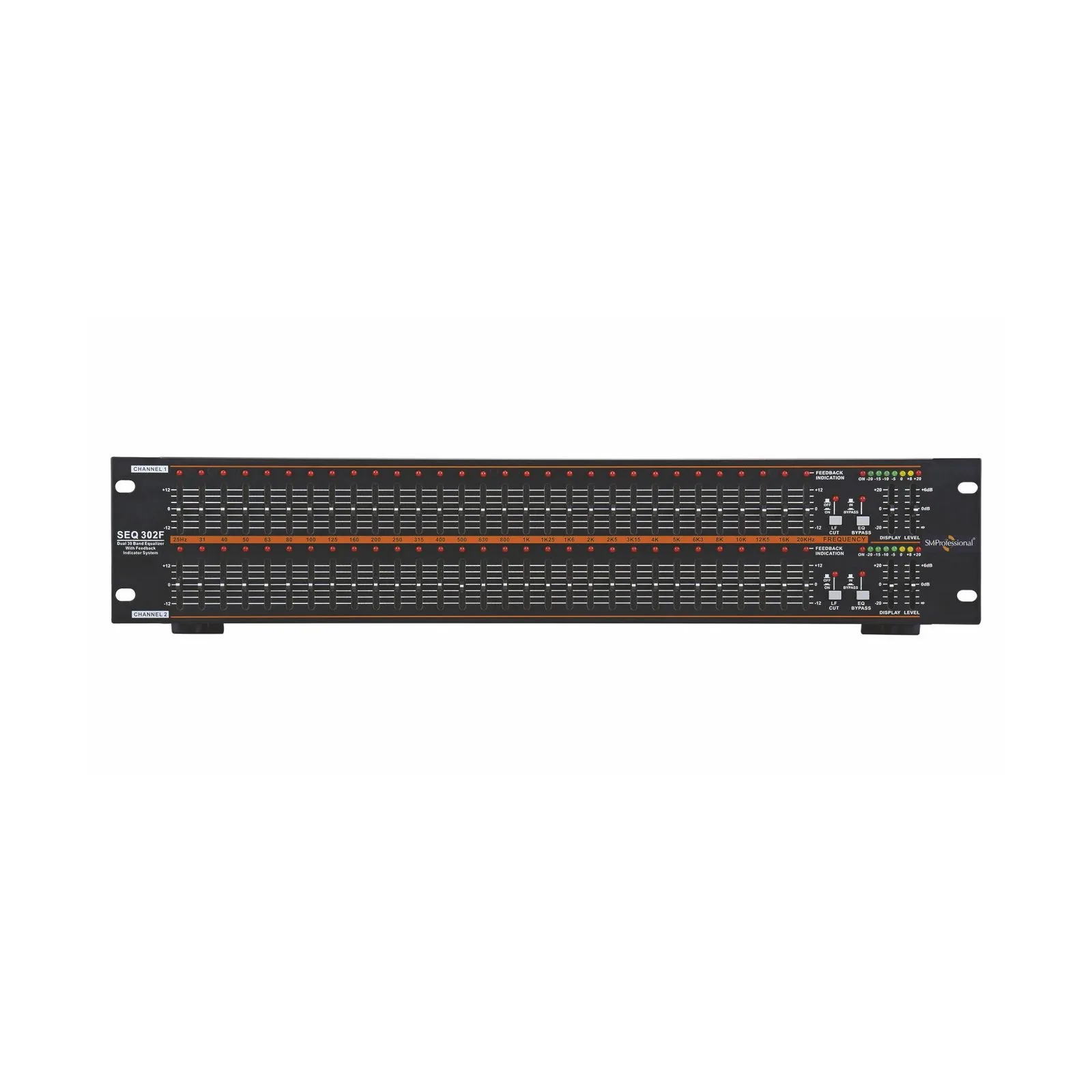

The SM Professional SEQ 302 F is a Dual 30 band stereo graphic equalizer with Feedback detection system.
Features
- Dual 30-Band stereo graphic equalizer with Feedback detection system & Constant Q factor.
- LED for each frequency instantly reveals the critical frequencies
- Range setting between +12dB/-12dB to give the gradual variation required.
- Durable & Accurate 20mm Faders for easy level setting of each frequency.
- Low Frequency cut & EQ bypass switches.

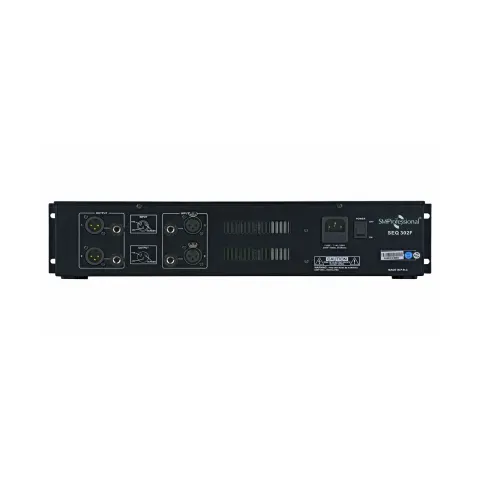

- Balanced inputs and outputs with 1/4” TRS and XLR connectors.
Specifications, Q&A and videos
| Input Impedance | Balanced 12.7K Ω |
|---|---|
| Output Impedance | Balanced 600 Ω |
| Input Output Connectors | XLR & TRS |
| Frequency Response | 20Hz – 20 KHz |
| EQ Center Frequency | 25Hz, 31Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz, 250Hz, 315Hz, 400Hz, 500Hz, 630Hz, 800Hz, 1KHz, 1.25KHz, 1.6KHz, 2KHz, 2.5KHz, 3.15KHz, 4KHz, 5KHz, 6.3KHz, 8KHz, 10KHz, 12.5KHz, 16KHz, 20KHz. |
| EQ Cut / Boost | ± 12dB |
| Sub Woofer Frequency | 63Hz-315Hz |
| Low Cut | 63Hz, -3dB |
| S/N ratio | >90dB |
| THD | 0.01% |
| Power Supply | 230V AC / (50 ~ 60)Hz |
| Power Consumption | 25W |
| Dimensions (W x D x H)mm | 485 x 170 x 90 mm |
| Net Weight (Kgs.) | 3.15 |
The SEQ 302F is an SM Professional Graphic equalisers / processor in the SEQ Series. The SM Professional SEQ 302 F is a Dual 30 band stereo graphic equalizer with Feedback detection system. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Dual 30-Band stereo graphic equalizer with Feedback detection system & Constant Q factor; LED for each frequency instantly reveals the critical frequencies; Range setting between +12dB/-12dB to give the gradual variation required; Durable & Accurate 20mm Faders for easy level setting of each frequency; Low Frequency cut & EQ bypass switches; Balanced inputs and outputs with 1/4” TRS and XLR connectors.
The SEQ 302F input impedance is Balanced 12.7K Ω.
The SEQ 302F output impedance is Balanced 600 Ω.
The SEQ 302F input output connectors is XLR & TRS.
The SEQ 302F frequency response is 20Hz – 20 KHz.
The SEQ 302F eq center frequency is 25Hz, 31Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz, 250Hz, 315Hz, 400Hz, 500Hz, 630Hz, 800Hz, 1KHz, 1.25KHz, 1.6KHz, 2KHz, 2.5KHz, 3.15KHz, 4KHz, 5KHz, 6.3KHz, 8KHz, 10KHz, 12.5KHz, 16KHz, 20KHz..
