SM Professional

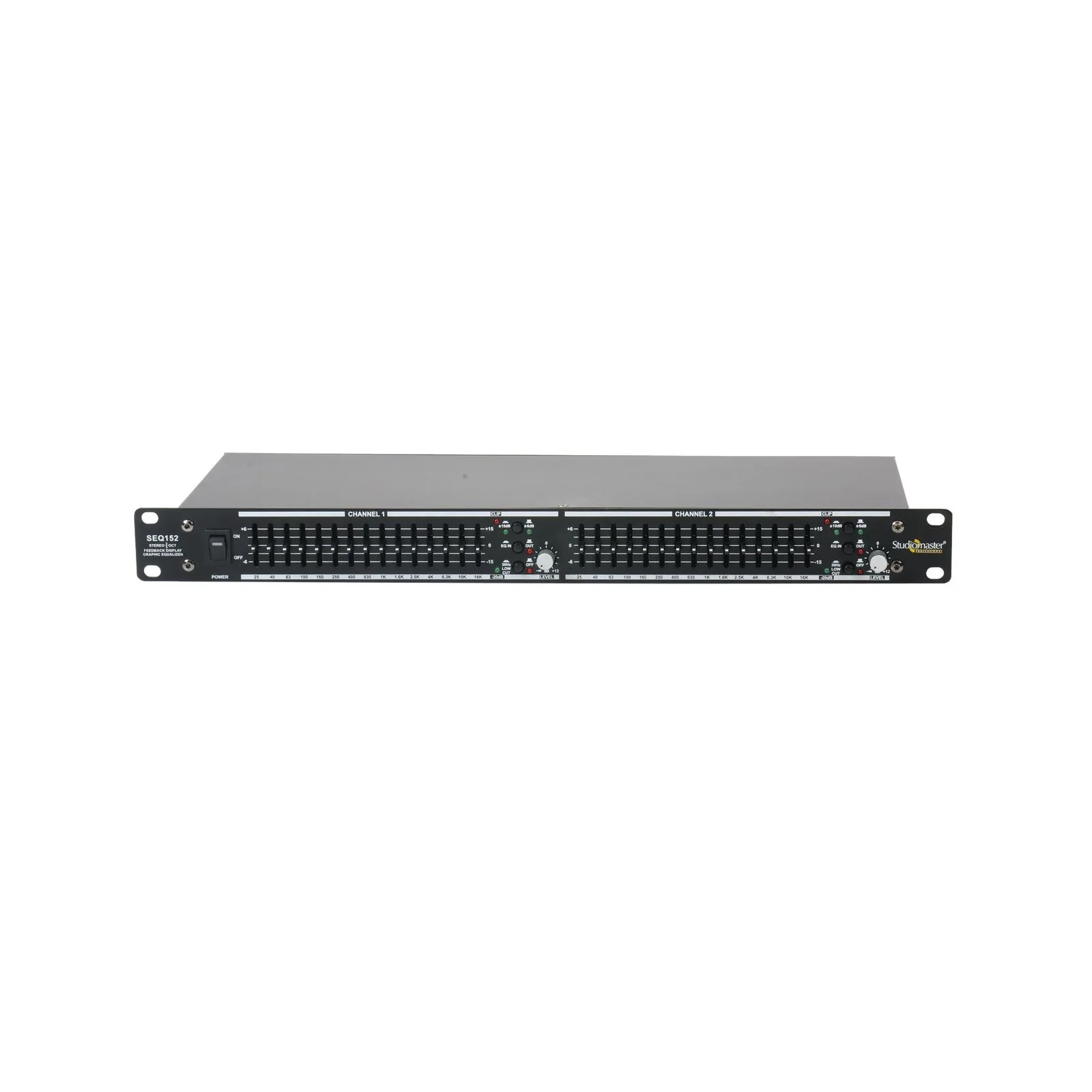

The SM Professional SEQ 152 is a professional 15-Band graphic equalizer that goes on an extra mile to make sure your sound output is a class apart.
| Input Impedance | Balanced 20K Ω |
|---|---|
| Output Impedance | Balanced 600 Ω |
| Input Output Connectors | XLR & TRS |
| Frequency Response | 20Hz-20 KHz |
| EQ Center Frequency | 25Hz, 40Hz, 63Hz, 100Hz, 160Hz, 250Hz, 400Hz, 630Hz, 1KHz, 1.6KHz, 2.5KHz, 4 Khz, 6.3KHz,10KHz, 16KHZ |
| EQ Cut / Boost | Switchable to ± 6dB & ±15dB |
| Low Cut | -3dB@30Hz |
| S/N ratio | >90dB |
| THD | 0.05% |
| Power Supply | 230V AC / 50Hz |
| Dimensions (W x D x H)mm | 483 x 170 x 44.5 (1U) |
| Net Weight (Kgs.) | 2.7 |
The SEQ 152 is an SM Professional graphic equalisers / processor in the SEQ Series. The SM Professional SEQ 152 is a professional 15-Band graphic equalizer that goes on an extra mile to make sure your sound output is a class apart. Available from Mansukhlal Sales Corp, an authorized dealer.

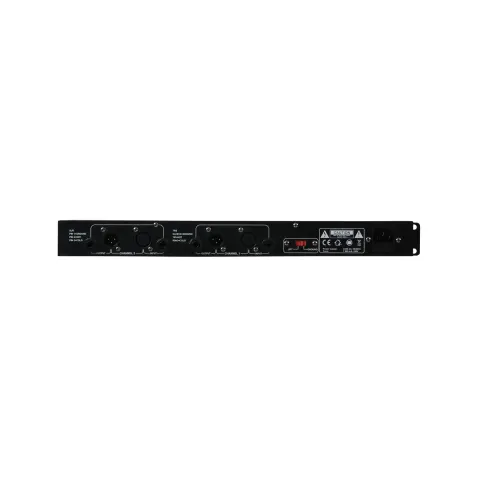

Professional Dual 15-Band stereo graphic equalizer with Constant Q factor; Range setting switchable between 6dB/15dB to give a gradual variation as required; Durable & Accurate 20mm Fader; Convenient Ground Lift Switch on the Rear Panel; LF Cut & Bypass Switches; Balanced & Unbalanced I/O Connectors.
The SEQ 152 input impedance is Balanced 20K Ω.
The SEQ 152 output impedance is Balanced 600 Ω.
The SEQ 152 input output connectors is XLR & TRS.
The SEQ 152 frequency response is 20Hz-20 KHz.
The SEQ 152 eq center frequency is 25Hz, 40Hz, 63Hz, 100Hz, 160Hz, 250Hz, 400Hz, 630Hz, 1KHz, 1.6KHz, 2.5KHz, 4 Khz, 6.3KHz,10KHz, 16KHZ.
