SM Professional
SEQ 152F
- Series
- SEQ Series
- Category
- Processors
- Category
- Graphic Equalisers

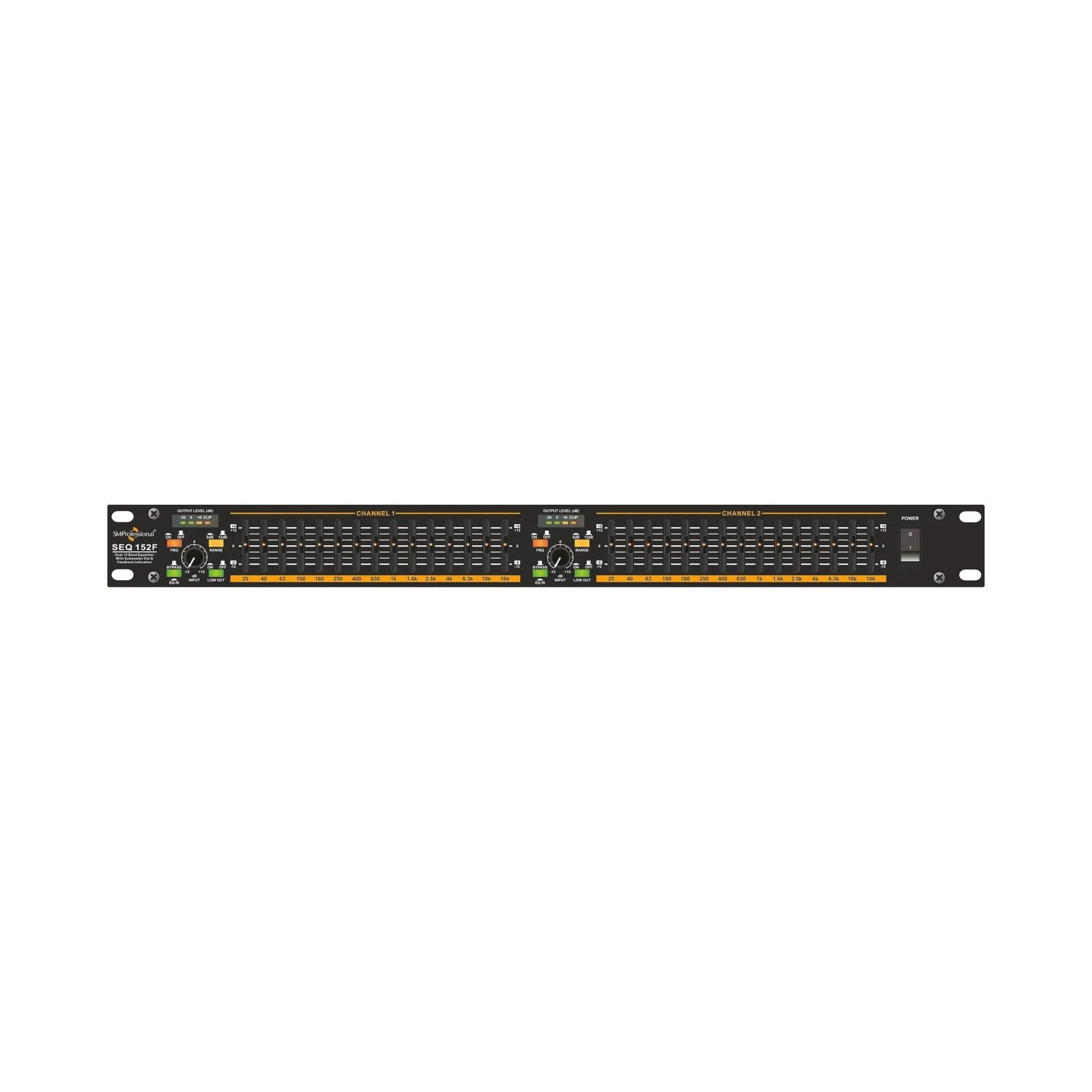

The SM Professional SEQ 152F is a high quality dual 15-band stereo graphic equalizer with feedback detection system.
With multiple feedback detection LEDs, multicolour backlit LEDs, subwoofer output with crossover and more, the equalizer is ideal for a wide variety of live, touring, DJ and install applications.
Features
- Professional Dual 15-Band stereo graphic equalizer with Constant Q factor.
- Feedback detection system with LED to reveal critical frequencies.
- Durable & accurate 20mm faders for easy level setting of each frequency.
- Range setting selectable between ±6dB or ±12dB to give a gradual variation as required.
- Low frequency cut, EQ in/out, gain range & FBQ switches.
- Dedicated mono XLR subwoofer output with selectable crossover frequency.

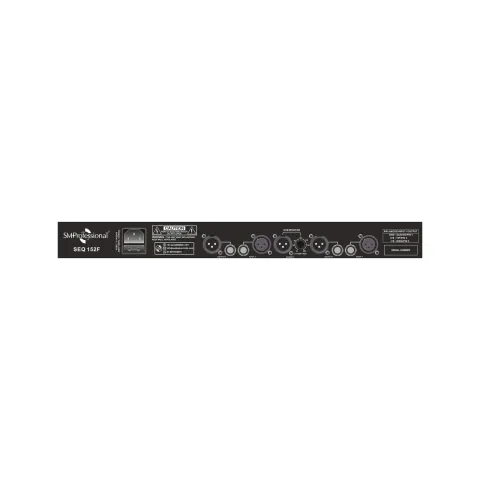

- Balanced XLR and ¼” TRS jack inputs and outputs connectors.
- Ideal to mitigate unpleasant feedback loops, howling and whistling in live sound and install applications.
Specifications, Q&A and videos
| Input Impedance | Balanced 20K Ω |
|---|---|
| Output Impedance | Balanced 600 Ω |
| Input Output Connectors | XLR and TRS |
| Frequency Response | 20Hz-20kHz |
| EQ Center Frequency | 1.6kHz |
| EQ Cut / Boost | ±6dB and ±12dB |
| Subwoofer Frequency | 30Hz - 200Hz |
| Low Cut | 25Hz, -3dB |
| Signal to Noise Ratio | >90dB |
| THD | 0.01% |
| Dimensions (W x D x H) mm | 483 x 170 x 46.2 |
| Net Weight (Kg) | 2.1 |
The SEQ 152F is an SM Professional dual 15-band stereo graphic equalizer in the SEQ Series. The SM Professional SEQ 152F is a high quality dual 15-band stereo graphic equalizer with feedback detection system. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional Dual 15-Band stereo graphic equalizer with Constant Q factor; Feedback detection system with LED to reveal critical frequencies; Durable & accurate 20mm faders for easy level setting of each frequency; Range setting selectable between ±6dB or ±12dB to give a gradual variation as required; Low frequency cut, EQ in/out, gain range & FBQ switches; Dedicated mono XLR subwoofer output with selectable crossover frequency.
The SEQ 152F input impedance is Balanced 20K Ω.
The SEQ 152F output impedance is Balanced 600 Ω.
The SEQ 152F input output connectors is XLR and TRS.
The SEQ 152F frequency response is 20Hz-20kHz.
The SEQ 152F eq center frequency is 1.6kHz.
