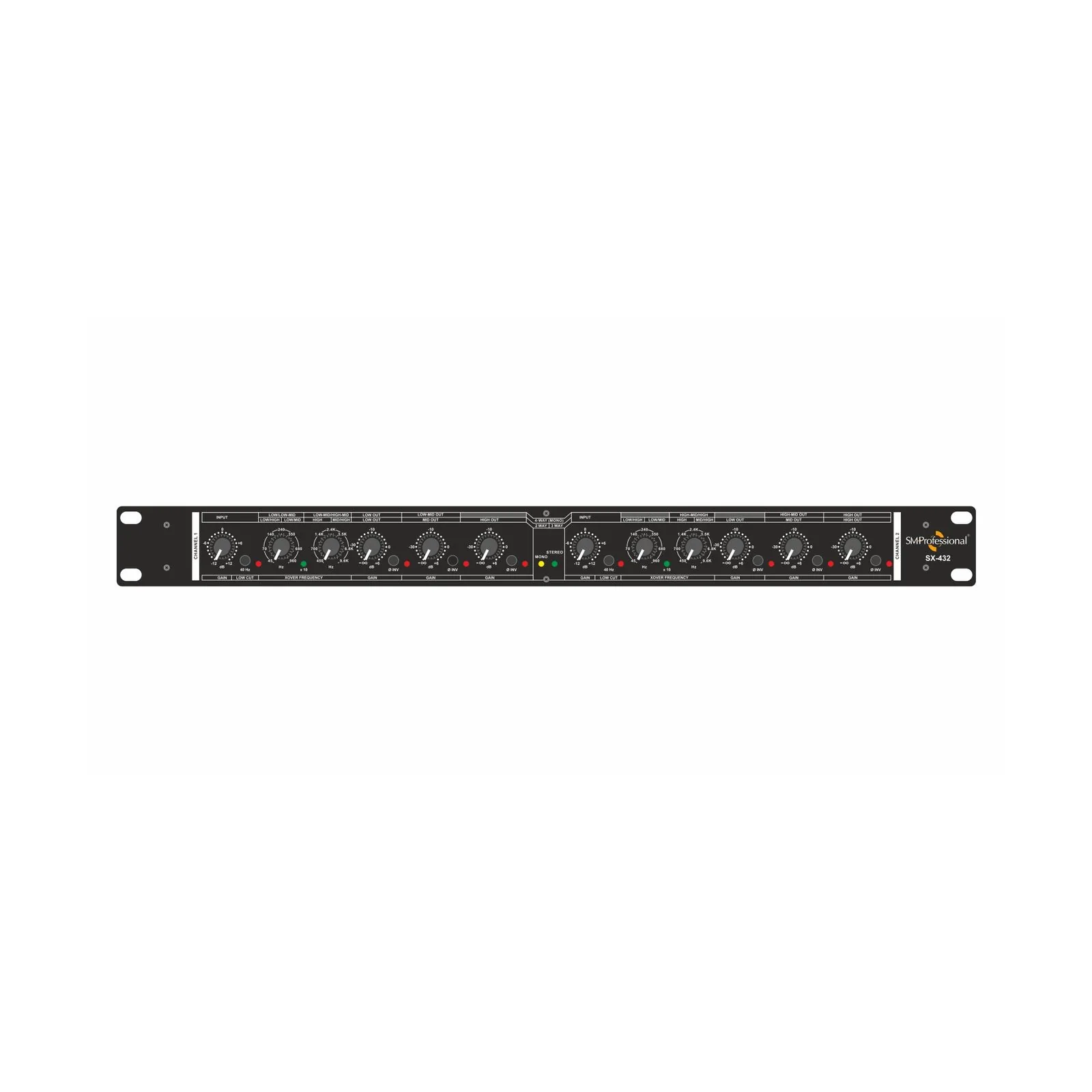

The SM Professional SX 432 is a 2-way/3-way stereo and 4-way mono active crossover.
Featuring accurate 24dB per octave slope premium Linkwitz-Riley filters, summed mono bass outputs and more, the crossover is ideal for a wide range of live, touring, DJ, and install applications.
Features
- Accurate 24dB per octave Linkwitz-Riley slope filters.
- "Low Sum" mono subwoofer output for powerful bass performance.
- Individual level controls for all band outputs.
- 40Hz high pass (low cut) filter and x10 range switch on both channels.
- Individual phase reverse switches for instant phase correction.

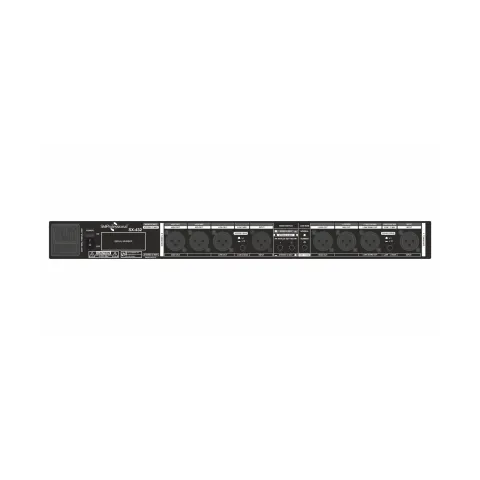

- Balanced XLR inputs and outputs.
- Ideal for live, touring, DJ, and install applications.
Specifications, Q&A and videos
| Input Impedance | Balanced.: 50KΩ / Unbalanced.: 25KΩ |
|---|---|
| Output Level / Impedance | Balanced.: 200KΩ / Unbalanced.: 100KΩ |
| Signal to Noise Ratio | >85dB |
| Crossover Frequency Response | 45Hz–9.6kHz |
| THD | 0.05% |
| Low Cut | -3dB @ 40Hz |
| Input sensitivity | 0dBu |
| Slope (Low, Mid, High) | 24dB/octave |
| Subwoofer slope | 24dB/octave |
| Dimension (W x D X H) mm | 482 x 175 x 44 (1U) |
| Net Weight (Kg) | 1.8 |
The SX 432 is an SM Professional 2-way/3-way stereo and 4-way mono active crossover in the SX Series. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Accurate 24dB per octave Linkwitz-Riley slope filters; "Low Sum" mono subwoofer output for powerful bass performance; Individual level controls for all band outputs; 40Hz high pass (low cut) filter and x10 range switch on both channels; Individual phase reverse switches for instant phase correction; Balanced XLR inputs and outputs.
The SX 432 input impedance is Balanced.: 50KΩ / Unbalanced.: 25KΩ.
The SX 432 output level / impedance is Balanced.: 200KΩ / Unbalanced.: 100KΩ.
The SX 432 signal to noise ratio is >85dB.
The SX 432 crossover frequency response is 45Hz–9.6kHz.
The SX 432 thd is 0.05%.
