Ahuja
N12-MB600Z
- Power
- 600 WATTS
- Series
- LF Speakers
- Category
- Transducers
- Category
- Speaker Components

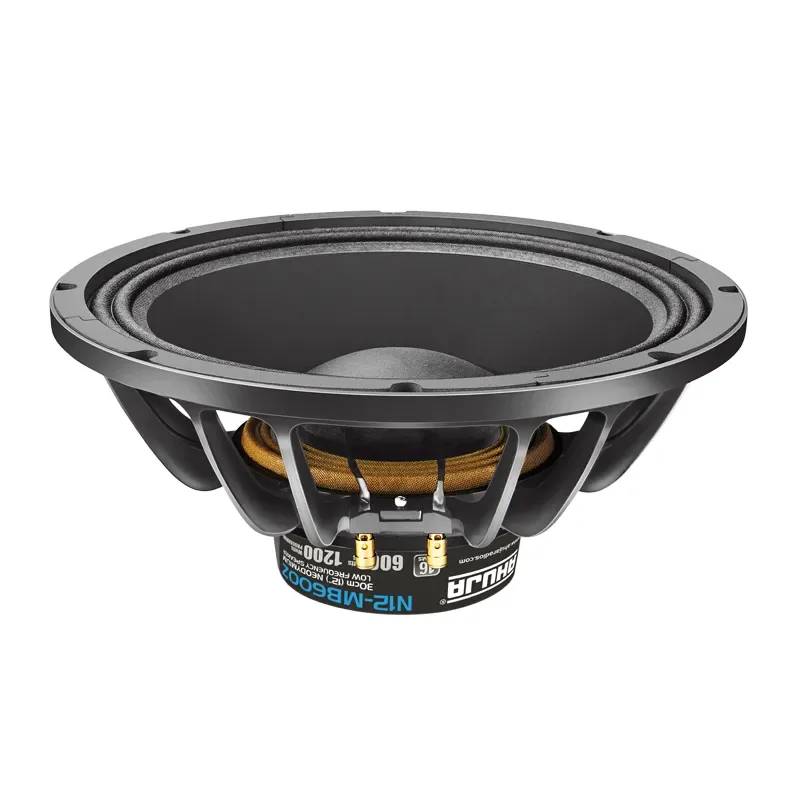

The Ahuja N12-MB600Z is a 600W high power 30.48cm (12”) low frequency speaker with an 8.90 cm (3.5") copper i/o voice coil wound on glass fibre former to withstand high temperature.
It has robust aluminium die-cast frame with heavy duty push terminals.
Features
- High power Neodymium speaker for a variety of bass and mid range applications.
- Robust aluminium die-cast frame with heavy duty push terminals.
- 8.90 cm (3.5") Copper I/O voice coil wound on Glass Fibre former to withstand high temperature.
Specifications, Q&A and videos
| Power Rating | 600W RMS/1200W Programme |
|---|---|
| Nominal Diameter | 305mm (12”) |
| Nominal Impedance | 16Ω |
| Sensitivity (1W/1m ) | 97dB |
| Resonant Frequency (Fs | 58Hz |
| DC resistance (Re) | 14.52Ω |
| Electromagnetic Q (Qes) | 0.45 |
| Mechanical Q (Qms) | 11.9 |
| Total Q (Qts) | 0.43 |
| Compliance Equivalent Volume (VAS) | 50Litr |
| Surface Area of Cone (Sd) | 564cm2 |
| Reference Efficiency (ηo) | 2.11% |
| Voice Coil | 3.5” |
| Overhang (Xmax) | 7.0 mm |
| Moving Mass (Mms) | 66.25gm |
| BL Product (BL) | 25.41TM |
| Coil Inductance (Le) | 2.07mH |
| Overall Diameter | 315.50 mm |
| Depth | 140 mm |
| Baffle Hole Diameter | 283 mm |
| Bolt Mount Diameter (PCD) | 299 mm (8 Bolts) |
| Weight | 4.00kg |
The N12-MB600Z is an Ahuja high power 30.48cm (12”) low frequency speaker in the LF Speakers. The Ahuja N12-MB600Z is a 600W high power 30.48cm (12”) low frequency speaker with an 8.90 cm (3.5") copper i/o voice coil wound on glass fibre former to withstand high. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High power Neodymium speaker for a variety of bass and mid range applications; Robust aluminium die-cast frame with heavy duty push terminals; 8.90 cm (3.5") Copper I/O voice coil wound on Glass Fibre former to withstand high temperature.
The N12-MB600Z nominal diameter is 305mm (12”).
The N12-MB600Z nominal impedance is 16Ω.
The N12-MB600Z sensitivity (1w/1m ) is 97dB.
The N12-MB600Z resonant frequency (fs is 58Hz.
The N12-MB600Z dc resistance (re) is 14.52Ω.
