Ahuja
L12-MB300
- Power
- 300 WATTS
- Series
- LF Speakers
- Category
- Transducers
- Category
- Speaker Components

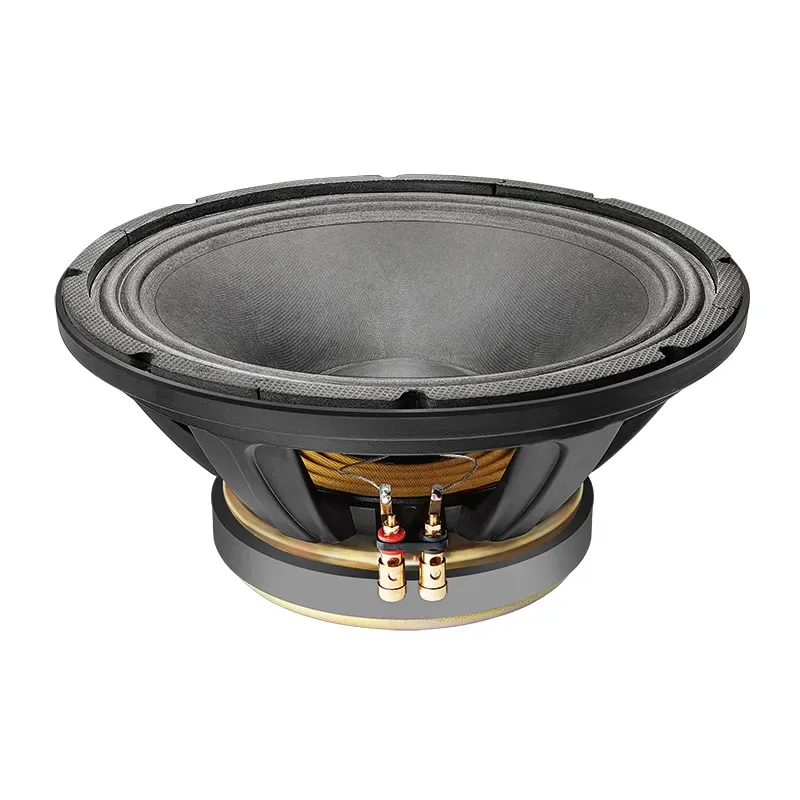

The Ahuja L12-MB300 is a 300W high power 30.48cm (12”) low frequency speaker with a 7.62cm (3") copper clad aluminium wire voice coil wound on glass fibre former. Gold plated push type heavy duty terminals for firm connection.
It has a strong die-cast aluminium frame for reliable performance.
Features
- Exclusively designed for use in high power compact 2-Way speaker systems. Ideal for bass & midrange application in bass reflex cabinets.
- Strong die-cast aluminium frame for reliable performance.
- 7.62cm (3") Copper Clad Aluminium Wire voice coil wound on GLASS FIBRE former.
- Gold plated push type heavy duty terminals for firm connection.
Specifications, Q&A and videos
| Power Rating | 300 Watts RMS |
|---|---|
| Nominal Chassis Diameter | 305 mm (12”) |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W/1m) | 99dB |
| Magnet Weight | 2.31 Kg |
| Resonant Frequency Fs | 48 Hz |
| DC Resistance Re | 5.4 ohms |
| Electromagnetic Q Qes | 0.33 |
| Mechanical Q Qms | 4.94 |
| Total Q Qts | 0.30 |
| Compliance Equivalent Volume VAS | 71.0 Litr |
| Surface Area of Cone Sd | 531 cm2 |
| Reference Efficiency ho | 2.83% |
| Voice Coil Overhang Xmax | 3.5 mm |
| Diaphragm Mass inc Airload Mms | 54.55 gm |
| BI Product BL | 17.11 TM |
| Coil Inductance Le | 0.85 mH |
| Overall Diameter | 322 mm |
| Depth | 128 mm |
| Baffle Hole Diameter, Front Mount | 290 mm |
| Bolt Mount Diameter (PCD) | 305 mm (8 Bolts) |
| Weight | 7.30kg approx. |
The L12-MB300 is an Ahuja high power 30.48cm (12”) low frequency speaker in the LF Speakers. The Ahuja L12-MB300 is a 300W high power 30.48cm (12”) low frequency speaker with a 7.62cm (3") copper clad aluminium wire voice coil wound on glass fibre former. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Exclusively designed for use in high power compact 2-Way speaker systems. Ideal for bass & midrange application in bass reflex cabinets; Strong die-cast aluminium frame for reliable performance; 7.62cm (3") Copper Clad Aluminium Wire voice coil wound on GLASS FIBRE former; Gold plated push type heavy duty terminals for firm connection.
The L12-MB300 nominal chassis diameter is 305 mm (12”).
The L12-MB300 nominal impedance is 8 ohms.
The L12-MB300 sensitivity (1w/1m) is 99dB.
The L12-MB300 magnet weight is 2.31 Kg.
The L12-MB300 resonant frequency fs is 48 Hz.
