Ahuja
L12-MB400
- Power
- 400 WATTS
- Series
- LF Speakers
- Category
- Transducers
- Category
- Speaker Components

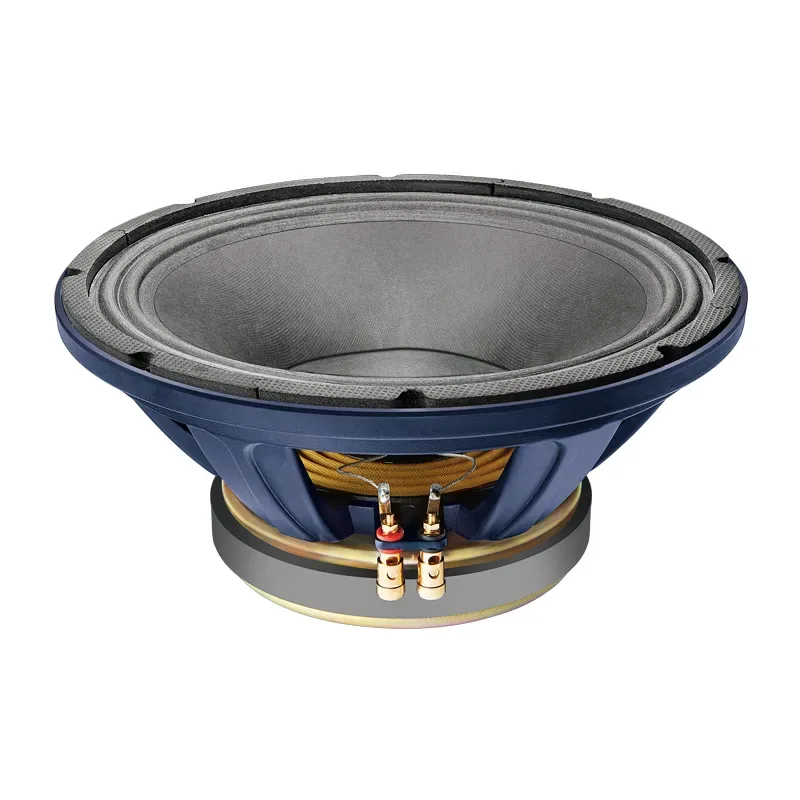

The Ahuja L12-MB400 is a 400W high power 12” low frequency speaker.
It has a strong die-cast aluminium frame for reliable performance.
Features
- Suitable for use in high power compact 2-Way speaker systems. Ideal for bass & midrange application in bass reflex cabinets.
- Strong die-cast aluminium frame for reliable performance.
- 7.62 cm (3") Copper Clad Aluminium Wire voice coil wound on GLASS FIBRE former. Gold plated push type heavy duty terminals for firm connection.
Specifications, Q&A and videos
| Power Rating | 400W RMS/800W Programme |
|---|---|
| Nominal Diameter | 305mm (12”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m) | 99dB |
| Magnet Weight | 2.31kg |
| Resonant FREQUENCY (Fs) | 48Hz |
| DC Resistance (Re) | 5.4Ω |
| Electromagnetic Q (Qes) | 0.33 |
| Mechanical Q (Qms) | 4.94 |
| Total Q (Qts) | 0.30 |
| Compliance Equivalent Volume (VAS) | 71Litr |
| Surface Area of Cone (Sd) | 531cm2 |
| Reference Efficiency (ηo) | 2.83% |
| Voice Coil | 3.0” |
| Overhang (Xmax) | 3.5 mm |
| Moving Mass (Mms) | 54.55gm |
| BL Product (BL) | 17.11TM |
| Coil Inductance (Le) | 0.85mH |
| Overall Diameter | 322 mm |
| Depth | 128 mm |
| Baffle Hole Diameter | 290 mm |
| Bolt Mount Diameter (PCD) | 305 mm (8 Bolts) |
| Weight | 7.30kg |
The L12-MB400 is an Ahuja high power 12” low frequency speaker in the LF Speakers rated 400 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Suitable for use in high power compact 2-Way speaker systems. Ideal for bass & midrange application in bass reflex cabinets; Strong die-cast aluminium frame for reliable performance; 7.62 cm (3") Copper Clad Aluminium Wire voice coil wound on GLASS FIBRE former. Gold plated push type heavy duty terminals for firm connection.
The L12-MB400 nominal diameter is 305mm (12”).
The L12-MB400 nominal impedance is 8Ω.
The L12-MB400 sensitivity (1w/1m) is 99dB.
The L12-MB400 magnet weight is 2.31kg.
The L12-MB400 resonant frequency (fs) is 48Hz.
