Ahuja
L12-MB200
- Power
- 200 WATTS
- Series
- LF Speakers
- Category
- Transducers
- Category
- Speaker Components

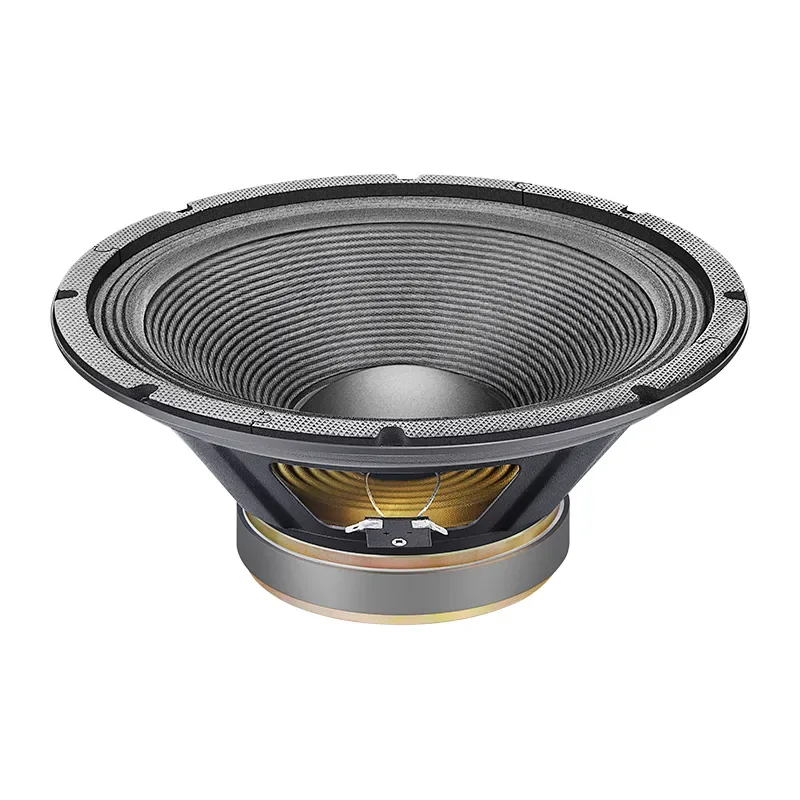

The Ahuja L12-MB200 is a 200W medium power 30.48cm (12”) low frequency speaker with a kapton former 5.08cm (2.0") copper voice coil for withstanding high temp.
It has a robust steel frame and plasticized cloth edge composite cone.
Features
- Specially designed for use in medium power compact 2-Way speaker systems. Suitable for bass-midrange and monitoring applications.
- Robust steel frame and plasticized cloth edge composite cone.
- KAPTON former 5.08cm (2.0") copper voice coil for withstanding high temp.
Specifications, Q&A and videos
| Power Rating | 200W RMS |
|---|---|
| Nominal Diameter | 305mm (12”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 97dB |
| Magnet Weight | 1.16 Kg |
| Resonant Frequencey (Fs) | 45Hz |
| DC Resistance (Re) | 7Ω |
| Electromagnetic Q (Qes) | 0.46 |
| Mechanical Q (Qms) | 4.67 |
| Total Q (Qts) | 0.42 |
| Compliance Equivalent Volume (VAS) | 135Litr |
| Surface Area of Cone (Sd) | 510cm2 |
| Reference Efficiency (ηo) | 1.35% |
| Voice Coil | 2.0” |
| Overhang (Xmax) | 2.5 mm |
| Moving Mass (Mms) | 51.9gm |
| BL Product (BL) | 13.42TM |
| Coil Inductance (Le) | 0.89mH |
| Overall Diameter | 313 mm |
| Depth | 127 mm |
| Baffle Hole Diameter | 285 mm |
| Bolt Mount Diameter (PCD) | 295 mm (8 Bolts) |
| Weight | 4.16kg |
The L12-MB200 is an Ahuja medium power 30.48cm (12”) low frequency speaker in the LF Speakers. The Ahuja L12-MB200 is a 200W medium power 30.48cm (12”) low frequency speaker with a kapton former 5.08cm (2.0") copper voice coil for withstanding high temp. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Specially designed for use in medium power compact 2-Way speaker systems. Suitable for bass-midrange and monitoring applications; Robust steel frame and plasticized cloth edge composite cone; KAPTON former 5.08cm (2.0") copper voice coil for withstanding high temp.
The L12-MB200 nominal diameter is 305mm (12”).
The L12-MB200 nominal impedance is 8Ω.
The L12-MB200 sensitivity (1w/1m ) is 97dB.
The L12-MB200 magnet weight is 1.16 Kg.
The L12-MB200 resonant frequencey (fs) is 45Hz.
