Ahuja
LXA-7600
- Power
- 7600 WATTS
- Channels
- 2 Channels
- Series
- LXA Series
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers

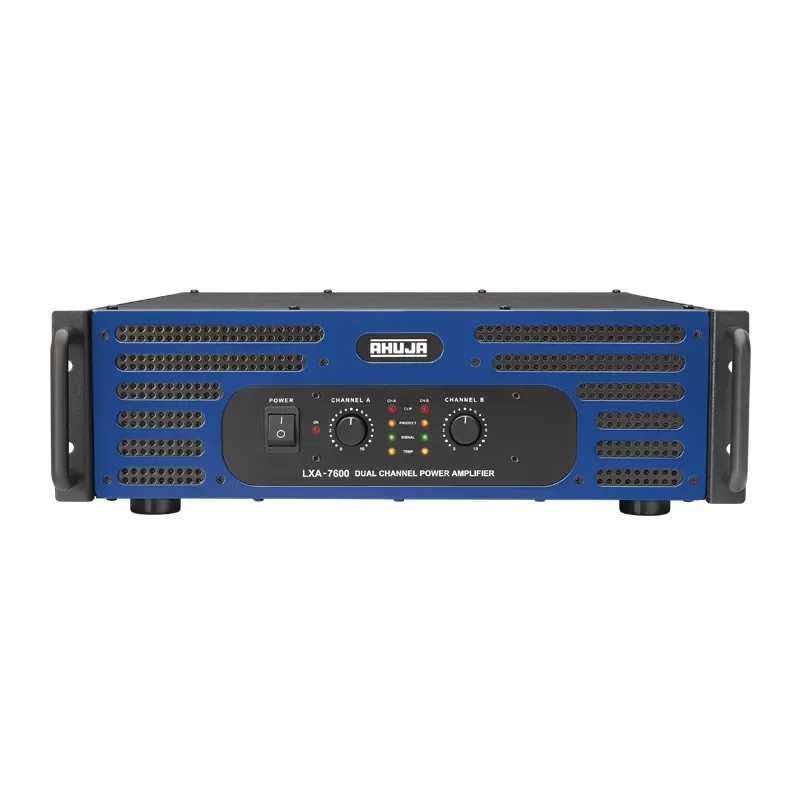

The Ahuja LXA-7600 is a 3800W dual channel PA power amplifier. Rugged and most reliable.
A new benchmark for professionals requiring a sonically superior high power amplifier. Class H operation for optimum efficiency.
Features
- Dual channel direct coupled power amplifier.
- 7600 Watts rated output.
- Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier.
- 80Hz / 120Hz LPF.
- Built-in circuit for HF protection.
- Limiter ON/OFF.
- Two selectable input sensitivities.
- Class H operation for optimum efficiency.
- BIS approved.
Specifications, Q&A and videos
| Stereo/Mono | 8Ω : 1600W + 1600W RMS, 4Ω : 2600W + 2600W RMS, 2Ω : 3800W + 3800W RMS |
|---|---|
| Bridged Output | 8Ω : 5200W RMS, 4Ω : 7600W RMS |
| THD + N | < 1.0% |
| Frequency Response | (-1dB) 20-20,000Hz |
| LOW PASS Filter | 80/120Hz @ 24dB per octave |
| Power Bandwidth (0.5% THD) | 20-20,000Hz |
| Input Sensitivity | 0dBu (775mV) & 4dBu (1.23V) (Selectable) |
| Input Impedance | 10k Unbalanced, 20k Balanced |
| signal to Noise Ratio | > 95dB |
| Channel Separation | > 65dB at 1kHz |
| Damping Factor (8Ω) | > 500 |
| Slew Rate | 35V/µs |
| Protections | Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter (ON/OFF) AC: Magnetic Circuit Protector 20A; ± DC: Fuse 1 x 30A (T 30A L) for each Channel, Fuse 2×3 A (T 3A L) |
| Input Connectors | 2×XLR, Stereo Phone Jack 6.3mm |
| Output Connectors | Speakon 4-Way and heavy duty Binding Post for each channel |
| Cooling | 2×fixed Speed DC Fan and 2 × Variable Speed DC Fan with Temperature Sensing |
| Front Panel Controls | 2×41 Step Level Attenuators |
| Indicators | Power ON, Signal, Clip, Temperature, Protect (Ch. A & B) |
| Power Consumption (Rated) | 9000VA @ 220-240V ~ 50/60Hz |
| Dimensions | W482 × H153 × D605mm |
| Weight | 39.50kg Approx. |
The LXA-7600 is an Ahuja dual channel PA power amplifier in the LXA Series rated 7600 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Dual channel direct coupled power amplifier; 7600 Watts rated output; Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier; 80Hz / 120Hz LPF; Built-in circuit for HF protection; Limiter ON/OFF.
The LXA-7600 stereo/mono is 8Ω : 1600W + 1600W RMS, 4Ω : 2600W + 2600W RMS, 2Ω : 3800W + 3800W RMS.
The LXA-7600 bridged output is 8Ω : 5200W RMS, 4Ω : 7600W RMS.
The LXA-7600 thd + n is < 1.0%.
The LXA-7600 frequency response is (-1dB) 20-20,000Hz.
The LXA-7600 low pass filter is 80/120Hz @ 24dB per octave.
