Ahuja
LXA-2400
- Power
- 2400 WATTS
- Channels
- 2 Channels
- Series
- LXA Series
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers

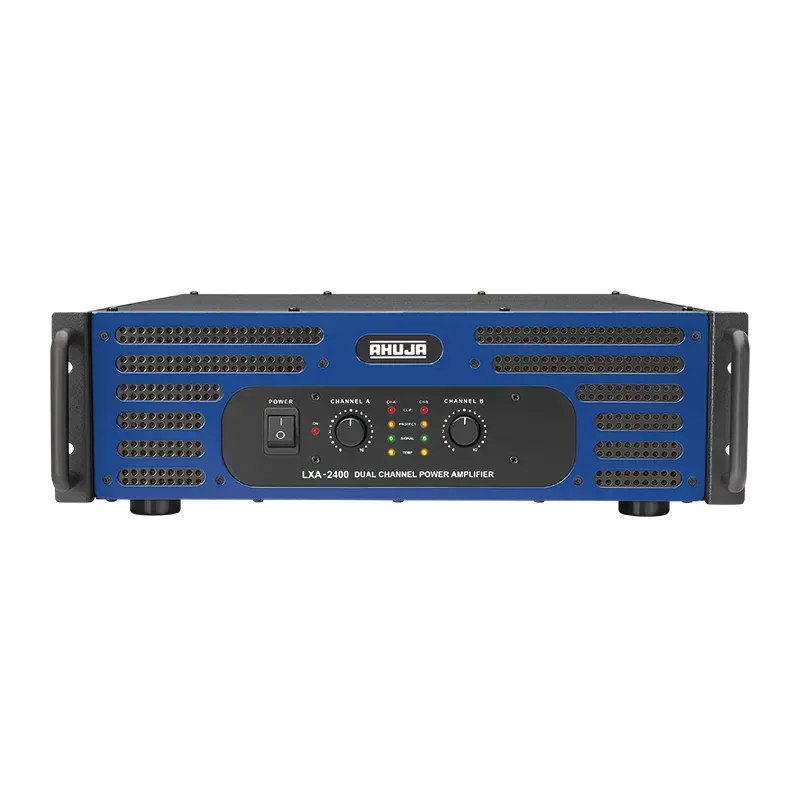

The Ahuja LXA-2400 is a 1200W dual channel PA power amplifier. Rugged and most reliable.
A new benchmark for professionals requiring a sonically superior high power amplifier. Class H operation for optimum efficiency.
Features
- Dual channel direct coupled amplifier.
- 2400 Watts rated output.
- Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier.
- Two selectable input sensitivities.
- Class H operation for optimum efficiency.
Specifications, Q&A and videos
| Stereo/Mono | 8Ω : 600W + 600W RMS, 4Ω : 850W + 850W RMS, 2Ω : 1200W + 1200W RMS |
|---|---|
| Bridged Output | 8Ω : 1700W RMS, 4Ω : 2400W RMS |
| THD + N | < 1.0% |
| Frequency Response (-1dB) | 20-20,000Hz |
| Power Bandwidth (0.5% THD) | 20-20,000Hz |
| Input Sensitivity | 0dBu (775mV) & 4dBu (1.23V) (Selectable) |
| Input Impedance | 10k Unbalanced, 20k Balanced |
| Signal to Noise Ratio | > 95dB |
| Channel Separation | > 65dB at 1kHz |
| Damping Factor (8Ω) | > 500 |
| Slew Rate | 35V/µs |
| Protections | Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter AC: Fuse 20Amp. (T 20A L); ± DC: Fuse 2 x 20Amp. (T 20A L) for each channel Fuse 2×3 Amp. (T 3A L) |
| Input Connectors | 2 × XLR, Stereo Phone Jack 6.3mm |
| Output Connectors | Speakon 4-Way and heavy duty of Binding Post for each channel |
| Cooling | Variable Speed DC Fan with Temperature Sensing |
| Front Panel Controls | 2 × 41 Step Level Attenuators |
| Indicators | Power ON, Signal, Clip, Temperature, Protect (Ch. A & B) |
| Power Consumption (Rated) | 2800VA @ 220-240V ~ 50/60Hz |
| Dimensions | W482 × H153 × D550mm |
| Weight | 28.70kg Approx. |
The LXA-2400 is an Ahuja dual channel PA power amplifier in the LXA Series rated 2400 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Dual channel direct coupled amplifier; 2400 Watts rated output; Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier; Two selectable input sensitivities; Class H operation for optimum efficiency.
The LXA-2400 stereo/mono is 8Ω : 600W + 600W RMS, 4Ω : 850W + 850W RMS, 2Ω : 1200W + 1200W RMS.
The LXA-2400 bridged output is 8Ω : 1700W RMS, 4Ω : 2400W RMS.
The LXA-2400 thd + n is < 1.0%.
The LXA-2400 frequency response (-1db) is 20-20,000Hz.
The LXA-2400 power bandwidth (0.5% thd) is 20-20,000Hz.
