Ahuja
LXA-3200
- Power
- 3200 WATTS
- Channels
- 2 Channels
- Series
- LXA Series
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers

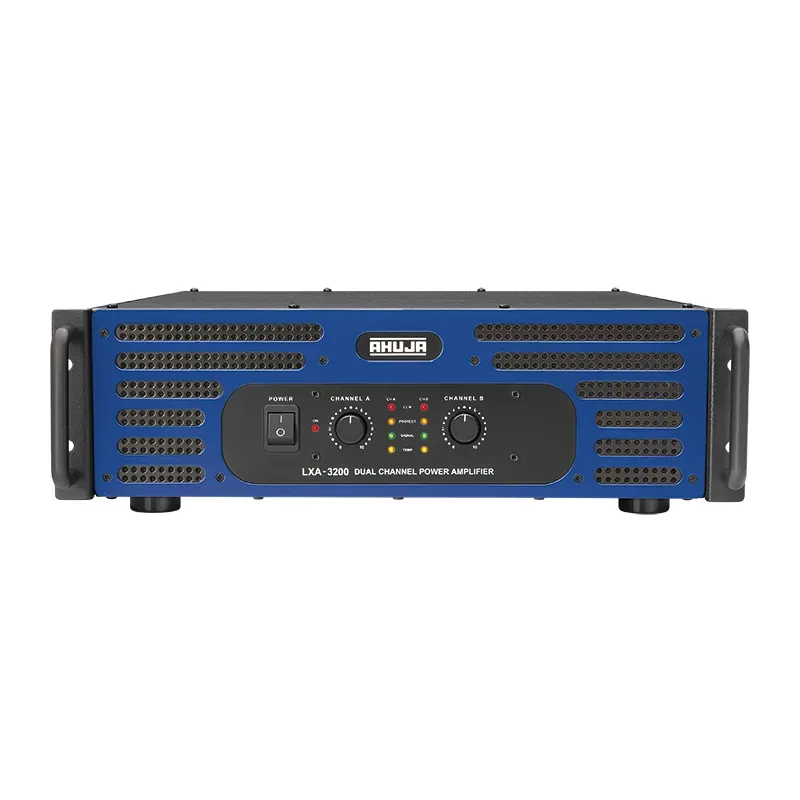

The Ahuja LXA-3200 is a 1600W dual channel PA power amplifier. Rugged, reliable and designed to work continuously under stringent conditions.
Class H operation for optimum efficiency.
Features
- Dual channel direct coupled amplifier.
- 3200 Watts rated output.
- Rugged, reliable and designed to work continuously under stringent conditions
- High fidelity sound.
- Ideal for high end music programmes.
- Two selectable input sensitivities.
- Class H operation for optimum efficiency.
Specifications, Q&A and videos
| Stereo/Mono | 8Ω : 700W + 700W RMS, 4Ω: 1100W + 1100W RMS, 2Ω : 1600W + 1600W RMS |
|---|---|
| Bridged Output | 8Ω : 2200W RMS, 4Ω : 3200W RMS |
| THD + N | < 1.0% |
| Frequency Response (-3dB) | 20-20,000Hz |
| Power Bandwidth (0.5% THD) | 20-20,000Hz |
| Input Sensitivity | 0dBu (775mV), 4dBu (1.23V) (Selectable) |
| Input Impedance | 10k Unbalanced, 20k Balanced |
| Signal to Noise Ratio | > 95dB |
| Channel Separation | > 65dB at 1kHz |
| Damping Factor (8Ω) | > 500 |
| Slew Rate | 35V/µs |
| Protections | Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter AC: Fuse 25Amp. (T 25A L); ± DC: Fuse 2 x 25Amp. (T 25A L) for each channel, Fuse 2×3 Amp. (T 3A L) |
| Input Connectors | 2 × XLR, Stereo Phone Jack 6.3mm |
| Output Connectors | Speakon 4-Way and heavy duty Binding Post for each channel |
| Cooling | Variable Speed DC Fan with Temperature Sensing |
| Front Panel Controls | 2 × 41 Step Level Attenuators |
| Indicators | Power ON, Signal, Clip, Temperature, Protect (Ch. A & B) |
| Power Consumption (Rated) | 3800VA @ 220-240V ~ 50/60Hz |
| Dimensions | W482 × H153 × D550mm |
| Weight | 33.00kg Approx. |
The LXA-3200 is an Ahuja dual channel PA power amplifier in the LXA Series rated 3200 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Dual channel direct coupled amplifier; 3200 Watts rated output; Rugged, reliable and designed to work continuously under stringent conditions; High fidelity sound; Ideal for high end music programmes; Two selectable input sensitivities.
The LXA-3200 stereo/mono is 8Ω : 700W + 700W RMS, 4Ω: 1100W + 1100W RMS, 2Ω : 1600W + 1600W RMS.
The LXA-3200 bridged output is 8Ω : 2200W RMS, 4Ω : 3200W RMS.
The LXA-3200 thd + n is < 1.0%.
The LXA-3200 frequency response (-3db) is 20-20,000Hz.
The LXA-3200 power bandwidth (0.5% thd) is 20-20,000Hz.
