Ahuja

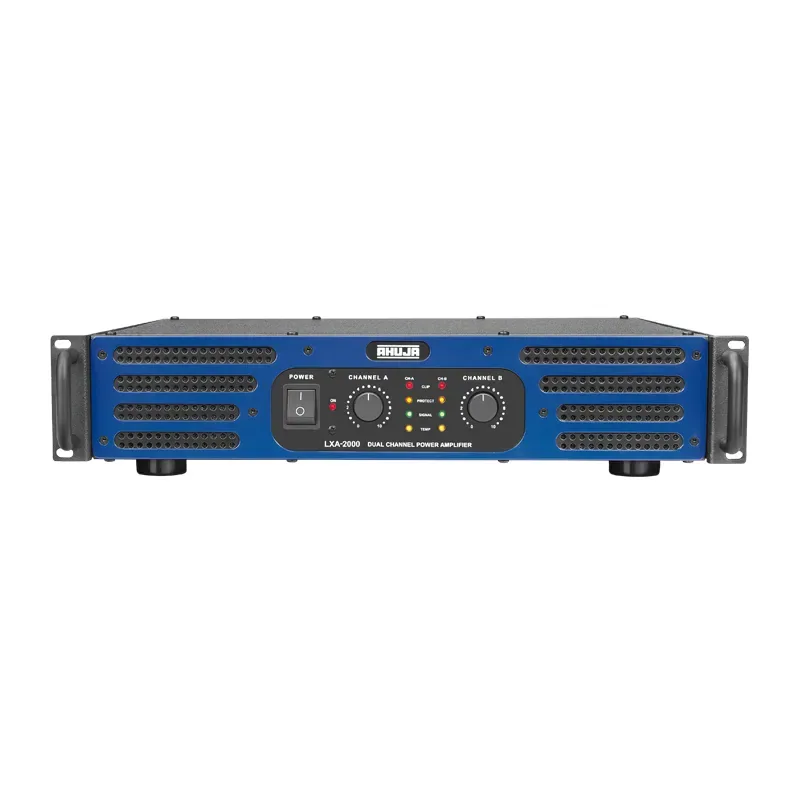

The Ahuja LXA-2000 is a 1000W PA power amplifier. Rugged and most reliable.
A new benchmark for professionals requiring a sonically superior high power amplifier. Class H operation for optimum efficiency.
| Stereo/Mono | 8Ω : 400W + 400W RMS, 4Ω : 700W + 700W RMS, 2Ω : 1000W + 1000W RMS |
|---|---|
| Bridged Output | 8Ω : 1400W RMS, 4Ω : 2000W RMS |
| THD + N | < 1.0% |
| Frequency Response | (-1dB) 20-20,000Hz |
| Power Bandwidth (0.5% THD) | 20-20,000Hz |
| High Pass Filter | 80/120Hz @ 12dB per octave |
| Input Sensitivity | 0dBu (775mV) & 4dBu (1.23V) (Selectable) |
| Input Impedance | 10k Unbalanced, 20k Balanced |
| Signal to Noise Ratio | > 95dB |
| Channel Separation | > 65dB at 1kHz |
| Damping Factor (8Ω) | > 500 |
| Slew Rate | 35V/µs |
| Protections | Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter AC: Fuse 16A (T 16A L); ± DC: Fuse 2×16A (T 16A L) for each channel, ± DC: Fuse 2×2A (T 2A L) (for Fan Supply) |
| Input Connectors | 2×XLR, Stereo Phone Jack 6.3mm |
| Output Connectors | Speakon 4-Way and Heavy duty Binding Post for each channel |
| Cooling | Variable Speed DC Fan with Temperature Sensing |
| Front Panel Controls | 2×41 Step Level Attenuators |
| Indicators | Power ON, Signal, Clip, Temperature, Protect (Ch. A & B) |
| Power Consumption (Rated) | 2300VA @ 220-240V ~ 50/60Hz |
| Dimensions | W482 × H113 × D530mm |
| Weight | 21.90kg Approx. |
The LXA-2000 is an Ahuja PA power amplifier in the LXA Series rated 1000 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.
2000 Watts rated output; Selectable HPF (120Hz / 80Hz / OFF); Two selectable input sensitivities; Class H operation for optimum efficiency; BIS approved.
The LXA-2000 stereo/mono is 8Ω : 400W + 400W RMS, 4Ω : 700W + 700W RMS, 2Ω : 1000W + 1000W RMS.
The LXA-2000 bridged output is 8Ω : 1400W RMS, 4Ω : 2000W RMS.
The LXA-2000 thd + n is < 1.0%.
The LXA-2000 frequency response is (-1dB) 20-20,000Hz.
The LXA-2000 power bandwidth (0.5% thd) is 20-20,000Hz.
