Ahuja

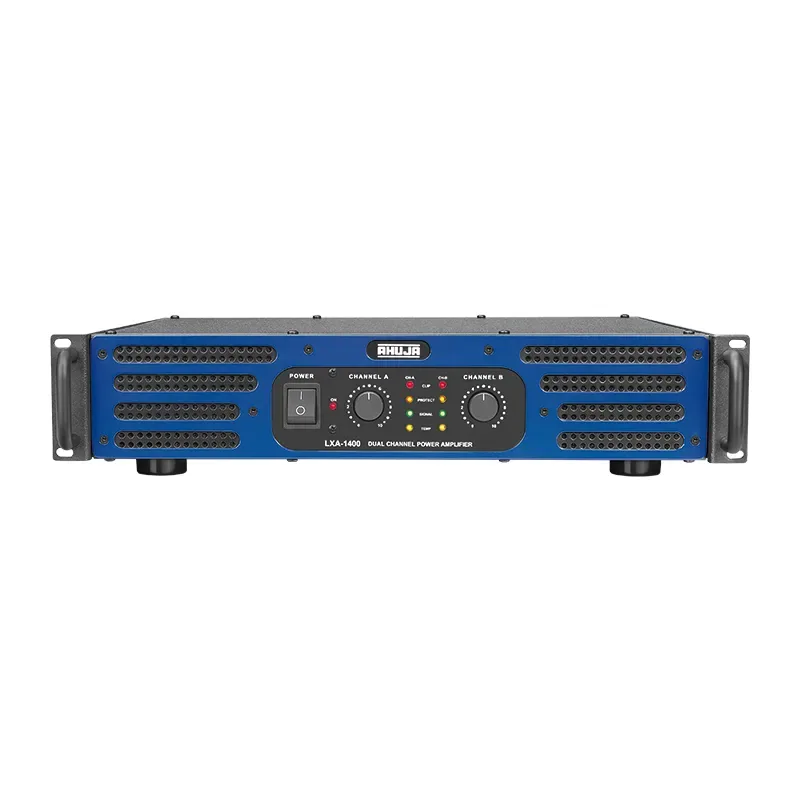

The Ahuja LXA-1400 is a 675W dual channel PA power amplifier. Rugged, reliable and designed to work continuously under stringent conditions.
Ideal for high end music programmes.
| Stereo/Mono | 8Ω : 2 × 250W RMS, 4Ω : 2 × 475W RMS, 2Ω : 2 × 675W RMS |
|---|---|
| Bridged Output | 8Ω : 950W RMS, 4Ω : 1350W RMS |
| THD + N | < 1.0% |
| Frequency Response (-1dB) | 20-20,000Hz |
| Power Bandwidth (0.5% THD) | 20-20,000Hz |
| Input Sensitivity | 0dBm (775mV)/1.23V (selectable) |
| Input Impedance | 10k Unbalanced, 20k Balanced |
| S / N Ratio | > 95dB |
| Channel Separation | > 65dB at 1kHz |
| Damping Factor (8Ω) | > 500 |
| Slew Rate | 35V/µs |
| Protections | Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter, AC: Fuse 10Amp. (T 10A L); ± DC: Fuse 2 x 10Amp. (T 10A L) for each zone, ± DC: Fuse 2 x 2Amp. (for fan supply) |
| Input Connectors | 2 × XLR, Stereo Phone Jack 6.3mm |
| Output Connectors | Speakon 4-Way, Heavy duty Binding Post for each channel |
| Cooling | Variable Speed DC Fan with Temperature Sensing |
| Front Panel Controls | 2 × 21 Step Level Attenuators |
| Indicators | Power ON, Signal, Clip, Temperatures, Protect (Ch. A & B) |
| Power Consumption (Rated) | 1800VA @ 220-240V~50/60Hz |
| Dimensions | W482 × H113 × D460 mm |
| Weight | 14.70kg Approx. |
The LXA-1400 is an Ahuja dual channel PA power amplifier in the LXA Series rated 675 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.
Dual channel direct coupled amplifier; 1350 Watts rated output; High fidelity sound; Ideal for high end music programmes.
The LXA-1400 stereo/mono is 8Ω : 2 × 250W RMS, 4Ω : 2 × 475W RMS, 2Ω : 2 × 675W RMS.
The LXA-1400 bridged output is 8Ω : 950W RMS, 4Ω : 1350W RMS.
The LXA-1400 thd + n is < 1.0%.
The LXA-1400 frequency response (-1db) is 20-20,000Hz.
The LXA-1400 power bandwidth (0.5% thd) is 20-20,000Hz.
