Ahuja

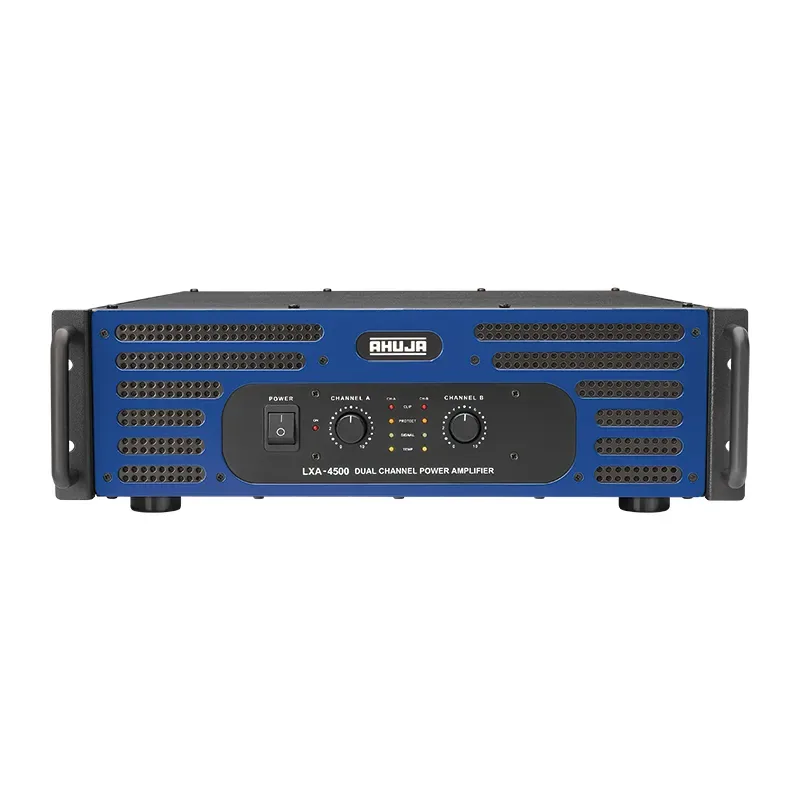

The Ahuja LXA-4500 is a 2250W PA power amplifier. Rugged and most reliable.
A new benchmark for professionals requiring a sonically superior high power amplifier. Class H operation for optimum efficiency.
| Stereo/Mono | 8Ω : 1000W + 1000W RMS, 4Ω : 1550W + 1550W RMS, 2Ω : 2250W + 2250W RMS |
|---|---|
| Bridged Output | 8Ω : 3100W RMS, 4Ω : 4500W RMS |
| THD + N | < 1.0% |
| Frequency Response (-1dB) | 20-20,000Hz |
| Low Pass Filter | 80/120Hz @ 24dB per octave |
| Power Bandwidth (0.5% THD) | 20-20,000Hz |
| Input Sensitivity | 0dBu (775mV) & 4dBu (1.23V) (Selectable) |
| Input Impedance | 10k Unbalanced, 20k Balanced |
| signal to noise Ratio | > 95dB |
| Channel Separation | > 65dB at 1kHz |
| Damping Factor (8Ω) | > 500 |
| Slew Rate | 35V/µs |
| Protections | Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter (ON/OFF) AC: Circuit Protector 20A; ± DC: Fuse 2 x 25Amp. (T 25A L) for each zone, Fuse 2×3 Amp. (T 3A L) |
| Input Connectors | 2 × XLR, Stereo Phone Jack 6.3mm |
| Output Connectors | Speakon 4-Way and heavy duty Binding Post for each channel |
| Cooling | Variable Speed DC Fan with Temperature Sensing |
| Front Panel Controls | 2 × 41 Step Level Attenuators |
| Indicators | Power ON, Signal, Clip, Temperature, Protect (Ch. A & B |
| Power Consumption (Rated) | 5400VA @ 220-240V ~ 50/60Hz |
| Dimensions | W482 × H153 × D580mm |
| Weight | 36.50kg Approx. |
The LXA-4500 is an Ahuja PA power amplifier in the LXA Series rated 2250 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.
4500 Watts rated output; 80Hz / 120Hz LPF; Built-in circuit for HF protection; Limiter ON/OFF; Two selectable input sensitivities; Class H operation for optimum efficiency.
The LXA-4500 stereo/mono is 8Ω : 1000W + 1000W RMS, 4Ω : 1550W + 1550W RMS, 2Ω : 2250W + 2250W RMS.
The LXA-4500 bridged output is 8Ω : 3100W RMS, 4Ω : 4500W RMS.
The LXA-4500 thd + n is < 1.0%.
The LXA-4500 frequency response (-1db) is 20-20,000Hz.
The LXA-4500 low pass filter is 80/120Hz @ 24dB per octave.
