Ahuja
L15-MB700
- Power
- 700 WATTS
- Series
- LF Speakers
- Category
- Transducers
- Category
- Speaker Components

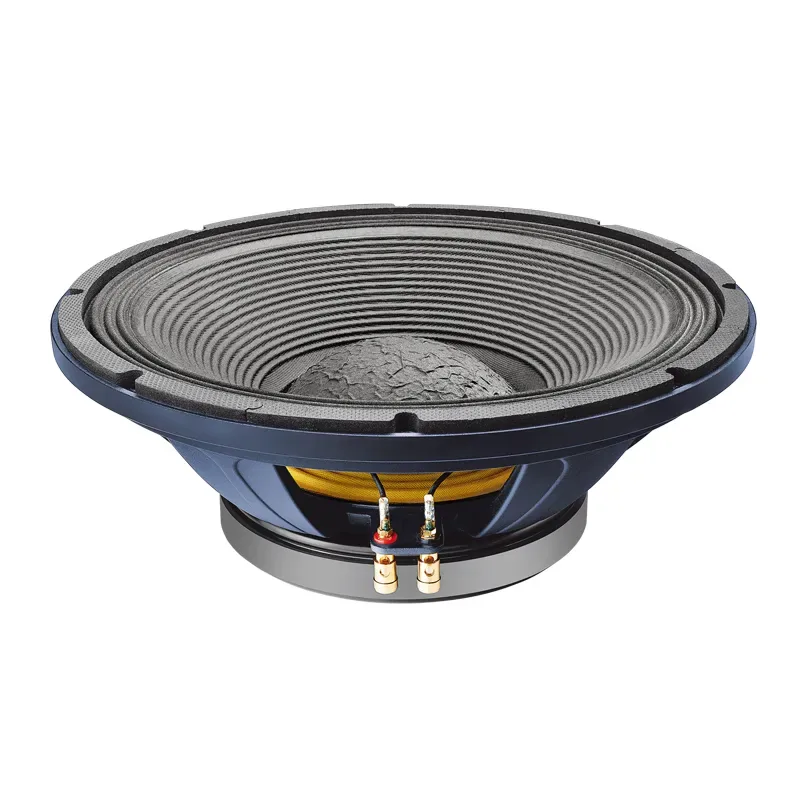

The Ahuja L15-MB700 is a 700W high power 38.1cm (15”) low frequency speaker with a 10.16 cm (4") edge-wound aluminium wire voice coil for higher SPL. It has aluminium die-cast frame with gold plated push type heavy duty terminals.
GLASS FIBRE former for withstanding high temperature.
Features
- Excellent bass and mid-bass response, high power handling capacity.
- Aluminium die-cast frame with gold plated push type heavy duty terminals.
- GLASS FIBRE former for withstanding high temperature.
- 10.16 cm (4") Edge-wound aluminium wire voice coil for higher SPL.
Specifications, Q&A and videos
| Power Rating | 700W RMS/1400W Programme |
|---|---|
| Nominal Diameter | 380 mm (15”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 97dB |
| Magnet Weight | 2.85kg |
| Resonant Frequency (Fs) | 50Hz |
| DC Resistance (Re) | 5.1Ω |
| Electromagnetic Q (Qes) | 0.32 |
| Mechanical Q (Qms) | 5.91 |
| Total Q (Qts) | 0.30 |
| Compliance Equivalent Volume (VAS) | 109Litr |
| Surface Area of Cone | (Sd) 830cm2 |
| Reference Efficiency (ηo) | 3.5% |
| Voice Coil | 4.0” |
| Overhang (Xmax) | 3.6 mm |
| Moving Mass (Mms) | 97.60gm |
| BL Product (BL) | 22.92TM |
| Coil Inductance (Le) | 1.60mH |
| Overall Diameter | 390 mm |
| Depth | 142 mm |
| Baffle Hole Diameter | 357 mm |
| Bolt Mount Diameter (PCD) | 372 mm (8 Bolts) |
| Weight | 11.00kg |
The L15-MB700 is an Ahuja high power 38.1cm (15”) low frequency speaker in the LF Speakers. The Ahuja L15-MB700 is a 700W high power 38.1cm (15”) low frequency speaker with a 10.16 cm (4") edge-wound aluminium wire voice coil for higher SPL. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Excellent bass and mid-bass response, high power handling capacity; Aluminium die-cast frame with gold plated push type heavy duty terminals; GLASS FIBRE former for withstanding high temperature; 10.16 cm (4") Edge-wound aluminium wire voice coil for higher SPL.
The L15-MB700 nominal diameter is 380 mm (15”).
The L15-MB700 nominal impedance is 8Ω.
The L15-MB700 sensitivity (1w/1m ) is 97dB.
The L15-MB700 magnet weight is 2.85kg.
The L15-MB700 resonant frequency (fs) is 50Hz.
