Ahuja

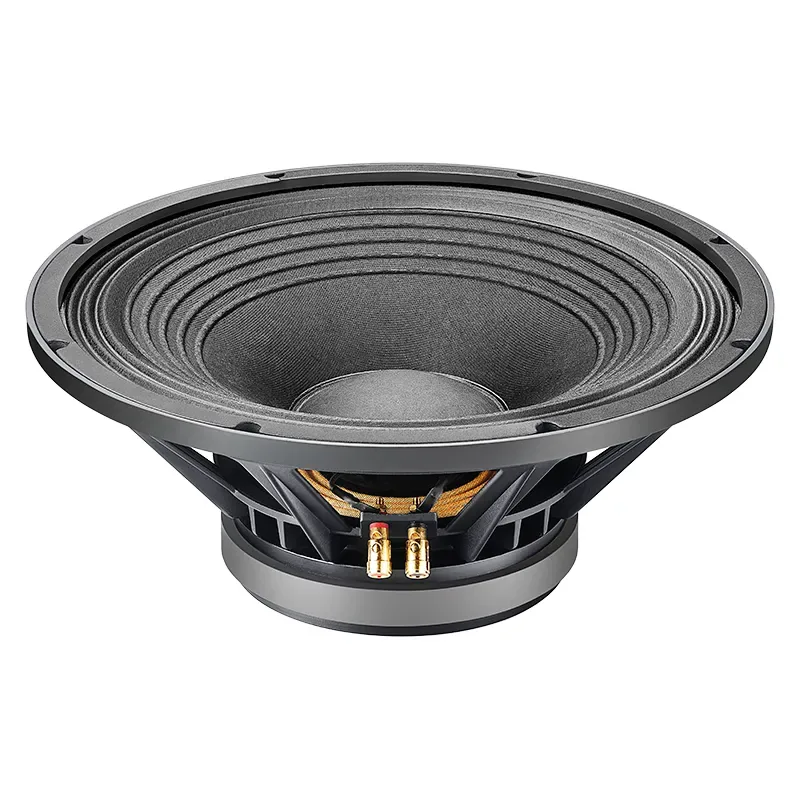

The Ahuja L15-MB400 is a 400W high power 38. 1cm (15”) low frequency speaker.
Ideal for high power 2-Way Speaker Systems.
| Power Rating | 400W RMS |
|---|---|
| Nominal Diameter | 380mm (15”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 99dB |
| Magnet Weight | 2.31kg |
| Resonant Frequencey (Fs) | 40Hz |
| DC resistance (Re) | 6.5Ω |
| Electromagnetic Q (Qes) | 0.41 |
| Mechanical Q (Qms) | 8.0 |
| Total Q (Qts) | 0.39 |
| Compliance Equivalent Volume (VAS) | 168Litr |
| Surface Area of Cone (Sd) | 855cm2 |
| Reference Efficiency (ηo) | 2.72% |
| Voice Coil | 3.0” |
| Moving Mass (Mms) | 91gm |
| BL Product (BL) | 18TM |
| Coil Inductance (Le) | 1.1mH |
| Overall Diameter | 389.5 mm |
| Depth | 157 mm |
| Baffle Hole Diameter | 350 mm |
| Bolt Mount Diameter (PCD) | 369 mm (8 Bolts) |
| Weight | 7.8kg |
The L15-MB400 is an Ahuja high power 38.1cm (15”) low frequency speaker in the LF Speakers rated 400 WATTS. The Ahuja L15-MB400 is a 400W high power 38. Available from Mansukhlal Sales Corp, an authorized dealer.
Triple roll, exponential cone geometry; High temperature copper clad aluminium wire voice coil wound on polyamide former.
The L15-MB400 nominal diameter is 380mm (15”).
The L15-MB400 nominal impedance is 8Ω.
The L15-MB400 sensitivity (1w/1m ) is 99dB.
The L15-MB400 magnet weight is 2.31kg.
The L15-MB400 resonant frequencey (fs) is 40Hz.
