Ahuja
L15-MB550
- Power
- 550 WATTS
- Series
- LF Speakers
- Category
- Transducers
- Category
- Speaker Components

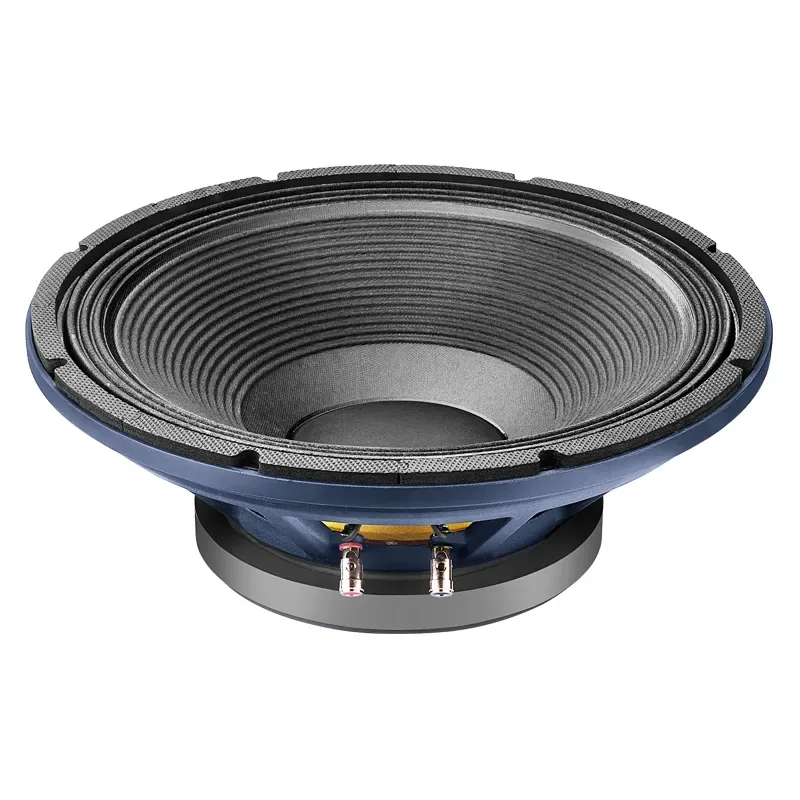

The Ahuja L15-MB550 is a 550W high power 38.1cm (15”) low frequency speaker with a 10.16 cm (4") edge-wound copper wire voice coil for higher SPL. It has aluminium die-cast frame with gold plated push type heavy duty terminals.
GLASS FIBRE former for withstanding high temperature.
Features
- Extended low frequency, ideal for Cinema Halls and for use in professional high power full range speaker systems.
- Aluminium die-cast frame with gold plated push type heavy duty terminals.
- GLASS FIBRE former for withstanding high temperature.
- 10.16 cm (4") Edge-wound copper wire voice coil for higher SPL.
Specifications, Q&A and videos
| Power Rating | 550W RMS/1100W Programme |
|---|---|
| Nominal Diameter | 380mm (15”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 97dB |
| Magnet Weight | 2.85kg |
| Resonant Frequencey (Fs) | 33Hz |
| DC resistance (Re) | 5Ω |
| Electromagnetic Q (Qes) | 0.34 |
| Mechanical Q (Qms) | 4.32 |
| Total Q (Qts) | 0.32 |
| Compliance Equivalent Volume (VAS) | 221Litr |
| Surface Area of Cone (Sd) | 830cm2 |
| Reference Efficiency (ηo) | 2.28% |
| Voice Coil | 4.0” |
| Moving Mass (Mms) | 107.17gm |
| BL Product (BL) | 18TM |
| Coil Inductance (Le) | 1.09mH |
| Overall Diameter | 387 mm |
| Depth | 158 mm |
| Baffle Hole Diameter | 354 mm |
| Bolt Mount Diameter (PCD) | 369 mm (8 Bolts) |
| Weight | 9.00kg |
The L15-MB550 is an Ahuja high power 38.1cm (15”) low frequency speaker in the LF Speakers. The Ahuja L15-MB550 is a 550W high power 38.1cm (15”) low frequency speaker with a 10.16 cm (4") edge-wound copper wire voice coil for higher SPL. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Extended low frequency, ideal for Cinema Halls and for use in professional high power full range speaker systems; Aluminium die-cast frame with gold plated push type heavy duty terminals; GLASS FIBRE former for withstanding high temperature; 10.16 cm (4") Edge-wound copper wire voice coil for higher SPL.
The L15-MB550 nominal diameter is 380mm (15”).
The L15-MB550 nominal impedance is 8Ω.
The L15-MB550 sensitivity (1w/1m ) is 97dB.
The L15-MB550 magnet weight is 2.85kg.
The L15-MB550 resonant frequencey (fs) is 33Hz.
