Ahuja
FMX-212PRO
- Series
- FMX Mixers
- Category
- Mixers
- Category
- Compact Mixers

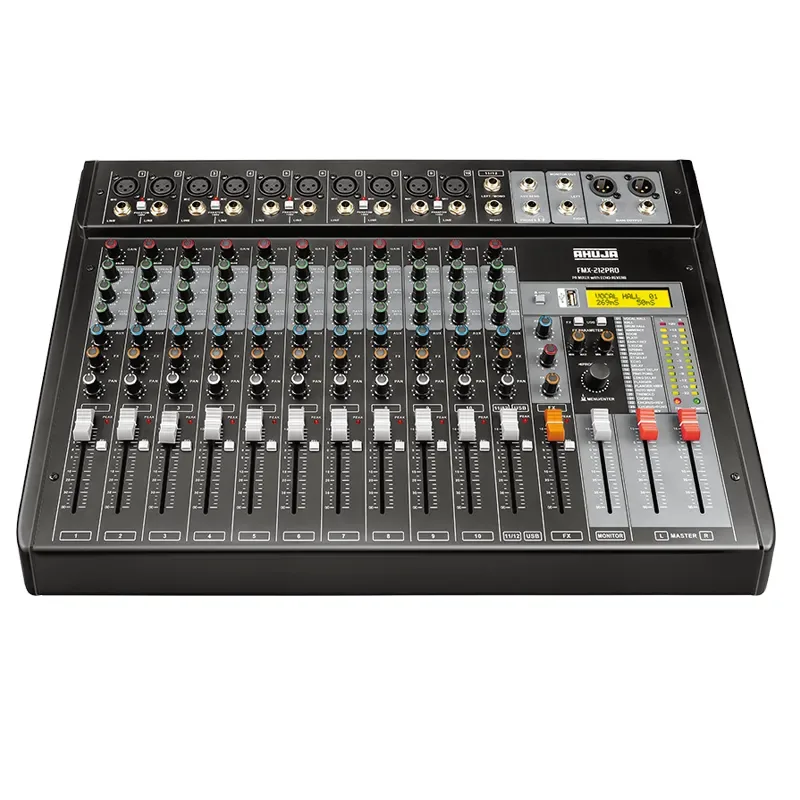

The Ahuja FMX-212PRO is a PA analog mixer. Balanced Left and Right MAIN Mix outputs through M/XLR connectors as well as 6.3mm (1/4") stereo phone jack sockets.
Built-in digital MP3 player with recording and BT functions.
Features
- Professional mixer with most versatile features in a compact & aesthetically superior construction.
- 10 MIC and 10 LINE Balanced Mono inputs with enhanced headroom. One STEREO Balanced input.
- Built-in digital MP3 player with recording & BT functions.
- Digital multi EFFECTS processor with 24 built-in effects.
- LCD display for viewing the EFFECTS/USB settings.
- All MIC inputs are through 3 pin F/XLR connectors.
- All LINE & STEREO inputs are through 6.3mm (1/4") stereo phone jack sockets.
- All MIC inputs are available with 48V phantom supply, with ON/OFF switch for every two MIC inputs.
- Each input channel has a GAIN control, 3 band active EQ controls, AUX, FX and PAN control.
- The STEREO channel has a GAIN control, 3 band active EQ control, AUX, FX and PAN control.
- Peak LED for signal clipping indication. PFL switch for each channel.
- Balanced Left & Right MAIN Mix outputs through M/XLR connectors as well as 6.3mm (1/4") stereo phone jack sockets.
- Monitor L&R outputs through 6.3mm (1/4") phone jack sockets and individual fader control.
- Easy and accurate monitoring of Left & Right output levels through individual 12 segment LED array.
- Headphone output with Phones Control for output monitoring.
- Operates on 240V 50Hz AC mains.
Specifications, Q&A and videos
| Impedance/Gain | 2kΩ Balanced/65dB |
|---|---|
| THD | <0.08% |
| Frequency Response | 25Hz - 20kHz (+0, -1dB) |
| Treble/Mid/Bass | ±12dB at 12kHz/2.5kHz/80Hz |
| Digital Player | MP3 Player/Recorder with USB Reader, Bluetooth |
| Nominal/Max Level | 4dBu/21dBu (1.22V/9V) |
| Output Impedance | 600Ω |
| Headphone Output | 200mV at 8W, THD <1% |
| S/N Ratio | >80dB |
| Clip LED Indication | 4 dB prior to true clip |
| Power Supply | 220-240V, 50/60Hz |
| Dimensions | W522 × H135 × D385mm |
| Weight | 5.45kg Approx. |
The FMX-212PRO is an Ahuja PA analog mixer in the FMX Mixers. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional mixer with most versatile features in a compact & aesthetically superior construction; 10 MIC and 10 LINE Balanced Mono inputs with enhanced headroom. One STEREO Balanced input; Built-in digital MP3 player with recording & BT functions; Digital multi EFFECTS processor with 24 built-in effects; LCD display for viewing the EFFECTS/USB settings; All MIC inputs are through 3 pin F/XLR connectors.
The FMX-212PRO impedance/gain is 2kΩ Balanced/65dB.
The FMX-212PRO thd is <0.08%.
The FMX-212PRO frequency response is 25Hz - 20kHz (+0, -1dB).
The FMX-212PRO treble/mid/bass is ±12dB at 12kHz/2.5kHz/80Hz.
The FMX-212PRO digital player is MP3 Player/Recorder with USB Reader, Bluetooth.
