Ahuja
FMX-106
- Channels
- 6 Channels
- Series
- FMX Mixers
- Category
- Mixers
- Category
- Compact Mixers

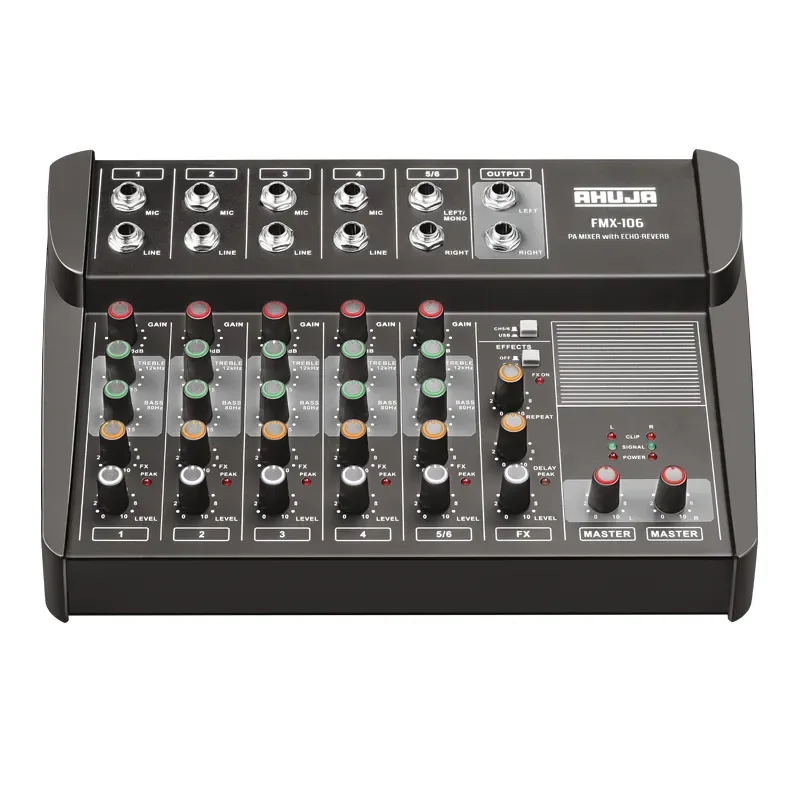

The Ahuja FMX-106 is a 6-channel PA analog mixer. Upto four low impedance microphones and Line level signal sources can be connected in either balanced or unbalanced configuration, through a 6.3 mm (1/4") stereo jack socket.
Each channel has a GAIN control for optimum adjustment of the MIC and LINE input sensitivities.
Features
- Compact and reliable professional PA Mixer which is aesthetically superior and easily portable.
- Upto four low impedance microphones and Line level signal sources can be connected in either balanced or unbalanced configuration, through a 6.3 mm (1/4") stereo jack socket.
- Each channel has a GAIN control for optimum adjustment of the MIC & LINE input sensitivities.
- Active BASS & TREBLE controls in each channel for desired equalisation of the input signal.
- Separate FX (effects) level control for each input channel.
- Stereo input channel is provided with a GAIN control, 2 band EQ, FX & LEVEL Controls.
- Built-in digital effects processor with DELAY, REPEAT and LEVEL controls.
- Line level LEFT & RIGHT outputs through 6.3 mm (1/4") stereo jack sockets.
- Individual SIGNAL & CLIP LEDs for optimum setting of signal levels.
Specifications, Q&A and videos
| MIC Input (Impedance/Gain) | 2kΩ Balanced/65dB, 1kΩ Unbalanced/65dB |
|---|---|
| LINE Input (Impedance/Gain) | 20kΩ Balanced/45dB, 10kΩ Unbalanced/45dB |
| Distortion | < 0.1% |
| Frequency Response | 25Hz-20 kHz (-1dB) |
| Tone Controls | Bass: ±15dB at 80Hz, Treble: ±15dB at 12kHz |
| Output | Line Output HI: 0dBu / +21dBu (775mV/9V) |
| Delay System | Digital Signal Processing |
| Delay Range Settings | Variable from 20 to 300ms |
| Signal to Noise Ratio | > 68dB |
| Power Supply | AC: 220-240v 50/60Hz |
| Dimensions | W281 x H75 x D210 mm |
| Weight | 1.60kg |
The FMX-106 is an Ahuja 6-channel PA analog mixer in the FMX Mixers. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Compact and reliable professional PA Mixer which is aesthetically superior and easily portable; Upto four low impedance microphones and Line level signal sources can be connected in either balanced or unbalanced configuration, through a 6.3 mm (1/4") stereo jack socket; Each channel has a GAIN control for optimum adjustment of the MIC & LINE input sensitivities; Active BASS & TREBLE controls in each channel for desired equalisation of the input signal; Separate FX (effects) level control for each input channel; Stereo input channel is provided with a GAIN control, 2 band EQ, FX & LEVEL Controls.
The FMX-106 mic input (impedance/gain) is 2kΩ Balanced/65dB, 1kΩ Unbalanced/65dB.
The FMX-106 line input (impedance/gain) is 20kΩ Balanced/45dB, 10kΩ Unbalanced/45dB.
The FMX-106 distortion is < 0.1%.
The FMX-106 frequency response is 25Hz-20 kHz (-1dB).
The FMX-106 tone controls is Bass: ±15dB at 80Hz, Treble: ±15dB at 12kHz.
