Ahuja
FMX-106DP
- Series
- FMX Mixers
- Category
- Mixers
- Category
- Compact Mixers

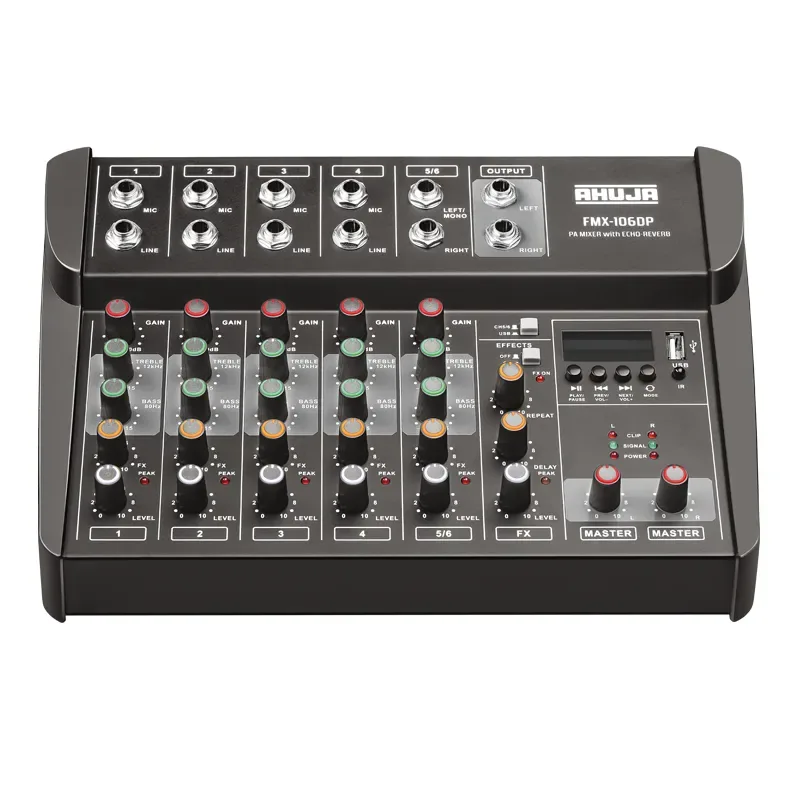

The Ahuja FMX-106DP is a PA analog mixer. MP3 digital player with recording, playback through USB and Bluetooth facility.
Upto four low impedance microphones and Line level signal sources can be connected in either balanced or unbalanced configuration, through a 6.3 mm (1/4") stereo jack socket.
Features
- Compact and reliable professional PA Mixer which is aesthetically superior and easily portable.
- Upto four low impedance microphones and Line level signal sources can be connected in either balanced or unbalanced configuration, through a 6.3 mm (1/4") stereo jack socket.
- Each channel has a GAIN control for optimum adjustment of the MIC & LINE input sensitivities.
- Active BASS & TREBLE controls in each channel for desired equalisation of the input signal.
- Separate FX (effects) level control for each input channel.
- MP3 digital player with recording, playback through USB & Bluetooth facility.
- Stereo input channel is provided with a GAIN control, 2 band EQ, FX & LEVEL Controls.
- Built-in digital effects processor with DELAY, REPEAT and LEVEL controls.
- Line level LEFT & RIGHT outputs through 6.3 mm (1/4") stereo jack sockets.
- Individual SIGNAL & CLIP LEDs for optimum setting of signal levels.
Specifications, Q&A and videos
| MIC Input (Impedance/Gain) | 2kΩ Balanced/65dB, 1kΩ Unbalanced/65dB |
|---|---|
| LINE Input (Impedance/Gain) | 20kΩ Balanced/45dB, 10kΩ Unbalanced/45dB |
| Distortion | < 0.1% |
| Frequency Response | 25Hz-20 kHz (-1dB) |
| Tone Controls | Line Output HI: 0dBu/+21dBu (775mV/9V) |
| Delay System | Digital Signal Processing |
| Delay Range Settings | Variable from 20 to 300ms |
| Digital Player | MP3 Player/Recorder with USB Reader, Bluetooth |
| Signal to Noise Ratio | > 68dB |
| Power Supply | AC: 220-240v 50/60Hz |
| Dimensions | W281 x H75 x D210 mm |
| Weight | 1.60kg |
The FMX-106DP is an Ahuja PA analog mixer in the FMX Mixers. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Compact and reliable professional PA Mixer which is aesthetically superior and easily portable; Upto four low impedance microphones and Line level signal sources can be connected in either balanced or unbalanced configuration, through a 6.3 mm (1/4") stereo jack socket; Each channel has a GAIN control for optimum adjustment of the MIC & LINE input sensitivities; Active BASS & TREBLE controls in each channel for desired equalisation of the input signal; Separate FX (effects) level control for each input channel; MP3 digital player with recording, playback through USB & Bluetooth facility.
The FMX-106DP mic input (impedance/gain) is 2kΩ Balanced/65dB, 1kΩ Unbalanced/65dB.
The FMX-106DP line input (impedance/gain) is 20kΩ Balanced/45dB, 10kΩ Unbalanced/45dB.
The FMX-106DP distortion is < 0.1%.
The FMX-106DP frequency response is 25Hz-20 kHz (-1dB).
The FMX-106DP tone controls is Line Output HI: 0dBu/+21dBu (775mV/9V).
