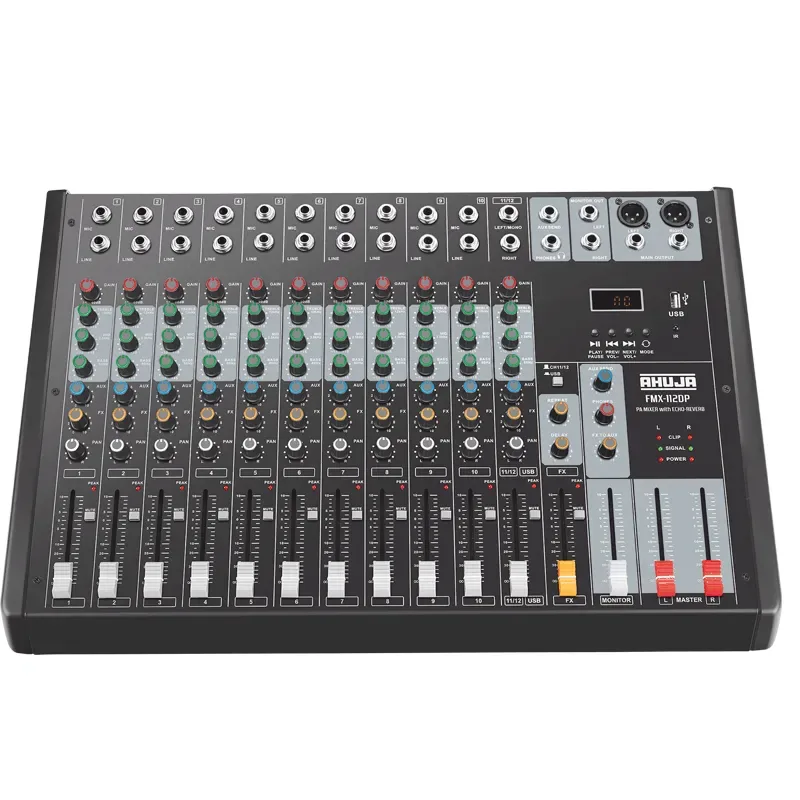

The Ahuja FMX-112DP is a PA analog mixer. Balanced Left and Right MAIN Mix outputs through M/XLR connectors as well as 6.3mm (1/4") stereo phone jack sockets.
It has a selector switch available between stereo channel (ch. 11/12) and USB playback channel.
Features
- Professional 12 channel mixer with user friendly features, in a compact & aesthetically superior construction.
- 10 MIC, 10 LINE & 01 STEREO Balanced inputs, through 6.3mm ( 1/4") stereo phone jack socket.
- Built-in digital MP3 player with recording & BT functions.
- Digital Effects channel with DELAY, REPEAT & LEVEL controls.
- Each input channel has a GAIN control, 3 band active EQ controls, AUX, FX and PAN controls.
- The STEREO channel has a GAIN control, 3 band active EQ controls, AUX, FX and PAN controls.
- Each input channel provides Peak LED to indicate excessive input signal levels.
- Each channel has a signal Mute switch and a slide fader control for accurate setting of signal level.
- Selector switch available between Stereo channel (Ch.11/12) & USB playback channel.
- Balanced Left & Right MAIN Mix outputs through M/XLR connectors as well as 6.3mm (1/4") stereo phone jack sockets.
- MONITOR L&R outputs through 6.3mm (1/4") phone jack sockets and individual monitor fader control.
- AUX SEND output with independent level control.
- Headphone output with Phones Control for output monitoring.
- Operates on 240V 50Hz AC mains.
Specifications, Q&A and videos
| Impedance/Gain | 2kΩ Balanced/65dB |
|---|---|
| THD | <0.1% |
| L/R Line Output | 25Hz - 20kHz (+0, -1dB) |
| TREBLE/MID/BASS | ±12dB at 12kHz/2.5kHz/80Hz |
| CLIP LED INDICATION | 4 dB prior to true clip |
| Nominal/Max Level | 4dBu/21dBu (1.22V/9V) |
| Impedance | 600Ω |
| DELAY SYSTEM | Digital Signal Processing |
| DELAY RANGE SETTINGS | Variable from 20 to 300ms |
| DIGITAL PLAYER | MP3 Player/Recorder with USB Reader, Bluetooth |
| HEADPHONE OUTPUT | 200mV at 8Ω, THD <1% |
| MONITOR OUTPUTS (L&R) | 1.6V |
| SIGNAL TO NOISE RATIO | >80dB |
| POWER SUPPLY | AC: 220-240V, 50/60Hz |
| DIMENSIONS | W520 × H105 × D350mm |
| WEIGHT | 5.20kg |
The FMX-112DP is an Ahuja PA analog mixer in the FMX Mixers. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 12 channel mixer with user friendly features, in a compact & aesthetically superior construction; 10 MIC, 10 LINE & 01 STEREO Balanced inputs, through 6.3mm ( 1/4") stereo phone jack socket; Built-in digital MP3 player with recording & BT functions; Digital Effects channel with DELAY, REPEAT & LEVEL controls; Each input channel has a GAIN control, 3 band active EQ controls, AUX, FX and PAN controls; The STEREO channel has a GAIN control, 3 band active EQ controls, AUX, FX and PAN controls.
The FMX-112DP impedance/gain is 2kΩ Balanced/65dB.
The FMX-112DP thd is <0.1%.
The FMX-112DP l/r line output is 25Hz - 20kHz (+0, -1dB).
The FMX-112DP treble/mid/bass is ±12dB at 12kHz/2.5kHz/80Hz.
The FMX-112DP clip led indication is 4 dB prior to true clip.
