Ahuja
FMX-108DP
- Series
- FMX Mixers
- Category
- Mixers
- Category
- Compact Mixers

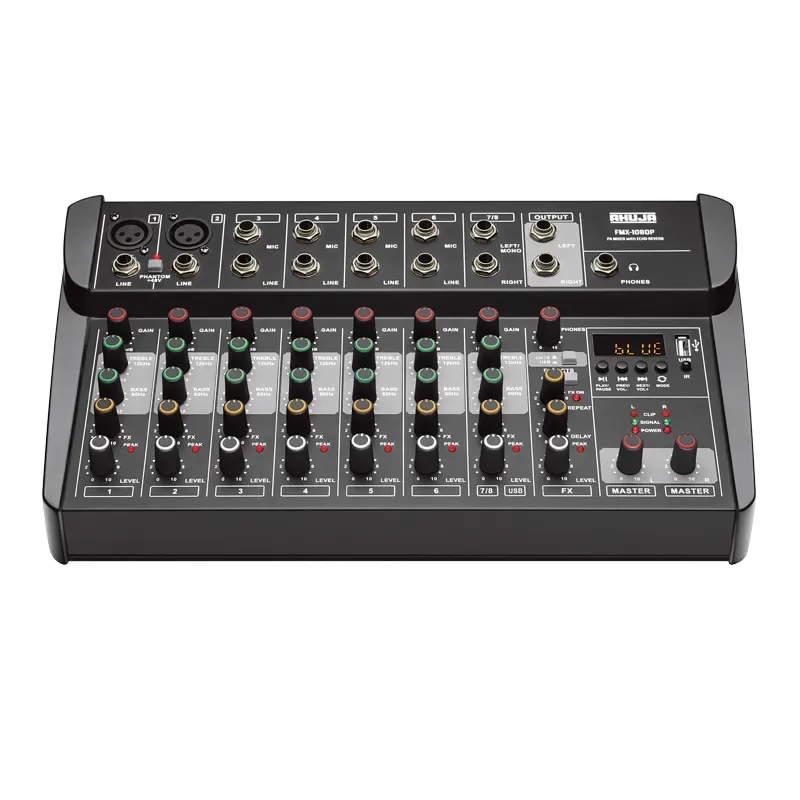

The Ahuja FMX-108DP is a PA analog mixer. Provided with two balanced XLR microphone inputs, with switchable +48V Phantom supply.
MP3 digital player with recording and playback through USB. Bluetooth facility also available.
Features
- Compact and reliable professional PA Mixer which is aesthetically superior and easily portable.
- Provided with two balanced XLR microphone inputs, with switchable +48V Phantom supply.
- Additionally, four low impedance microphones can be connected in either balanced or unbalanced configuration, through a 6.3 mm (1/4") stereo jack socket.
- Upto six line level signal sources can be connected in either balanced or unbalanced configuration, through a 6.3mm (1/4") stereo jack socket.
- Each channel has a GAIN control for optimum adjustment of the MIC & LINE input sensitivities.
- Two band equalizer with active BASS & TREBLE controls in each channel for desired equalisation of the input signal.
- Separate FX (effects) level control for each input channel.
- MP3 digital player with recording and playback through USB. Bluetooth facility also available.
- One independent stereo input channel is provided with a GAIN control, 2 band EQ, FX & LEVEL Controls.
- Each channel has a PEAK LED which glows when the level of input signal is excessive.
- A push switch is provided for selection between Ch 7/8 and USB channel.
- Built-in digital effects processor with DELAY, REPEAT and LEVEL controls.
- Effects ON/OFF switch with FX ON & PEAK LEDs.
- Line level LEFT & RIGHT outputs through 6.3 mm (1/4") stereo jack sockets.
- Headphone output, with independent volume control, is available through a 6.3mm (1/4") stereo jack socket.
- Individual SIGNAL & CLIP LEDs for optimum setting of Left & Right output levels.
- Individual MASTER volume controls for Left & Right line outputs.
- Operates on 240V, 50Hz AC Mains.
Specifications, Q&A and videos
| Impedance/Gain | 2kW Balanced/65dB, 1kW Unbalanced/65dB |
|---|---|
| THD | < 0.1 % |
| Frequency Response | 25Hz-20 kHz (-1dB) |
| Bass/Treble | ±15dB at 80 Hz / ±15dB at 12kHz |
| Digital Recorder | MP3 Recorder & Playback |
| Delay Range | Variable from 20 to 300ms |
| Nominal | 0dBu (775mv) |
| Maximum | +21dBu (9V) |
| Output Impedance | 600W |
| Headphone Output | 200mV at 8W |
| S/N Ratio | > 68dB |
| Clip LED Indication | 4dB prior to true clip |
| Power Supply | 220-240V AC 50Hz |
| Protection | AC: Fuse 1Amp. 250V (T 1A L) |
| Dimensions | W345 x H75 x D210mm |
| Weight | 1.85kg approx. |
The FMX-108DP is an Ahuja PA analog mixer in the FMX Mixers. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Compact and reliable professional PA Mixer which is aesthetically superior and easily portable; Provided with two balanced XLR microphone inputs, with switchable +48V Phantom supply; Additionally, four low impedance microphones can be connected in either balanced or unbalanced configuration, through a 6.3 mm (1/4") stereo jack socket; Upto six line level signal sources can be connected in either balanced or unbalanced configuration, through a 6.3mm (1/4") stereo jack socket; Each channel has a GAIN control for optimum adjustment of the MIC & LINE input sensitivities; Two band equalizer with active BASS & TREBLE controls in each channel for desired equalisation of the input signal.
The FMX-108DP impedance/gain is 2kW Balanced/65dB, 1kW Unbalanced/65dB.
The FMX-108DP thd is < 0.1 %.
The FMX-108DP frequency response is 25Hz-20 kHz (-1dB).
The FMX-108DP bass/treble is ±15dB at 80 Hz / ±15dB at 12kHz.
The FMX-108DP digital recorder is MP3 Recorder & Playback.
