Ahuja
DXA-3502
- Power
- 1750+1750 WATTS
- Channels
- 2 Channels
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers

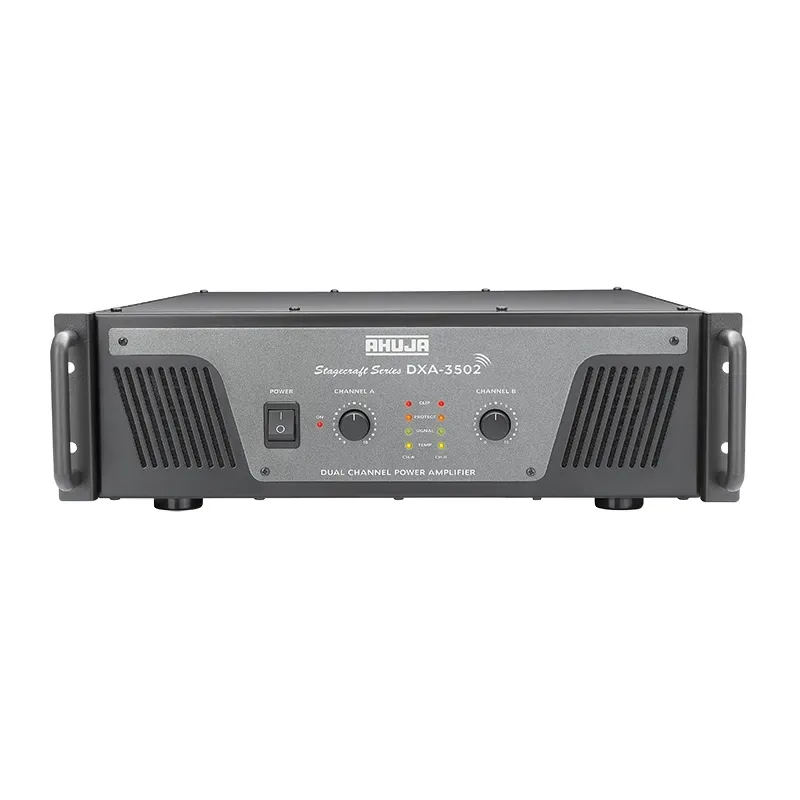

The Ahuja DXA-3502 is a 1750W dual channel PA power amplifier.
Class H operation for optimum efficiency.
Features
- DXA-3502 is a rugged and most reliable dual channel amplifier. It sets a new benchmark for professionals requiring a sonically superior, high power amplifier. It has been designed to operate under stringent working conditions such as wide voltage fluctuations due to gensets/AC mains and high ambient temperatures. Adequate safeguards have been built-in to counter adverse working conditions. Ease of operation, combined with service accessibility has been optimized in the design.
- Class H operation for optimum efficiency.
Specifications, Q&A and videos
| Stereo/Mono | 8Ω 650W + 650W RMS, 4Ω 1200W + 1200W RMS, 2Ω 1750W + 1750W RMS |
|---|---|
| Bridged Output | 8Ω 2400W RMS, 4Ω 3500W RMS |
| Single Channel Driven Output | 8Ω 750W RMS, 4Ω 1350W RMS, 2Ω 1900W RMS |
| THD + N | 0.5% |
| Frequency Response (-1dB) | 20-20,000Hz |
| Power Bandwidth (0.5% THD) | 20-20,000Hz |
| Input Sensitivity | 0dBm (775mV) & 4dBm (1.23V) |
| Input Impedance | 10k Unbalanced, 20k Balanced |
| S/N Ratio | 95dB |
| Channel Separation | 65dB at 1kHz |
| Damping Factor (8Ω) | > 500 |
| Slew Rate | 35V/µs |
| Protections | Temperature, DC, RFI, Short Circuit, Overload, AC over voltage, Built-in limiter |
| Input Connectors | 2×XLR, Stereo Phone Jack 6.3mm |
| Output Connectors | Speakon 4-Way, Heavy Duty Binding Post each channel |
| Cooling | Variable Speed DC Fan with Temperature Sensing |
| Front Panel Controls | 2× 41 Step Level Attenuators |
| Indicators | ON, Signal, Clip, Temperatures, Protect (Ch. A & B) |
| Power Consumption | 4200VA @ 220-240V~50/60Hz |
| Dimensions | W482 × H153 × D615mm |
| Weight | 37.50kg Approx. |
The DXA-3502 is an Ahuja dual channel PA power amplifier rated 1750+1750 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
DXA-3502 is a rugged and most reliable dual channel amplifier. It sets a new benchmark for professionals requiring a sonically superior, high power amplifier. It has been designed to operate under stringent working conditions such as wide voltage fluctuations due to gensets/AC mains and high ambient temperatures. Adequate safeguards have been built-in to counter adverse working conditions. Ease of operation, combined with service accessibility has been optimized in the design; Class H operation for optimum efficiency.
The DXA-3502 stereo/mono is 8Ω 650W + 650W RMS, 4Ω 1200W + 1200W RMS, 2Ω 1750W + 1750W RMS.
The DXA-3502 bridged output is 8Ω 2400W RMS, 4Ω 3500W RMS.
The DXA-3502 single channel driven output is 8Ω 750W RMS, 4Ω 1350W RMS, 2Ω 1900W RMS.
The DXA-3502 thd + n is 0.5%.
The DXA-3502 frequency response (-1db) is 20-20,000Hz.
