Ahuja
DPA-370
- Power
- 30 WATTS
- Series
- DPA Series
- Category
- Mixer Amplifiers
- Category
- DP Mixer Amplifiers

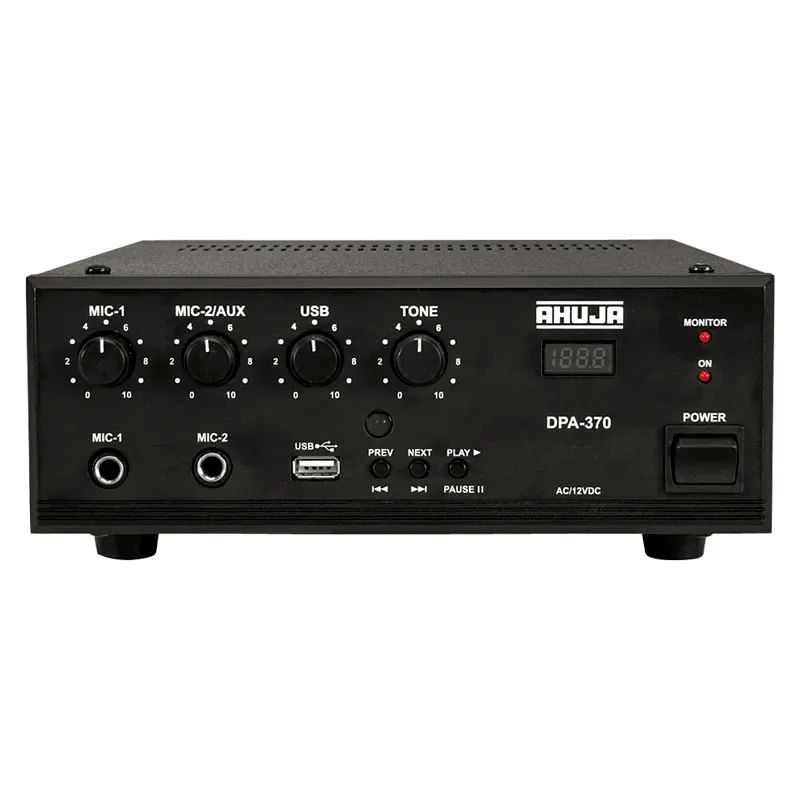

The Ahuja DPA-370 is a 30W medium wattage PA mixer amplifier. Built-in MP3 player with USB reader and remote control.
Line Output for connecting to a Booster Amplifier.
Features
- 2 Mic & 1 Aux Input.
- Built-in MP3 player with USB reader and remote control.
- Bluetooth facility.
- Line Output for connecting to a Booster Amplifier.
- Cut type tone control.
- Instant transfer to DC Power (Car Battery) if
- AC power fails.
Specifications, Q&A and videos
| Power Output | 37W Max., 30W RMS at 10% THD, 27W RMS at 5% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 2 × Mic. 0.5mV/2.5kΩ, 1 × Aux 50mV/330kΩ |
| Frequency Response | 100-12,000Hz ±3dB |
| Signal to Noise Ratio | 58dB |
| Tone Controls | Tone: -10dB at 10kHz |
| Outputs | Line: 250mV/3.5kΩ |
| Speaker Outputs | 4Ω, 8Ω, 16Ω & 100V |
| Digital Player | MP3 Player with USB reader |
| Power Supply | AC: 220-240V 50/60Hz, DC: 12-14V Car Battery |
| Power Consumption | AC: 48VA DC: 2.7A |
| Dimensions | W230 × H95 × D260 mm |
| Weight | 4.5kg |
The DPA-370 is an Ahuja medium wattage PA mixer amplifier in the DPA Series rated 30 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
2 Mic & 1 Aux Input; Built-in MP3 player with USB reader and remote control; Bluetooth facility; Line Output for connecting to a Booster Amplifier; Cut type tone control; Instant transfer to DC Power (Car Battery) if.
The DPA-370 output regulation is ≤ 2 dB, no load to full load at 1kHz.
The DPA-370 input channels is 2 × Mic. 0.5mV/2.5kΩ, 1 × Aux 50mV/330kΩ.
The DPA-370 frequency response is 100-12,000Hz ±3dB.
The DPA-370 signal to noise ratio is 58dB.
The DPA-370 tone controls is Tone: -10dB at 10kHz.
