Ahuja
DPA-570M
- Power
- 50 WATTS
- Series
- DPA Series
- Category
- Mixer Amplifiers
- Category
- DP Mixer Amplifiers

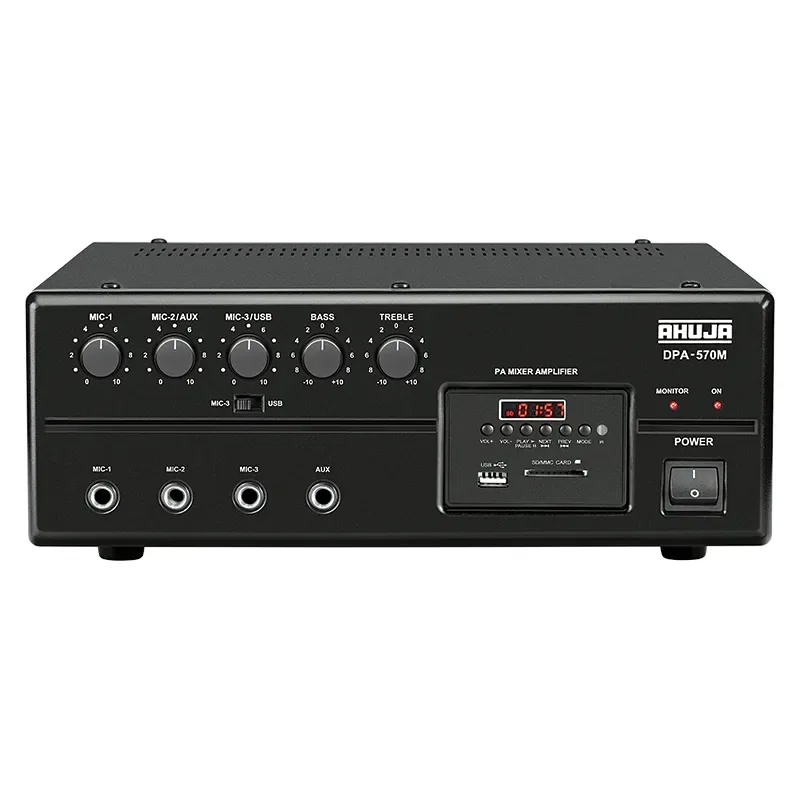

The Ahuja DPA-570 M is a PA product. Built-in MP3 player with USB reader and remote control.
Instant transfer to DC Power (Car Battery) if AC power fails.
Features
- 3 Mic & 1 Aux Input.
- Built-in MP3 player with USB reader and remote control.
- Bluetooth facility.
- Line Output for connecting to a Booster Amplifier.
- Cut and Boost type Bass & Treble controls.
- Instant transfer to DC Power (Car Battery) if AC power fails.
Specifications, Q&A and videos
| Power Output | 75W Max., 50W RMS at 10% THD, 45W RMS at 5% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 3 × Mic 0.6mV/4.7kΩ, 1×Aux 100mV/330kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 55dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz, Line: 400mV/3.5kΩ |
| Speaker Outputs | 4Ω, 8Ω, 16Ω & 100V |
| Digital Player | MP3 Player with USB, SD, MMC Card Reader & Bluetooth |
| Power Supply | AC: 220-240V 50/60Hz, DC: 12-14V Car Battery) |
| Power Consumption | AC: 90VA DC: 3.1A |
| Dimensions | W305 × H120 × D305 mm |
| Weight | 6.20kg |
The DPA-570M is an Ahuja DP mixer amplifier in the DPA Series rated 50 WATTS. The Ahuja DPA-570 M is a PA product. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
3 Mic & 1 Aux Input; Built-in MP3 player with USB reader and remote control; Bluetooth facility; Line Output for connecting to a Booster Amplifier; Cut and Boost type Bass & Treble controls; Instant transfer to DC Power (Car Battery) if AC power fails.
The DPA-570M output regulation is ≤ 2 dB, no load to full load at 1kHz.
The DPA-570M input channels is 3 × Mic 0.6mV/4.7kΩ, 1×Aux 100mV/330kΩ.
The DPA-570M frequency response is 50-15,000Hz ±3dB.
The DPA-570M signal to noise ratio is 55dB.
The DPA-570M tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz, Line: 400mV/3.5kΩ.
