Ahuja
SSA-160EM
- Power
- 160 WATTS
- Series
- SSA Series
- Category
- Mixer Amplifiers

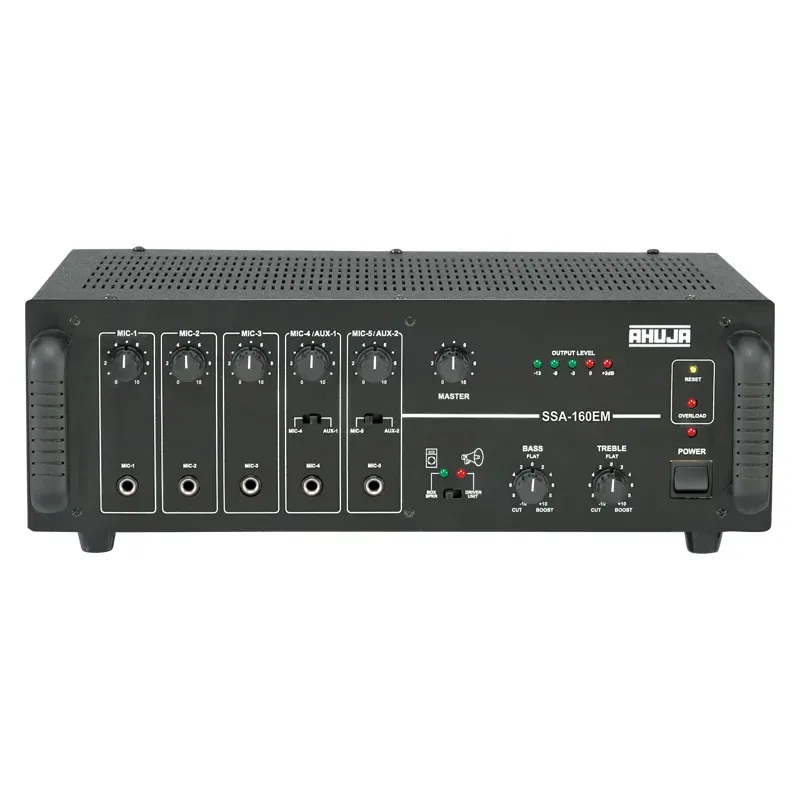

The Ahuja SSA-160 EM is a 160W medium wattage PA mixer amplifier. It has box speaker/driver unit selector switch.
Bass boost defeated at driver unit position for safer operation of driver units. Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
Features
- 5 Mic & 2 Aux Inputs.
- Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
- Line Input for connecting the output from any external mixer or permitting SSA-160EM to be used as a Booster Power Amplifier.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Specifications, Q&A and videos
| Power Output | 220W Max., 160W RMS at 10% THD, 140W RMS at 5% THD, 120W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470kΩ, 1 × Line 1V/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Output | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Output | 4Ω, 8Ω, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
| Power Consumption | AC: 300VA DC: 4A |
| Dimensions | W420 × H155 × D320 mm |
| Weight | 13.6kg |
The SSA-160EM is an Ahuja medium wattage PA mixer amplifier in the SSA Series rated 160 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
5 Mic & 2 Aux Inputs; Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme; Line Input for connecting the output from any external mixer or permitting SSA-160EM to be used as a Booster Power Amplifier; Resettable circuit breaker for protection against overload and short circuit; Instant transfer to DC power (Car Battery) if AC power fails; Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
The SSA-160EM output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SSA-160EM input channels is 5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470kΩ, 1 × Line 1V/50kΩ.
The SSA-160EM frequency response is 50-15,000Hz ±3dB.
The SSA-160EM signal to noise ratio is 60dB.
The SSA-160EM tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
