Ahuja
SSA-100M
- Power
- 100 WATTS
- Series
- SSA Series
- Category
- Mixer Amplifiers

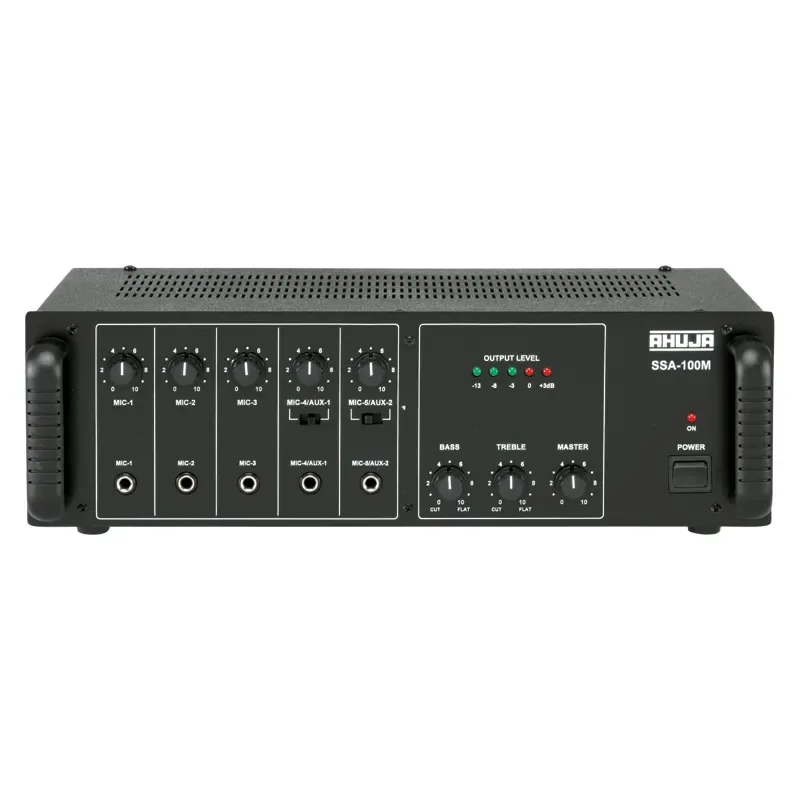

The Ahuja SSA-100 M is a 100W medium wattage PA mixer amplifier. Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
Instant transfer to DC power (Car Battery) if AC power fails.
Features
- 5 Mic & 2 Aux Inputs.
- Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Bass & Treble Tone Controls cut type.
Specifications, Q&A and videos
| Power Output | 130W Max., 100W RMS at 10% THD, 90W RMS at 5% THD, 80W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 5 × Mic 0.65mV/4.7kΩ, 1 × Aux 50mV/470kΩ, 1 × Aux 150mV/470kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
| Outputs | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Outputs | 4Ω, 8Ω, 16Ω, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
| Power Consumption | AC: 220VA DC: 3A |
| Dimensions | W420 × H135 × D290 mm |
| Weight | 10.5kg |
The SSA-100M is an Ahuja medium wattage PA mixer amplifier in the SSA Series rated 100 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
5 Mic & 2 Aux Inputs; Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme; Instant transfer to DC power (Car Battery) if AC power fails; Bass & Treble Tone Controls cut type.
The SSA-100M output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SSA-100M input channels is 5 × Mic 0.65mV/4.7kΩ, 1 × Aux 50mV/470kΩ, 1 × Aux 150mV/470kΩ.
The SSA-100M frequency response is 50-15,000Hz ±3dB.
The SSA-100M signal to noise ratio is 60dB.
The SSA-100M tone controls is Bass: -10dB at 100Hz, Treble: -10dB at 10kHz.
