Ahuja

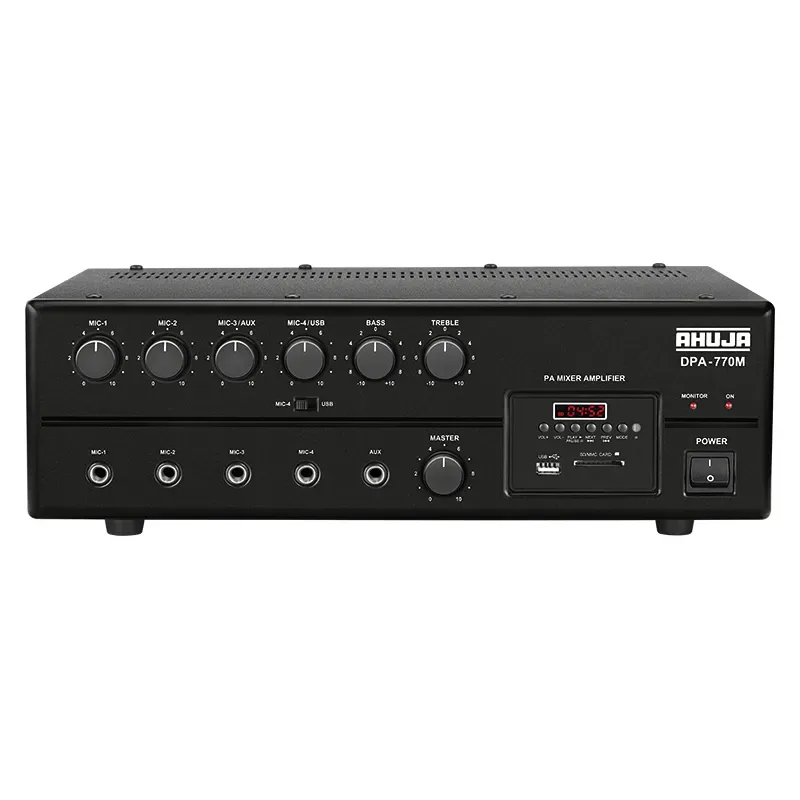

The Ahuja DPA-770 M is a PA product. Built-in MP3 player with USB reader and remote control.
Line Output for connecting to a Booster Amplifier.
| Power Output | 100W Max., 75W RMS at 10% THD, 70W RMS at 5% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 4 × Mic. 0.6mV/4.7kΩ, 1 × Aux 100mV/330kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 55dB |
| Tone Controls | Bass: -10dB +7dB at 100Hz, Treble: -10dB +7dB at 10kHz |
| Outputs | Line: 1V/3.5kΩ |
| Speaker Outputs | 4Ω, 8Ω, 16Ω & 100V |
| Digital Player | MP3 Player with USB, SD, MMC Card Reader & Bluetooth |
| Power Supply | AC: 220-240V 50/60Hz, DC: 12-14V Car Battery |
| Power Consumption | AC: 170VA DC: 3A |
| Dimensions | W385 × H125 × D300 mm |
| Weight | 8.80kg |
The DPA-770M is an Ahuja DP mixer amplifier in the DPA Series rated 75 WATTS. The Ahuja DPA-770 M is a PA product. Available from Mansukhlal Sales Corp, an authorized dealer.
4 Mic & 1 Aux Input; Bluetooth facility; Cut and Boost type Bass & Treble controls; Instant transfer to DC Power (Car Battery) if; AC power fails.
The DPA-770M output regulation is ≤ 2 dB, no load to full load at 1kHz.
The DPA-770M input channels is 4 × Mic. 0.6mV/4.7kΩ, 1 × Aux 100mV/330kΩ.
The DPA-770M frequency response is 50-15,000Hz ±3dB.
The DPA-770M signal to noise ratio is 55dB.
The DPA-770M tone controls is Bass: -10dB +7dB at 100Hz, Treble: -10dB +7dB at 10kHz.
