Ahuja
AS15-X200
- Power
- 200 WATTS
- Category
- Transducers
- Category
- Speaker Components

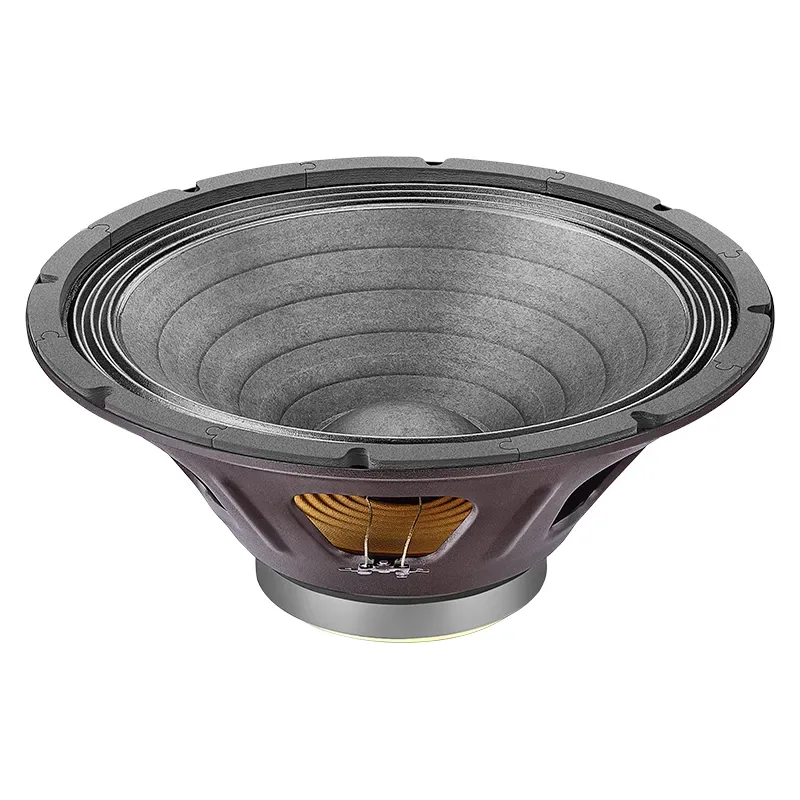

The Ahuja AS15-X200 is a 200W high quality 38.1cm (15”) mid-bass speaker. Suitable for use in compact 2-way sealed as well as bass reflex enclosures.
Excellent low frequency response makes it ideal for.
Features
- Sturdy pressed metal frame in elegant brown colour.
- Special high temperature voice coil for exceptional thermal capabilities.
- Suitable for use in compact 2-way sealed as well as bass reflex enclosures.
- Excellent low frequency response makes it ideal for
- Dandiya-Ras, DJs & General PA applications.
Specifications, Q&A and videos
| Power Rating | 200W RMS |
|---|---|
| Nominal Diameter | 380 mm (15”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 98dB |
| Magnet Weight | 1.54kg |
| Resonant FrequenceY (Fs) | 45Hz |
| DC resistance (Re) | 6.0Ω |
| Electromagnetic Q (Qes) | 0.58 |
| Mechanical Q (Qms) | 9.6 |
| Total Q (Qts) | 0.54 |
| Compliance Equivalent Volume (VAS) | 115 Litr |
| Surface Area of Cone (Sd) | 830cm2 |
| Reference Efficiency (ηo) | 2.1% |
| Voice Coil | 2.0” |
| Overhang (Xmax) | 3.5 mm |
| Moving Mass (Mms) | 73gm |
| BL Product (BL) | 13.4TM |
| Overall Diameter | 385 mm |
| Depth | 165 mm |
| Baffle Hole Diameter | 355 mm |
| Bolt Mount Diameter (PCD) | 373 mm (8 Bolts) |
| Weight | 4.9kg |
The AS15-X200 is an Ahuja high quality 38.1cm (15”) mid-bass speaker rated 200 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Sturdy pressed metal frame in elegant brown colour; Special high temperature voice coil for exceptional thermal capabilities; Suitable for use in compact 2-way sealed as well as bass reflex enclosures; Excellent low frequency response makes it ideal for; Dandiya-Ras, DJs & General PA applications.
The AS15-X200 nominal diameter is 380 mm (15”).
The AS15-X200 nominal impedance is 8Ω.
The AS15-X200 sensitivity (1w/1m ) is 98dB.
The AS15-X200 magnet weight is 1.54kg.
The AS15-X200 resonant frequencey (fs) is 45Hz.
