Ahuja
AS12-X100
- Power
- 100 WATTS
- Category
- Transducers
- Category
- Speaker Components

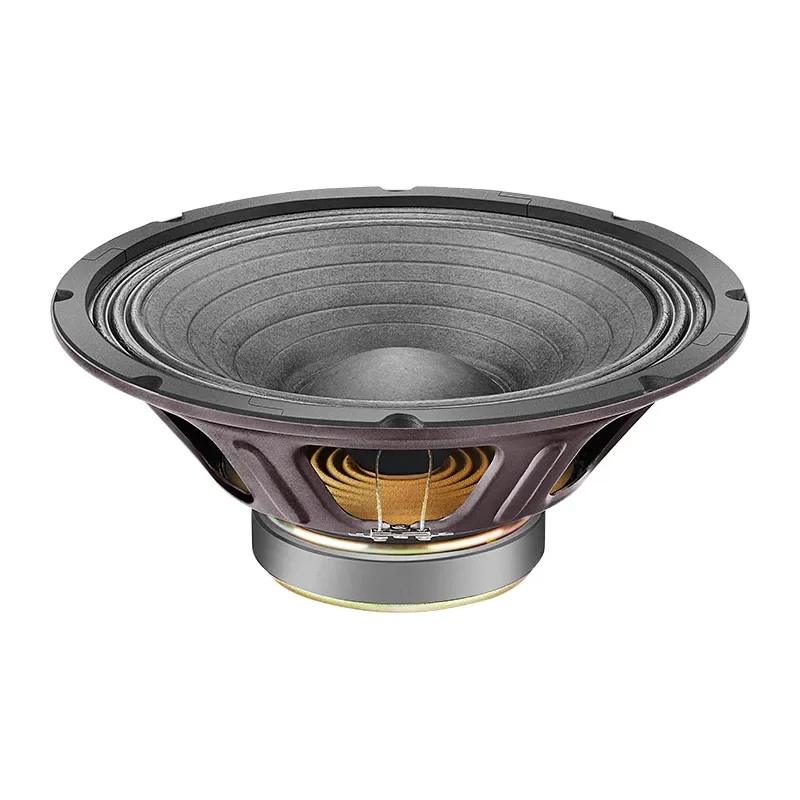

The Ahuja AS12-X100 is a 100W high quality 30.48cm (12”) mid-bass speaker. Excellent low frequency response makes it ideal for Dandiya-Ras, DJs and General PA applications.
Suitable for use in compact 2-way sealed as well as bass reflex enclosures.
Features
- Sturdy pressed metal frame in elegant brown colour.
- Kapton former voice coil for withstanding high temperature.
- Suitable for use in compact 2-way sealed as well as bass reflex enclosures.
- Excellent low frequency response makes it ideal for Dandiya-Ras, DJs & General PA applications.
Specifications, Q&A and videos
| Power Rating | 100W RMS/200W Programme |
|---|---|
| Nominal Diameter | 305 mm (12”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 97dB |
| Magnet Weight | 1.1kg |
| Resonant FrequenceY (Fs) | 70Hz |
| DC resistance (Re) | 6.0Ω |
| Electromagnetic Q (Qes) | 0.79 |
| Mechanical Q (Qms) | 5.5 |
| Total Q (Qts) | 0.69 |
| Compliance Equivalent Volume (VAS) | 74.23 Litr |
| Surface Area of Cone (Sd) | 510cm2 |
| Reference Efficiency (ηo) | 3.09% |
| Voice Coil | 1.5” |
| Overhang (Xmax) | 2.0mm |
| Moving Mass (Mms) | 25.5gm |
| BL Product (BL) | 9.2TM |
| Overall Diameter | 311 mm |
| Depth | 130 mm |
| Baffle Hole Diameter | 285 mm |
| Bolt Mount Diameter (PCD) | 292 mm (8 Bolts) |
| Weight | 3.20kg |
The AS12-X100 is an Ahuja high quality 30.48cm (12”) mid-bass speaker rated 100 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Sturdy pressed metal frame in elegant brown colour; Kapton former voice coil for withstanding high temperature; Suitable for use in compact 2-way sealed as well as bass reflex enclosures; Excellent low frequency response makes it ideal for Dandiya-Ras, DJs & General PA applications.
The AS12-X100 nominal diameter is 305 mm (12”).
The AS12-X100 nominal impedance is 8Ω.
The AS12-X100 sensitivity (1w/1m ) is 97dB.
The AS12-X100 magnet weight is 1.1kg.
The AS12-X100 resonant frequencey (fs) is 70Hz.
