Ahuja
APT-025
- Power
- 300 WATTS
- Series
- APT Piezo Tweeters
- Category
- Transducers
- Category
- Piezo Tweeters

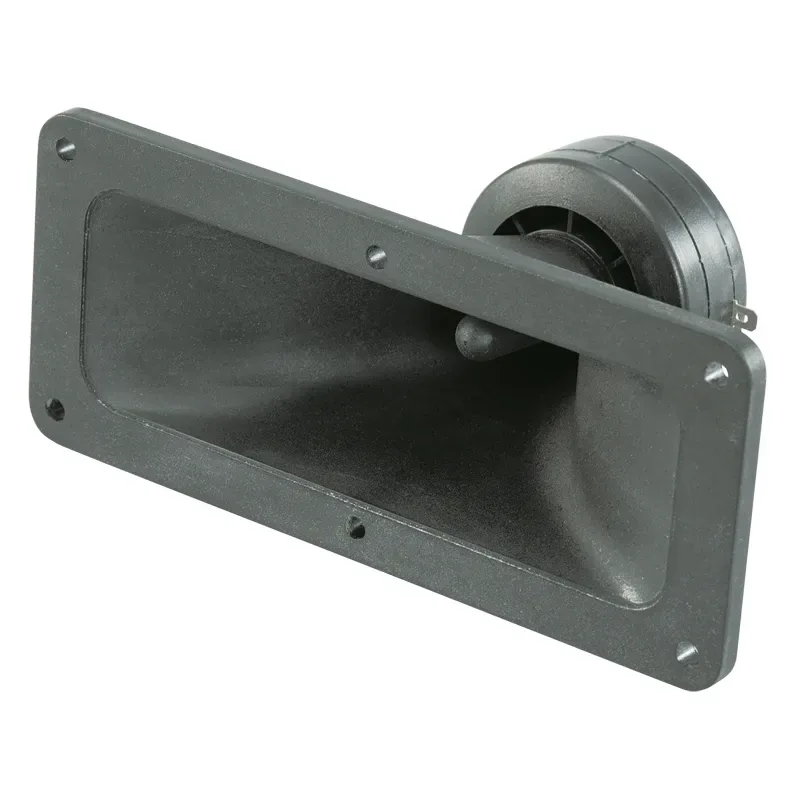

The Ahuja APT-025 is a piezo tweeter with a rectangular high power piezo tweeter with deep low limit frequency.
Features
- Rectangular high power piezo tweeter with deep low limit frequency
Specifications, Q&A and videos
| Max. Voltage | 35V~ |
|---|---|
| 4Ω System | 300W |
| 8Ω System | 150W |
| SPL (2.83V/1m) | 92dB |
| Frequency Response | 1,800-20,000Hz |
| Radiation Angle (V/H) | 45°/90° |
| Impedance @ 1kHz | >1,000Ω |
| Mounting Cutout | 155 × 58 mm |
| Mounting Depth | 100 mm |
| Dimensions | 187 × 80 mm |
| Weight | 0.14kg |
The APT-025 is an Ahuja piezo tweeter in the APT Piezo Tweeters rated 300 WATTS. The Ahuja APT-025 is a piezo tweeter with a rectangular high power piezo tweeter with deep low limit frequency. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Rectangular high power piezo tweeter with deep low limit frequency.
The APT-025 max. voltage is 35V~.
The APT-025 4ω system is 300W.
The APT-025 8ω system is 150W.
The APT-025 spl (2.83v/1m) is 92dB.
The APT-025 frequency response is 1,800-20,000Hz.
