Ahuja
APT-001
- Power
- 300 WATTS
- Series
- APT Piezo Tweeters
- Category
- Transducers
- Category
- Piezo Tweeters

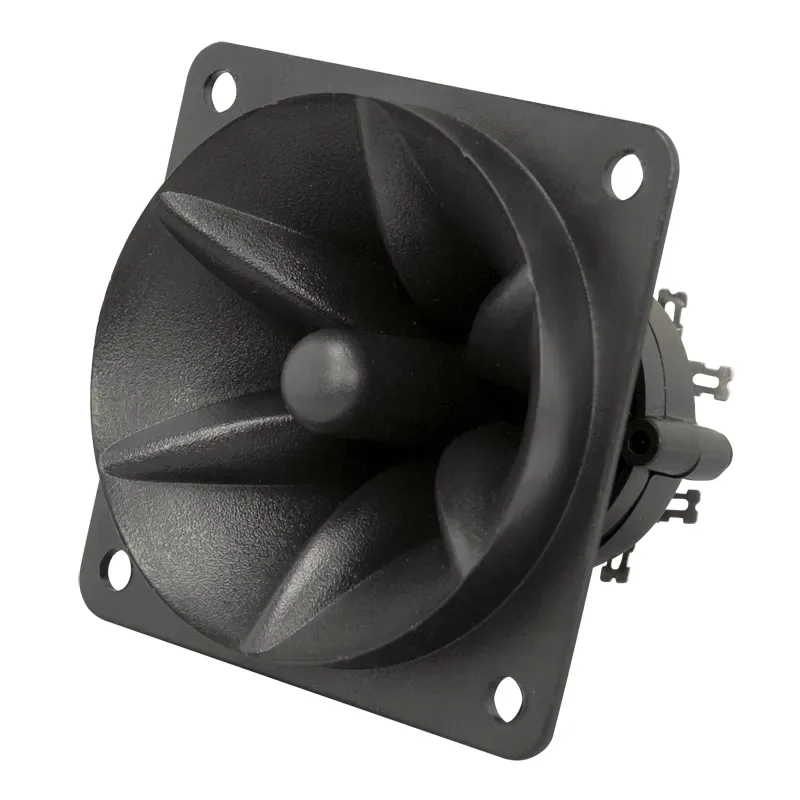

The Ahuja APT-001 is a piezo tweeter with horn front attachment for rear mounting.
Features
- Piezo tweeter.
- With horn front attachment for rear mounting.
Specifications, Q&A and videos
| Max. Voltage | 35V~ |
|---|---|
| 4Ω System | 300W |
| 8Ω System | 150W |
| SPL (2.83V/1m) | 94dB |
| Frequency Response | 4,000-20,000Hz |
| Impedance @ 1kHz | >1,000Ω |
| Mounting Cutout | 73 mm |
| Mounting Depth | 60 mm |
| Dimensions | 85 × 85 mm |
| Weight | 0.06kg |
The APT-001 is an Ahuja piezo tweeter in the APT Piezo Tweeters rated 300 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Piezo tweeter; With horn front attachment for rear mounting.
The APT-001 max. voltage is 35V~.
The APT-001 4ω system is 300W.
The APT-001 8ω system is 150W.
The APT-001 spl (2.83v/1m) is 94dB.
The APT-001 frequency response is 4,000-20,000Hz.
