Ahuja
APT-016
- Power
- 300 WATTS
- Series
- APT Piezo Tweeters
- Category
- Transducers
- Category
- Piezo Tweeters

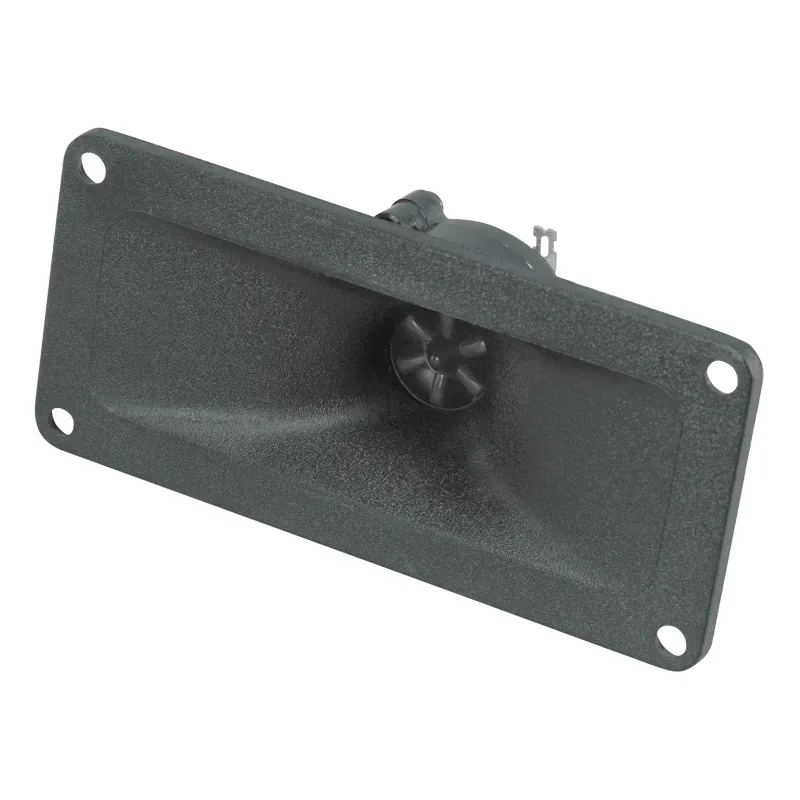

The Ahuja APT-016 is a piezo tweeter with a compact rectangular form.
Features
- Piezo tweeter.
- Compact rectangular form.
Specifications, Q&A and videos
| Max. Voltage | 35V~ |
|---|---|
| 4Ω System | 300W |
| 8Ω System | 150W |
| SPL (2.83V/1m) | 91dB |
| Frequency Response | 3,000-20,000Hz |
| Radiation Angle (V/H) | 45°/90° |
| Impedance @ 1kHz | >1,000Ω |
| Mounting Cutout | 98 × 55 mm |
| Mounting Depth | 50 mm |
| Dimensions | 145 × 67 mm |
| Weight | 0.07kg |
The APT-016 is an Ahuja piezo tweeter in the APT Piezo Tweeters rated 300 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Piezo tweeter; Compact rectangular form.
The APT-016 max. voltage is 35V~.
The APT-016 4ω system is 300W.
The APT-016 8ω system is 150W.
The APT-016 spl (2.83v/1m) is 91dB.
The APT-016 frequency response is 3,000-20,000Hz.
