Ahuja
ALX-7500
- Power
- 600 WATTS
- Series
- ALX Series
- Category
- Speakers
- Category
- Line Arrays
Ahuja ALX-7500 is available from MSC, authorized Ahuja dealer for Maharashtra and Goa. Share application (school, temple, retail, events) for specification and quote.

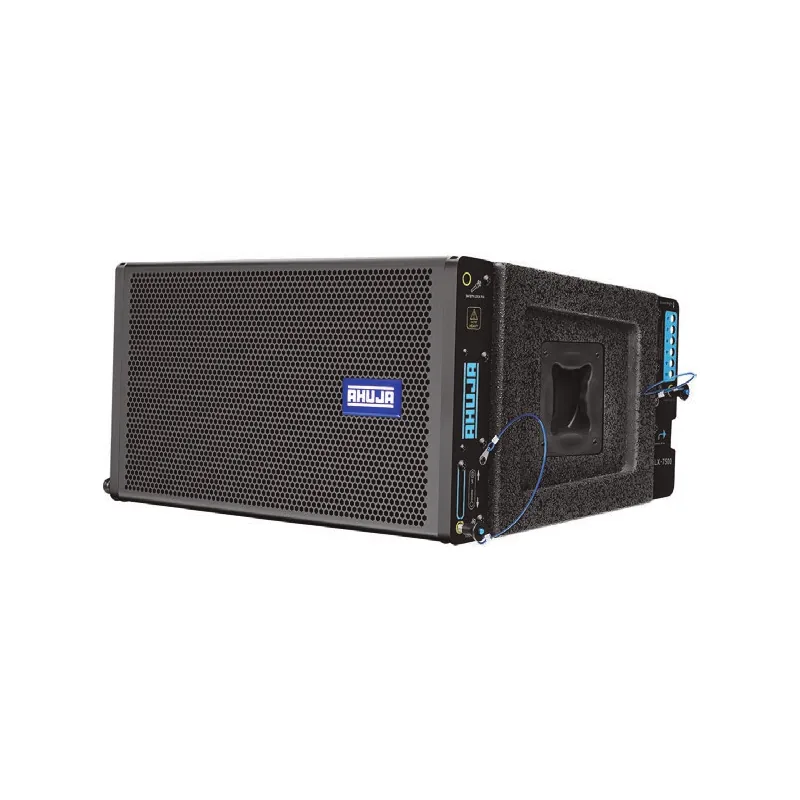

The Ahuja ALX-7500 is a 600W line array loudspeaker with a single high-power 12" neodymium LF driver and HF waveguide horn. Suitable for indoor and outdoor fixed installations, rental, DJs, and live sound reinforcement.
Features
- Controlled, coherent coverage with strong high-frequency response.
- HF driver with waveguide horn for constant-curvature line array performance.
- Smart rigging for quick, secure installation.
- Professional 2-way passive crossover with HF protection.
- HF long-throw (0 dB) / short-throw (−3 dB) slide switch on terminal plate.
- Well-braced cabinet in durable paint finish with heavy-duty steel grille and acoustically transparent foam.

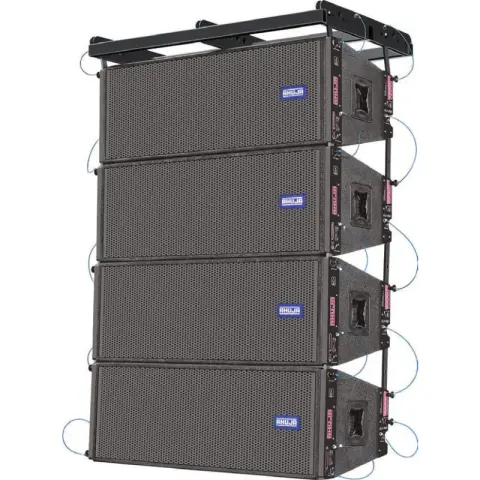

- Optional flybar frame available for rigging.
- Suitable for fixed installations, rental, DJs, and live sound reinforcement.
Specifications, Q&A and videos
| Power Rating | 600W RMS |
|---|---|
| Configuration | Two Way |
| Frequency Response | 52-20,000Hz |
| Low Frequency Speaker | 1 × 304.8mm (12”), Ø89mm (3.5”) voice coil |
| High Frequency Unit | Waveguide horn with 1 × 38.1mm (1.5”) throat compression driver |
| SPL (1W/1m) | 98dB |
| Max Rated SPL | 126dB |
| Nominal Impedance | 8Ω |
| Horizontal Coverage | 120° |
| Vertical Coverage | 10° |
| Variable Splay Angles | 0°, 2°, 4°, 6°, 8°, 10° |
| Connectors | 2 × Speakon |
| Dimensions | W695 × H360 × D530 mm |
| Weight | 35.00kg |
What type of line array speaker is the ALX-7500?
The ALX-7500 is an Ahuja line array speaker in the ALX Series rated 600 WATTS. Ahuja ALX-7500 is available from MSC, authorized Ahuja dealer for Maharashtra and Goa. Available from Mansukhlal Sales Corporation, an authorized dealer.
What are the main features of the ALX-7500?
Controlled, coherent coverage with strong high-frequency response; HF driver with waveguide horn for constant-curvature line array performance; Smart rigging for quick, secure installation; Professional 2-way passive crossover with HF protection; HF long-throw (0 dB) / short-throw (−3 dB) slide switch on terminal plate; Well-braced cabinet in durable paint finish with heavy-duty steel grille and acoustically transparent foam.
What is the configuration of the ALX-7500?
The ALX-7500 configuration is Two Way.
What is the frequency response of the ALX-7500?
The ALX-7500 frequency response is 52-20,000Hz.
What is the low frequency speaker of the ALX-7500?
The ALX-7500 low frequency speaker is 1 × 304.8mm (12”), Ø89mm (3.5”) voice coil.
What is the high frequency unit of the ALX-7500?
The ALX-7500 high frequency unit is Waveguide horn with 1 × 38.1mm (1.5”) throat compression driver.
What is the spl (1w/1m) of the ALX-7500?
The ALX-7500 spl (1w/1m) is 98dB.
