Ahuja
ALA-9000
- Power
- 800 WATTS
- Category
- Speakers
- Category
- Line Arrays

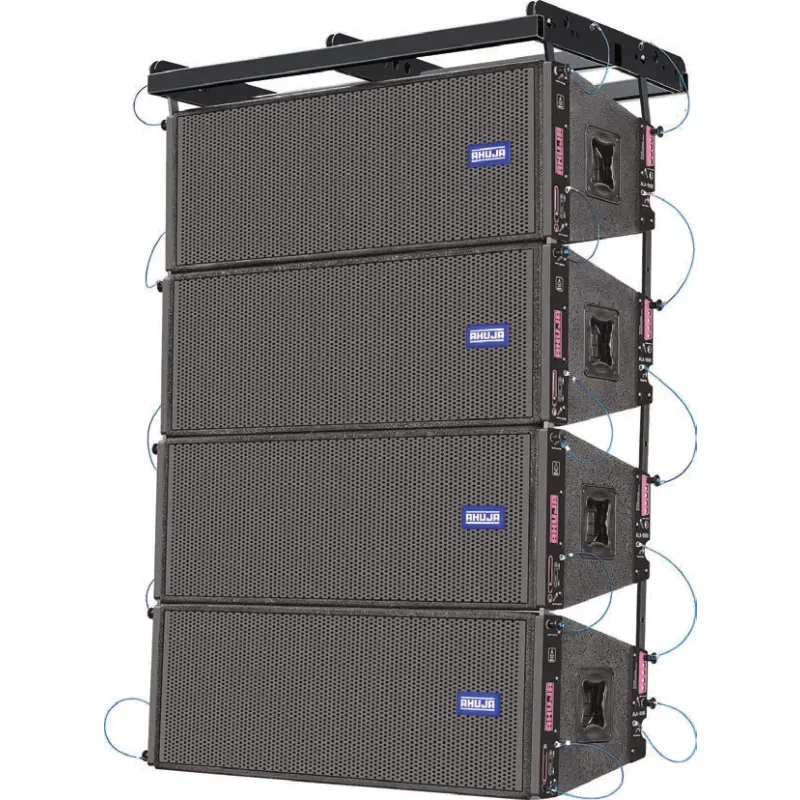

The Ahuja ALA-9000 is an 800W line array loudspeaker with a heavy duty steel grille with acoustically transparent foam. Each line array cabinet is designed to provide uniform coverage with excellent high frequency response.
It uses an each cabinet comprises of two high power 30.48 cm (12”) LF drivers and a high performance HF driver.
Features
- Each cabinet comprises of two high power 30.48 cm (12”) LF drivers and a high performance HF driver.
- Each line array cabinet is designed to provide uniform coverage with excellent high frequency response.
- Smart rigging arrangement for quick & secure installation.
- Professional 2-way passive crossover network.
- Heavy duty steel grille with acoustically transparent foam.
Specifications, Q&A and videos
| Power Rating | 800W RMS |
|---|---|
| Configuration | Two Way |
| Frequency Response | 48-20,000Hz |
| Low Frequency Speaker | 2 × 304.8 mm (12”), Ø76.2 mm (3”) Voice Coil |
| High Frequency Unit | HF Horn with 1 × 51 mm (2”) Throat Compression Driver |
| SPL (1W/1m) | 99dB |
| Max Rated SPL | 128dB |
| Nominal Impedance | 4Ω |
| Horizontal Coverage Angle | 90° |
| Vertical Coverage Angle | 40° |
| Variable Splay Angles | 0°, 2°, 4°, 6°, 8° |
| Connectors | 2 Nos. of Speakon Sockets |
| Dimensions | W1060 × H374 × D460 mm |
| Weight | 48.50kg |
The ALA-9000 is an Ahuja line array loudspeaker. The Ahuja ALA-9000 is an 800W line array loudspeaker with a heavy duty steel grille with acoustically transparent foam. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Each cabinet comprises of two high power 30.48 cm (12”) LF drivers and a high performance HF driver; Each line array cabinet is designed to provide uniform coverage with excellent high frequency response; Smart rigging arrangement for quick & secure installation; Professional 2-way passive crossover network; Heavy duty steel grille with acoustically transparent foam.
The ALA-9000 configuration is Two Way.
The ALA-9000 frequency response is 48-20,000Hz.
The ALA-9000 low frequency speaker is 2 × 304.8 mm (12”), Ø76.2 mm (3”) Voice Coil.
The ALA-9000 high frequency unit is HF Horn with 1 × 51 mm (2”) Throat Compression Driver.
The ALA-9000 spl (1w/1m) is 99dB.
