Ahuja

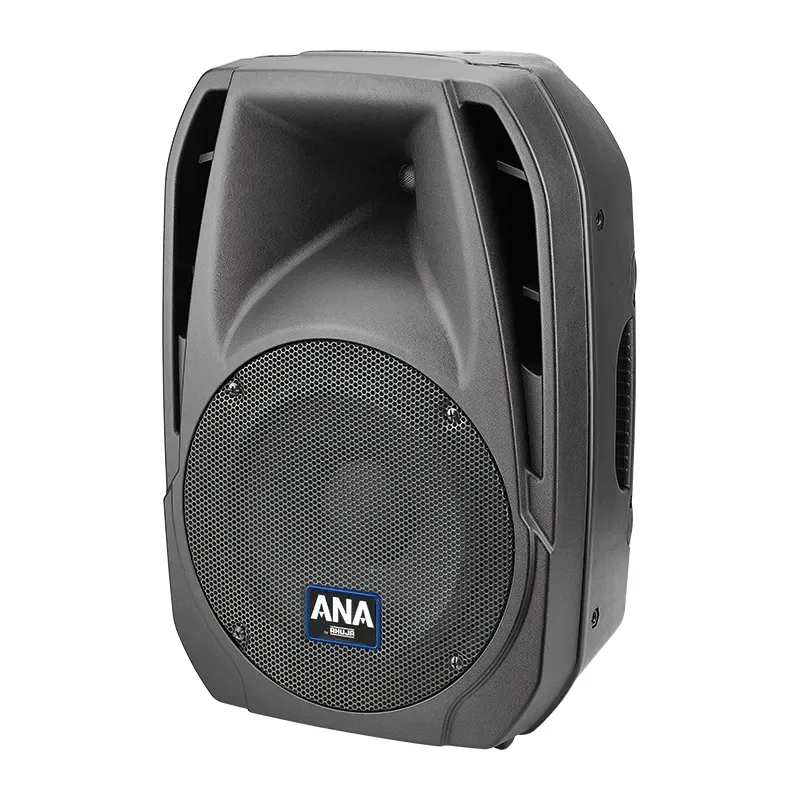

The Ahuja ABA-4000 is a 325W bi-amp PA active speaker with 12" LF woofer, dynamic horn, and moulded cabinet. It has a balanced mic/line input.
A link output can feed another ABA-4000 or a recorder.
| Power Output (Bi-Amp) | LF: 275w RMS at 1% THD Class H, HF: 50w RMS at 1% THD Class AB |
|---|---|
| Output Regulation | ≤ 0.5dB, no load to full load at 1kHz |
| Input Channels | INPUT-1: MIC 20mV/3kΩ balanced, LINE: 775mV/10kΩ balanced, INPUT-2: LINE (Jack) 250mV/20kΩ balanced, RCA: 250mV (L&R)/10kΩ |
| Frequency Response | 50-20,000Hz ±3dB |
| Crossover Frequency | 2kHz , Filter Slope 24dB per octave |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±5dB at 100Hz, Treble: ±5dB at 10kHz |
| Output | a) Loop through (INPUT-1): 20mV or 775mV b) Mixed Output (1+2): 775mV/1kΩ |
| Protection | AC: Fuse 1×4A (T 4A L) DC: Fuse 2×6A (T 6A L) |
| Power Supply | AC: 220-240V 50/60 Hz |
| AC Power Consumption | 375VA |
| Dimensions | W385 × H585 × D305 mm |
| Weight | 20.80kg |
The ABA-4000 is an Ahuja PA active speaker in the ABA Series rated 325 WATTS. The Ahuja ABA-4000 is a 325W bi-amp PA active speaker with 12" LF woofer, dynamic horn, and moulded cabinet. Available from Mansukhlal Sales Corp, an authorized dealer.
1×Balanced Mic/Line Input selectable through a push switch; 1×Line Input can be used for connecting balanced MONO signal through jack or unbalanced STEREO signal source through; dual RCA; Switchable balanced output either as a Loop through output of Input-1 or a mix output of Input-1 and 2; Balanced output to link another ABA-4000 or for recording on a computer, record player; 2-Way Speaker System: 30.48cm (12") LF Woofer (ø6.35cm (2.5") Voice Coil) + Dynamic Horn (ø4.44cm (1.75") Voice Coil).
The ABA-4000 power output (bi-amp) is LF: 275w RMS at 1% THD Class H, HF: 50w RMS at 1% THD Class AB.
The ABA-4000 output regulation is ≤ 0.5dB, no load to full load at 1kHz.
The ABA-4000 input channels is INPUT-1: MIC 20mV/3kΩ balanced, LINE: 775mV/10kΩ balanced, INPUT-2: LINE (Jack) 250mV/20kΩ balanced, RCA: 250mV (L&R)/10kΩ.
The ABA-4000 frequency response is 50-20,000Hz ±3dB.
The ABA-4000 crossover frequency is 2kHz , Filter Slope 24dB per octave.
