Ahuja
ALX-15000M
- Power
- 1200 WATTS
- Series
- ALX Series
- Category
- Speakers
- Category
- Line Arrays

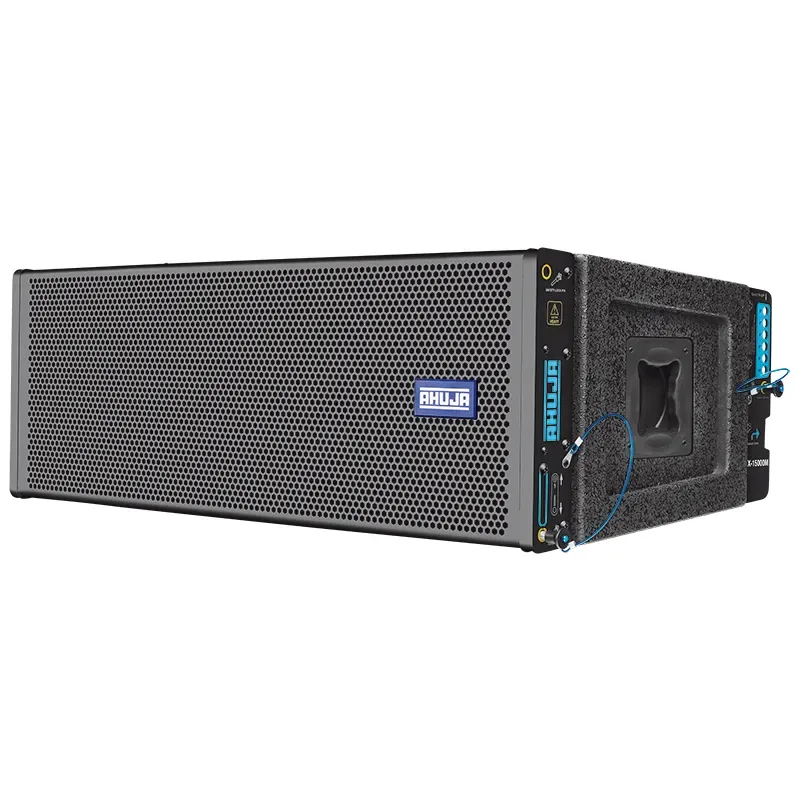

The Ahuja ALX-15000M is a 1200W line array speaker with 2×12" LF woofer and HF driver. It combines two powerful HF drivers with a waveguide horn for constant curvature line array system.
It has heavy duty steel grille with acoustically transparent foam to protect speakers from various adverse working conditions.
Features
- Each line array cabinet is designed to provide controlled & coherent coverage pattern with excellent high frequency response.
- Comprises of two powerful HF drivers with a waveguide horn for constant curvature line array system.
- Smart rigging arrangement for quick & secure installation.
- Professional 2-way passive crossover network with HF protection.
- Strong, attractive and well braced speaker cabinet in durable paint finish.
- Heavy duty steel grille with acoustically transparent foam to protect speakers from various adverse working conditions.
- A sturdy and rugged flybar frame is available for rigging the line array cabinets.
- Suitable for a wide variety of applications in Fixed Installations, Rental, Djs and Live Sound Reinforcement.
Specifications, Q&A and videos
| Power Rating | 1200W RMS |
|---|---|
| Configuration | Two Way |
| Frequency Response | 58-20,000Hz |
| Low Frequency Speaker | 2 × 304.8 mm (12”), Ø89mm (3.5”) Voice Coil |
| High Frequency Unit | Waveguide Horn with 1 × 38.1mm (1.5”) Throat Compression Driver |
| SPL (1W/1m) | 97dB |
| Max Rated SPL | 128dB |
| Nominal Impedance | 8Ω |
| Horizontal Coverage Angle | 120° |
| Vertical Coverage Angle | 10° |
| Variable Splay Angles | 0°, 2°, 4°, 6°, 8°, 10° |
| Connectors | 2 Nos. of Speakon Sockets |
| Dimensions | W1050 x H360 x D530 mm |
| Weight | 48.70kg |
The ALX-15000M is an Ahuja line array speaker in the ALX Series rated 1200 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Each line array cabinet is designed to provide controlled & coherent coverage pattern with excellent high frequency response; Comprises of two powerful HF drivers with a waveguide horn for constant curvature line array system; Smart rigging arrangement for quick & secure installation; Professional 2-way passive crossover network with HF protection; Strong, attractive and well braced speaker cabinet in durable paint finish; Heavy duty steel grille with acoustically transparent foam to protect speakers from various adverse working conditions.
The ALX-15000M configuration is Two Way.
The ALX-15000M frequency response is 58-20,000Hz.
The ALX-15000M low frequency speaker is 2 × 304.8 mm (12”), Ø89mm (3.5”) Voice Coil.
The ALX-15000M high frequency unit is Waveguide Horn with 1 × 38.1mm (1.5”) Throat Compression Driver.
The ALX-15000M spl (1w/1m) is 97dB.
