Ahuja
ALX-6000
- Power
- 500 WATTS
- Series
- ALX Series
- Category
- Speakers
- Category
- Line Arrays

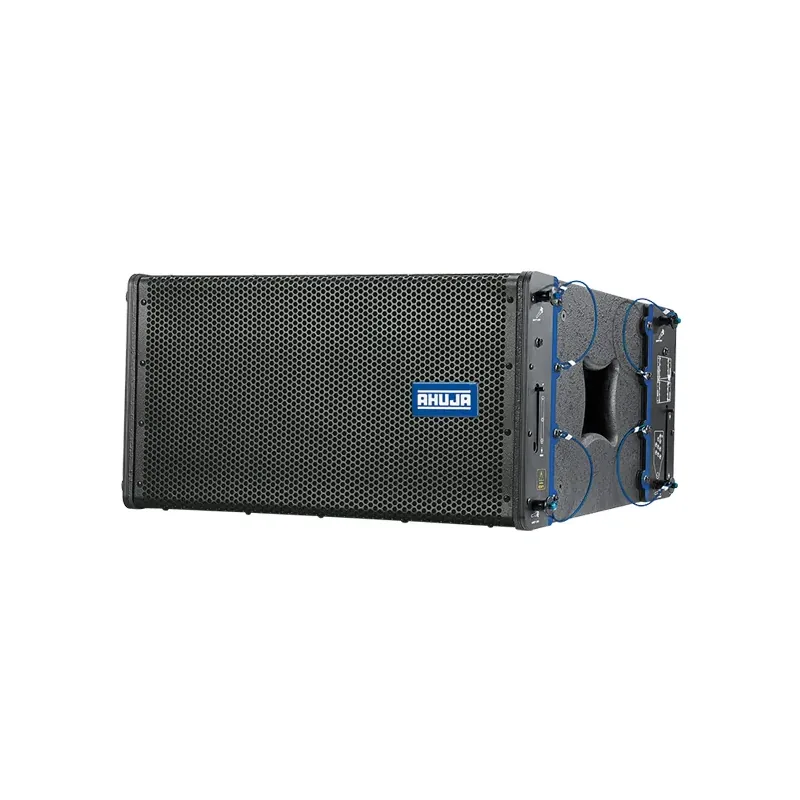

The Ahuja ALX-6000 is a 500W line array speaker with 12" LF woofer and HF driver. It has an omprises of a powerful HF driver with a waveguide horn for constant curvature line array system.
It has heavy duty steel grille with acoustically transparent foam to protect speakers from various adverse working conditions.
Features
- ALX-6000 is a compact single 30.48cm (12") line array speaker system. Each module of ALX-6000 comprises of a powerful LF driver and a high performance HF driver to deliver crisp, clear and clean sound in a variety of indoor and outdoor installations.
- Each line array cabinet is designed to provide controlled & coherent coverage pattern with excellent high frequency response.
- omprises of a powerful HF driver with a waveguide horn for constant curvature line array system.
- Simple rigging arrangement for quick & secure installation.
- Professional 2-way passive crossover network with HF protection.
- Strong, well braced & resonance free speaker cabinet in durable paint finish.
- Heavy duty steel grille with acoustically transparent foam to protect speakers from various adverse working conditions.
- A sturdy and rugged flybar frame is available for rigging the line array cabinets.
- Suitable for a wide variety of applications in Fixed Installations, Rental, Djs and Live Sound Reinforcement.
Specifications, Q&A and videos
| Power Rating | 500W RMS |
|---|---|
| Configuration | Two Way |
| Frequency Response | 55-20,000Hz |
| Low Frequency Speaker | 1 × 304.8mm (12”) Woofer |
| High Frequency Unit | 1 x 38.1mm (1.5”) Throat Compression Driver |
| SPL (1W/1m) | 96dB |
| Max Rated SPL | 122dB |
| Nominal Impedance | 8Ω |
| Horizontal Coverage Angle | 120° |
| Vertical Coverage Angle | 10° |
| Variable Splay Angles | 0°, 1°, 2°, 3°, 4°, 5°, 6°, 7°, 8° |
| Connectors | 2 Nos. of Speakon Sockets |
| Dimensions | W675 x H355 x D530 mm |
| Weight | 48.50kg |
The ALX-6000 is an Ahuja line array speaker in the ALX Series rated 500 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
ALX-6000 is a compact single 30.48cm (12") line array speaker system. Each module of ALX-6000 comprises of a powerful LF driver and a high performance HF driver to deliver crisp, clear and clean sound in a variety of indoor and outdoor installations; Each line array cabinet is designed to provide controlled & coherent coverage pattern with excellent high frequency response; omprises of a powerful HF driver with a waveguide horn for constant curvature line array system; Simple rigging arrangement for quick & secure installation; Professional 2-way passive crossover network with HF protection; Strong, well braced & resonance free speaker cabinet in durable paint finish.
The ALX-6000 configuration is Two Way.
The ALX-6000 frequency response is 55-20,000Hz.
The ALX-6000 low frequency speaker is 1 × 304.8mm (12”) Woofer.
The ALX-6000 high frequency unit is 1 x 38.1mm (1.5”) Throat Compression Driver.
The ALX-6000 spl (1w/1m) is 96dB.
