Ahuja
ALIVE 510
- Power
- 300 WATTS
- Series
- ALIVE Series
- Category
- Speakers
- Category
- Active Speakers

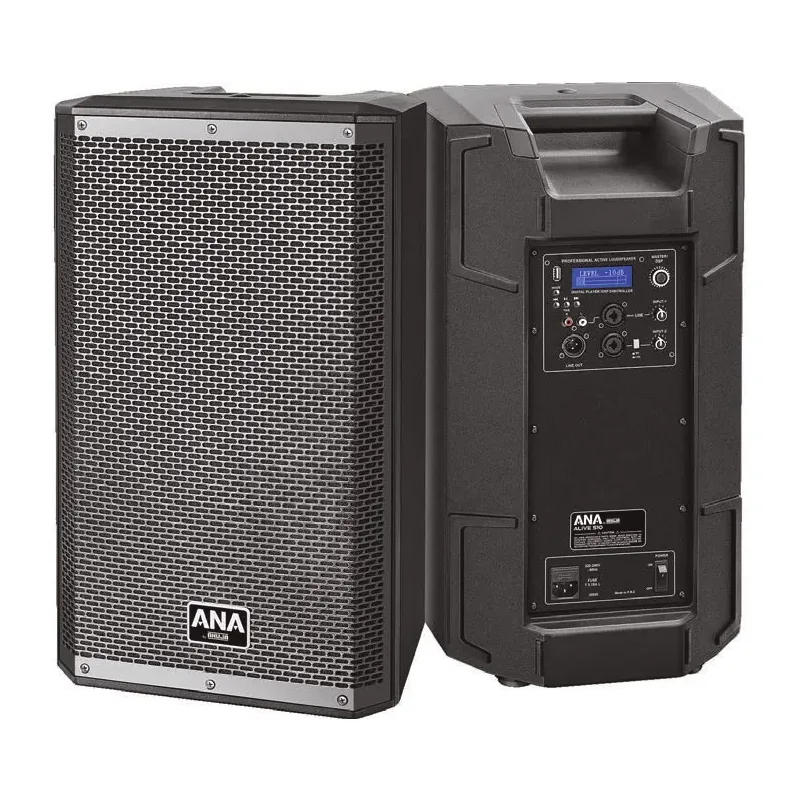

The Ahuja ALIVE 510 is a 300W professional active loudspeaker with a moulded cabinet. Balanced Line Output through XLR connector for easy connection of multiple ALIVE speakers.
Built-in DSP processor with presets; Music, DJ/Club, Live and Speech.
Features
- Attractive Plastic moulded cabinet. Product designed for use in a wide variety of PA and Musical Instrument applications.
- Built-in DSP processor with presets; Music, DJ/Club, Live and Speech.
- Balanced XLR combo connector for MIC & LINE inputs.
- Balanced Line Output through XLR connector for easy connection of multiple ALIVE speakers.
- Active Bass/Mid/Treble controls for proper shaping of Low/Mid/High frequency levels.
- Built-in limiter which is tuned optimally for speaker protection.
- Built-in MP3 player with BT facility.
Specifications, Q&A and videos
| Power Output (Bi-Amp) | LF: 280W RMS at 1% THD Class D, HF: 20W RMS at 1% THD Class D |
|---|---|
| Output Regulation | Better than 0.5dB |
| Input Channels | INPUT-1: LINE Input 775mV through XLR combo or RCA, INPUT-2: MIC/Line switchable, MIC-15mV, Line775mV |
| Frequency Response | 50-20,000Hz ±3dB |
| DSP Processor | Built-in Preset Options: Speech, Music, Club/DJ, Live |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±12dB, Mid ±12dB, Treble ±12dB |
| Output | Line Output - 775mV (through M/XLR) |
| Protections | AC: Fuse 1 x 3.15A (T 3.15AL) |
| Power Supply | AC: 220-240V 50/60Hz |
| Dimensions | W330 x H575 x D310 mm |
| Weight | 13.45 kg |
The ALIVE 510 is an Ahuja professional active loudspeaker in the ALIVE Series rated 300 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Attractive Plastic moulded cabinet. Product designed for use in a wide variety of PA and Musical Instrument applications; Built-in DSP processor with presets; Music, DJ/Club, Live and Speech; Balanced XLR combo connector for MIC & LINE inputs; Balanced Line Output through XLR connector for easy connection of multiple ALIVE speakers; Active Bass/Mid/Treble controls for proper shaping of Low/Mid/High frequency levels; Built-in limiter which is tuned optimally for speaker protection.
The ALIVE 510 power output (bi-amp) is LF: 280W RMS at 1% THD Class D, HF: 20W RMS at 1% THD Class D.
The ALIVE 510 output regulation is Better than 0.5dB.
The ALIVE 510 input channels is INPUT-1: LINE Input 775mV through XLR combo or RCA, INPUT-2: MIC/Line switchable, MIC-15mV, Line775mV.
The ALIVE 510 frequency response is 50-20,000Hz ±3dB.
The ALIVE 510 dsp processor is Built-in Preset Options: Speech, Music, Club/DJ, Live.
