SM Professional
ZA 800
- Power
- 500 WATTS
- Channels
- 2 Channels
- Series
- Zone / ZA
- Category
- Mixer Amplifiers
- Category
- Zone Mixer Amplifiers

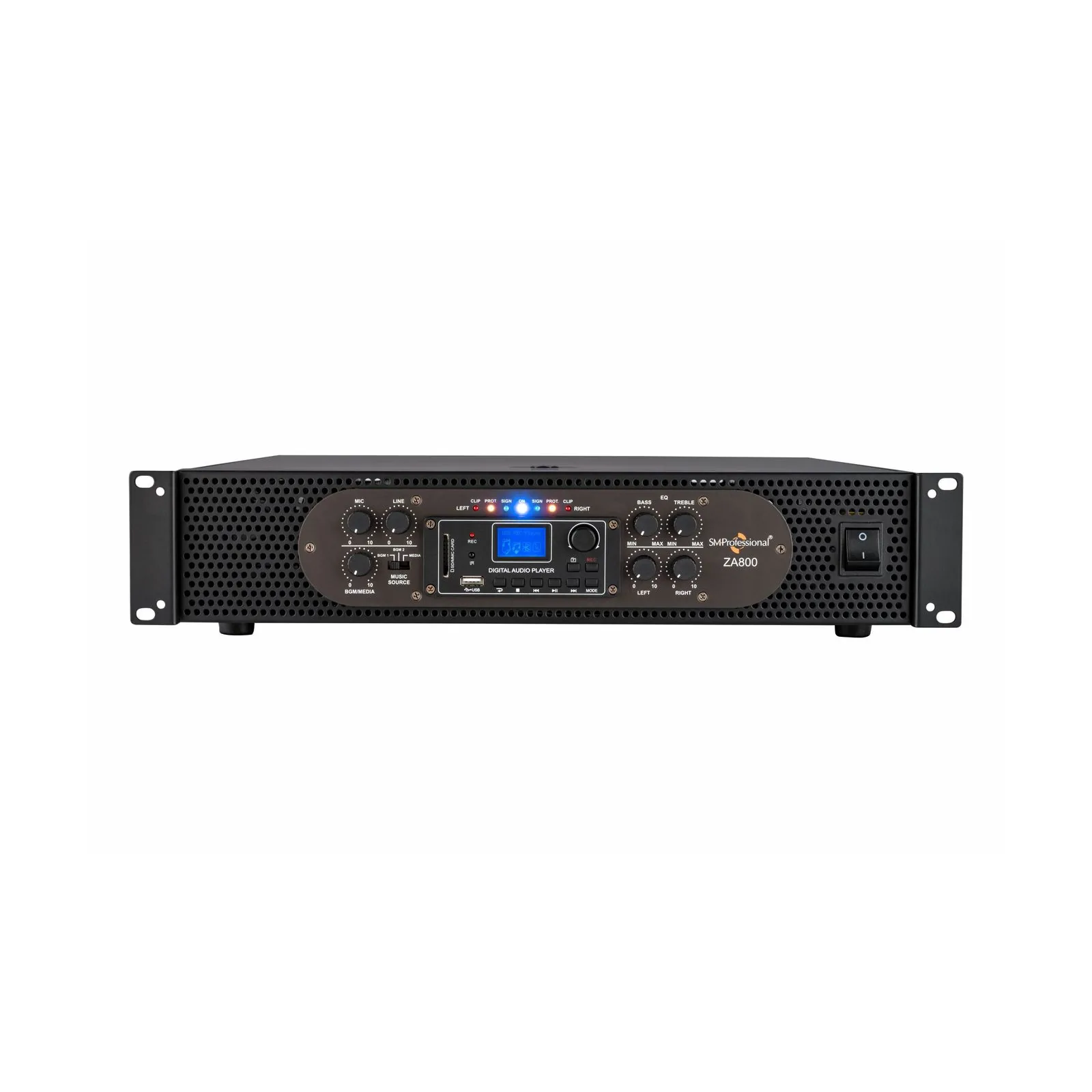

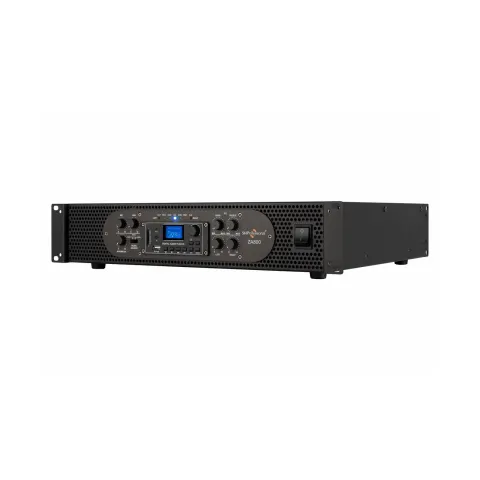

The SM Professional ZA 800 is a professional multi input stereo mixer-amplifier rated to deliver 2 x 250W (4Ω) or 2 x 165W (8Ω).
Featuring built-in USB/SD/MMC MP3 media player & recorder with Bluetooth & FM, multiple inputs and outputs, abundant routing options, VOX priority and more, the all-in-one system is ideal for a wide range of install, PA, BGM and other versatile sound reinforcement applications.
Features
- Professional multi-input stereo mixer-amplifier.
- Rugged design based on the reliable DJA series amplifier technology.
- Built-in USB/SD/MMC MP3 media player & recorder with Bluetooth & FM.
- 1⁄4” balanced Mic input with VOX priority to override other inputs when activated.
- 1⁄4” L/R unbalanced inputs to connect line level signal sources.
- Dual stereo unbalanced RCA inputs to connect audio and BGM input sources.
- Unbalanced 1⁄4” mono jack and stereo RCA mix out to connect booster amplifiers.
- Secured screw type output terminals for speaker connections.
- Individual Mic, Line and BGM level controls.
- Quick music source selection switchable between BGM1, BGM2 and built-in media player.
- Individual L/R level controls and 2-band EQ (Bass/Treble) on the master output.
- LED indicators on the front panel for power, signal, clip and protect modes.
- Mains voltage operation 240V AC as well low collage operation at 150V AC.
- All-in-one designed ideal for a wide range of install, PA, BGM and other versatile sound reinforcement applications.
Specifications, Q&A and videos
| Series | ZA Series |
|---|---|
| Stereo Power Output (RMS) | 2 x 250W (4Ω) 2 x 165W (8Ω) |
| Input Connectors | Microphone: 1⁄4" Stereo Jack (Balanced) Stereo Line: 1⁄4" Mono Jack (Unbalanced) BGM: Stereo RCA Connectors (Unbalanced) |

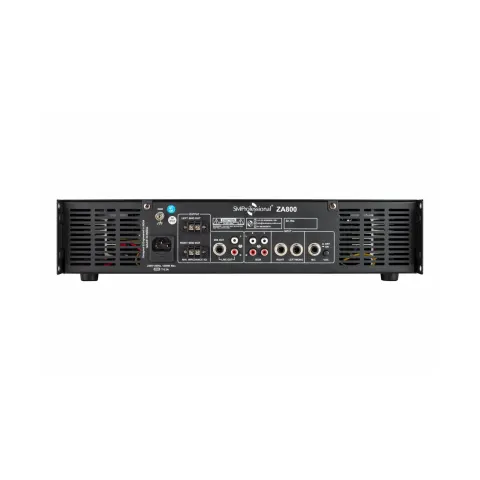

| Output connectors | Line Out: Mix (Unbalanced 1⁄4" Mono Jack) & Stereo (Unbalanced RCA) Main Out (Speaker): 2 Pin Terminal Block |
| Audio Media Player | USB/SD/MMC MP3 Media Player, Recorder, Bluetooth & FM |
| Tone Controls (2-band EQ) | Bass: ±10dB @ 100Hz Treble: ±10dB @ 10kHz |
| Frequency Response | 20Hz-20kHz (-3dB) |
| Protection Devices | Temperature, DC, Short Circuit and Soft Start |
| Cooling | 2 x Variable Speed Fans (80mm) |
| Indicators | Signal, Protect, Clip and Power |
| Dimensions (W x D x H) mm | 482 x 425 x 88 (2U) |
| Net Weight (Kg) | 11.3 |
The ZA 800 is an SM Professional PA product in the Zone / ZA. The SM Professional ZA 800 is a professional multi input stereo mixer-amplifier rated to deliver 2 x 250W (4Ω) or 2 x 165W (8Ω). Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional multi-input stereo mixer-amplifier; Rugged design based on the reliable DJA series amplifier technology; Built-in USB/SD/MMC MP3 media player & recorder with Bluetooth & FM; 1⁄4” balanced Mic input with VOX priority to override other inputs when activated; 1⁄4” L/R unbalanced inputs to connect line level signal sources; Dual stereo unbalanced RCA inputs to connect audio and BGM input sources.
The ZA 800 stereo power output (rms) is 2 x 250W (4Ω) 2 x 165W (8Ω).
The ZA 800 input connectors is Microphone: 1⁄4" Stereo Jack (Balanced) Stereo Line: 1⁄4" Mono Jack (Unbalanced) BGM: Stereo RCA Connectors (Unbalanced).
The ZA 800 output connectors is Line Out: Mix (Unbalanced 1⁄4" Mono Jack) & Stereo (Unbalanced RCA) Main Out (Speaker): 2 Pin Terminal Block.
The ZA 800 audio media player is USB/SD/MMC MP3 Media Player, Recorder, Bluetooth & FM.
The ZA 800 tone controls (2-band eq) is Bass: ±10dB @ 100Hz Treble: ±10dB @ 10kHz.
