SM Professional
The SM Professional ARC series installation amplifiers offer versatile features & outstanding value for general public address & installed sound applications such as schools, offices, restaurants, shops, factories, houses of worship & large meeting rooms.
| Series | ARC Series |
|---|---|
| Power Output | 10% THD - 160W RMS 5% THD - 150W RMS 1% THD - 120W RMS Max - 200W |
| Outputs Speakers | min 4 Ω, 8 Ω, 16 Ω, 70V, 100V |
| Line Out | 1V/600 Ω |
| Pre Out | 1V/600 Ω |
| Input 1–4 | Mic 1.5 mV/1.1kΩ 300mV/14kΩ; XLR, balanced 300mV/50kΩ; RCA, unbalanced |
| AUX | 300mV/50kΩ; RCA, unbalanced |
| Frequency Range | 80 –15000Hz, ±3dB |
| S/N ratio | > 75dB |
| Bass | +6dB/-10dB/100Hz |
| Treble | ±10dB/10Hz |
| Power Supply | 240V~/50Hz |
| External DC Supply | 24V/9A |
| Dimensions (W x D x H)mm | 482 x 305 x 95 (2U) |
| Net Weight (Kgs.) | 10.6 |

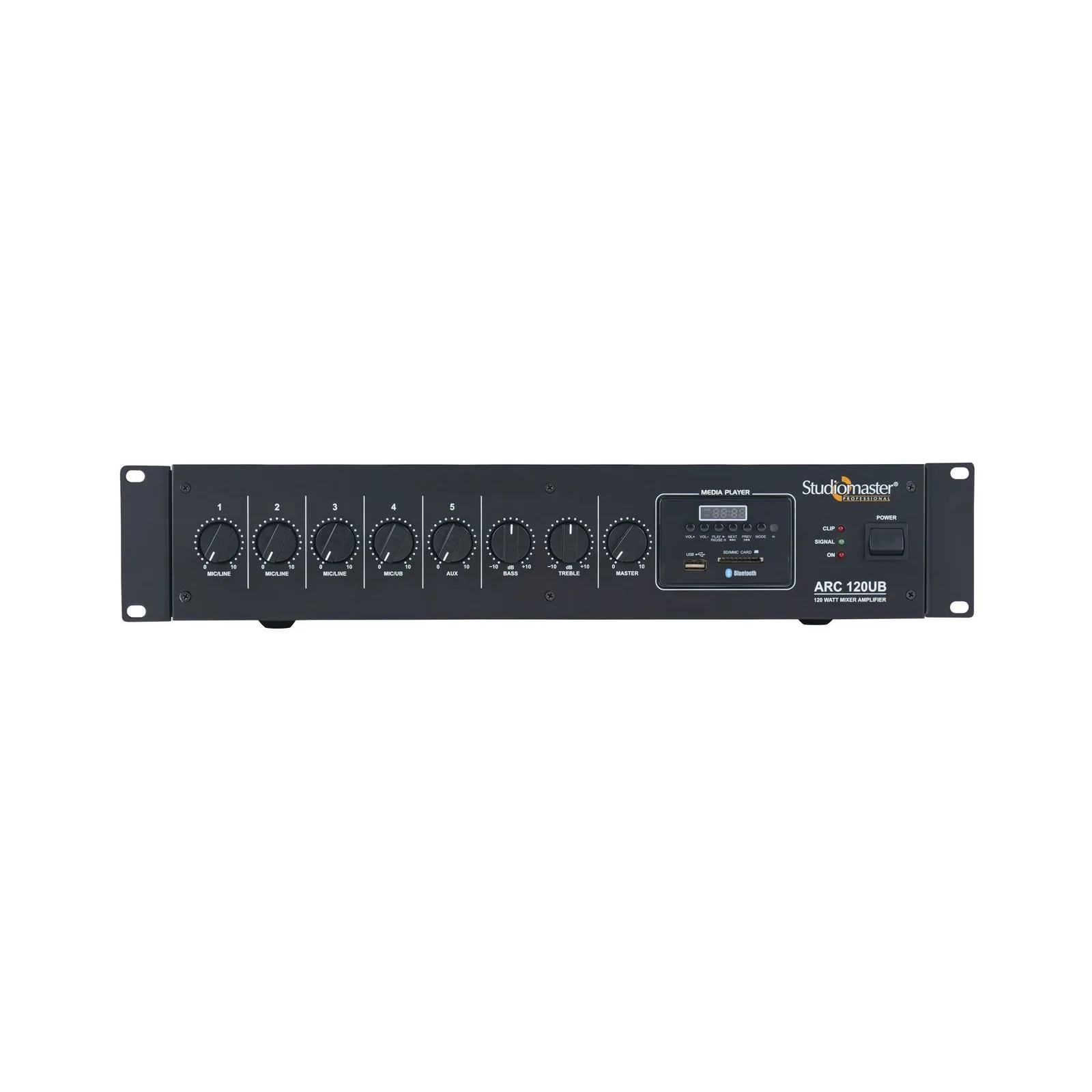

The ARC 120UB is an SM Professional installation loudspeakers and zone system in the ARC Series rated 160 WATTS. The SM Professional ARC series installation amplifiers offer versatile features & outstanding value for general public address & installed sound applications such as schools,. Available from Mansukhlal Sales Corp, an authorized dealer.

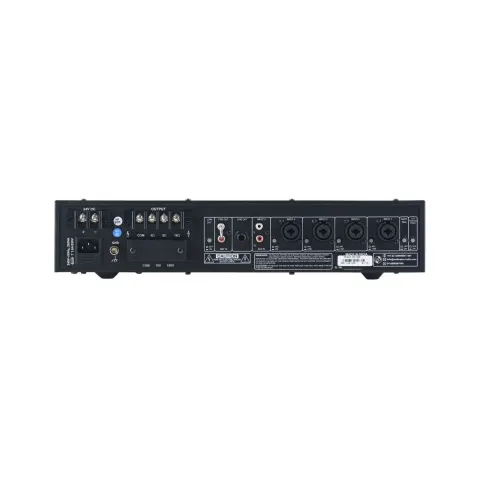

3 Balanced Mic/Line Inputs (Combo jacks) + 1Mic / USB + Bluetooth; 1 Auxiliary (stereo summing) Input; Bass/Treble & Master controls on front panel; Switchable phantom power for CH 1 mic input; Low cut switch on rear panel; Vox Priority on channel 1 overrides all other Input signals when activated.
The ARC 120UB outputs speakers is min 4 Ω, 8 Ω, 16 Ω, 70V, 100V.
The ARC 120UB line out is 1V/600 Ω.
The ARC 120UB pre out is 1V/600 Ω.
The ARC 120UB input 1–4 is Mic 1.5 mV/1.1kΩ 300mV/14kΩ; XLR, balanced 300mV/50kΩ; RCA, unbalanced.
The ARC 120UB aux is 300mV/50kΩ; RCA, unbalanced.
