SM Professional
ARC 120A
- Power
- 160 WATTS
- Series
- ARC Series
- Category
- Mixer Amplifiers
- Category
- Zone Mixer Amplifiers

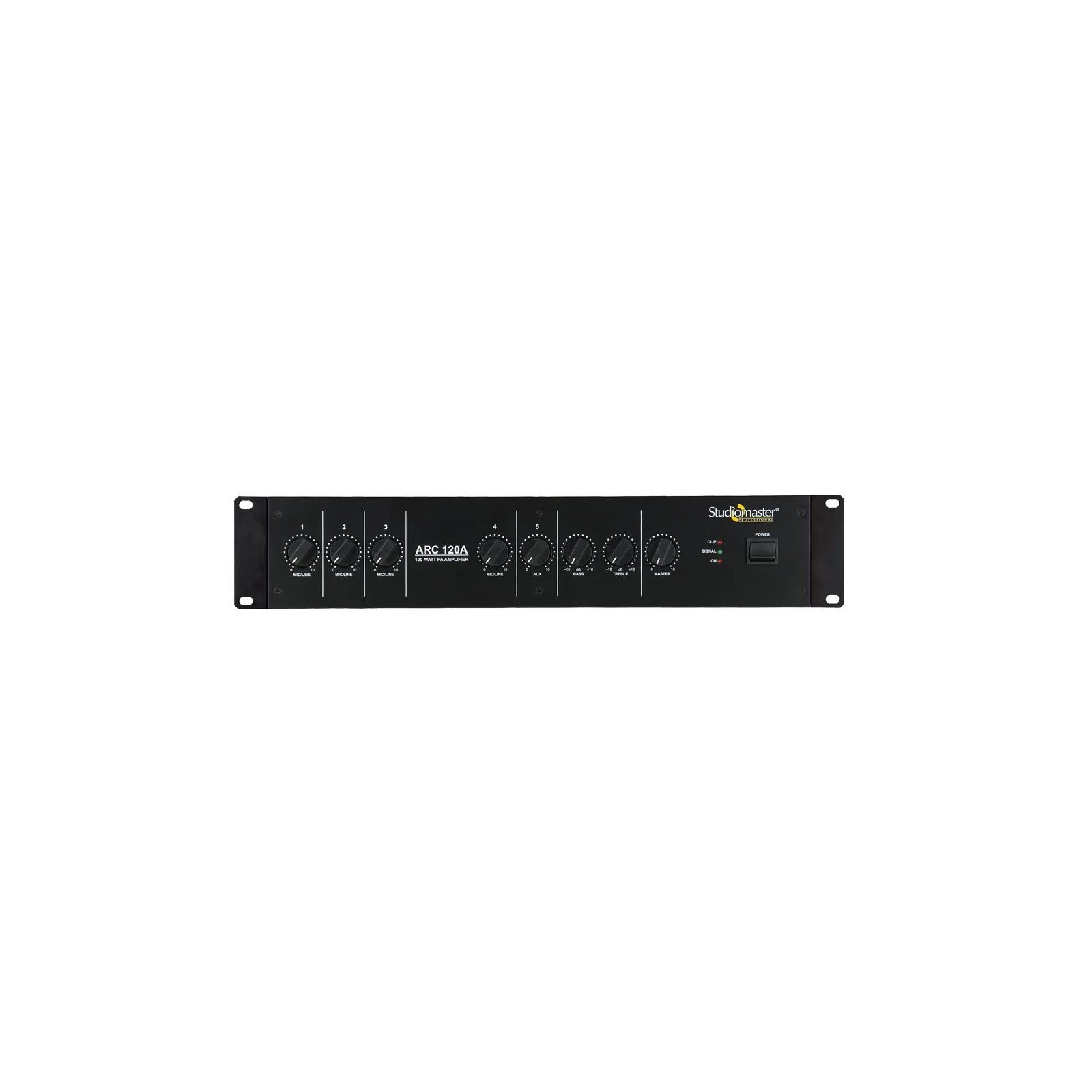

The SM Professional ARC 120A MIXER/POWER AMPLIFIER offers versatile features & outstanding value for installed sound applications such as schools, offices, restaurants, shops, factories, houses of worship and large meeting rooms.
Features
- Professional 19” rack mounted PA Amplifier/Mixer.
- 4 Balanced Mic/Line Inputs (Combo jacks)
- 1 Auxiliary (stereo summing) Input.
- Bass/Treble & Master controls on front panel.
- Switchable phantom power for CH 1 mic input.

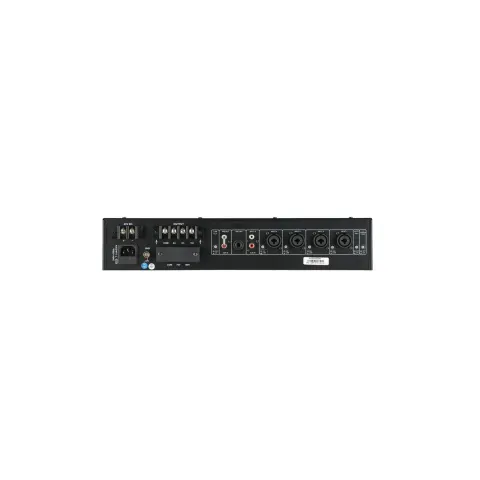

- Low cut switch on rear panel.
- Vox Priority on channel 1 overrides all other Input signals when activated
- LED indicators for power on, signal & clip.
- Pre out & Amp in (Send/Return) to connect to Equalizers or EFX processors.
- Auxiliary Line Out to connect to a Booster Amplifier
- 24V DC operation.
Specifications, Q&A and videos
| Series | ARC Series |
|---|---|
| Power Output | 10% THD - 160W RMS 5% THD - 150W RMS 1% THD - 120W RMS Max - 200W |
| Outputs Speakers | min 4 Ω, 8 Ω, 16 Ω, 70V, 100V |
| Line Out | 1V/600 Ω |
| Pre Out | 1V/600 Ω |
| Input 1–4 | Mic 1.5 mV/1.5kΩ switchable to Line 300mV/14kΩ; XLR, balanced |
| AUX | 300mV/50kΩ; RCA, unbalanced |
| Frequency Range | 80 –15000Hz, ±3dB |
| S/N ratio | > 92dB |
| Bass | +6dB/-10dB/100Hz |
| Treble | ±10dB/10Hz |
| Power Supply | 240V~/50Hz |
| External DC Supply | 24V/9A |
| Dimensions (W x D x H)mm | 482 x 305 x 95 (2U) |
| Net Weight (Kgs.) | 10.6 |
The ARC 120A is an SM Professional Installation loudspeakers and zone system in the ARC Series rated 160 WATTS. The SM Professional ARC 120A MIXER/POWER AMPLIFIER offers versatile features & outstanding value for installed sound applications such as schools, offices, restaurants, shops,. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 19” rack mounted PA Amplifier/Mixer; 4 Balanced Mic/Line Inputs (Combo jacks); 1 Auxiliary (stereo summing) Input; Bass/Treble & Master controls on front panel; Switchable phantom power for CH 1 mic input; Low cut switch on rear panel.
The ARC 120A outputs speakers is min 4 Ω, 8 Ω, 16 Ω, 70V, 100V.
The ARC 120A line out is 1V/600 Ω.
The ARC 120A pre out is 1V/600 Ω.
The ARC 120A input 1–4 is Mic 1.5 mV/1.5kΩ switchable to Line 300mV/14kΩ; XLR, balanced.
The ARC 120A aux is 300mV/50kΩ; RCA, unbalanced.
