SM Professional
Zone 66
- Zones
- 6 Zones
- Series
- Zone / ZA
- Category
- Paging System
- Category
- Zonal System

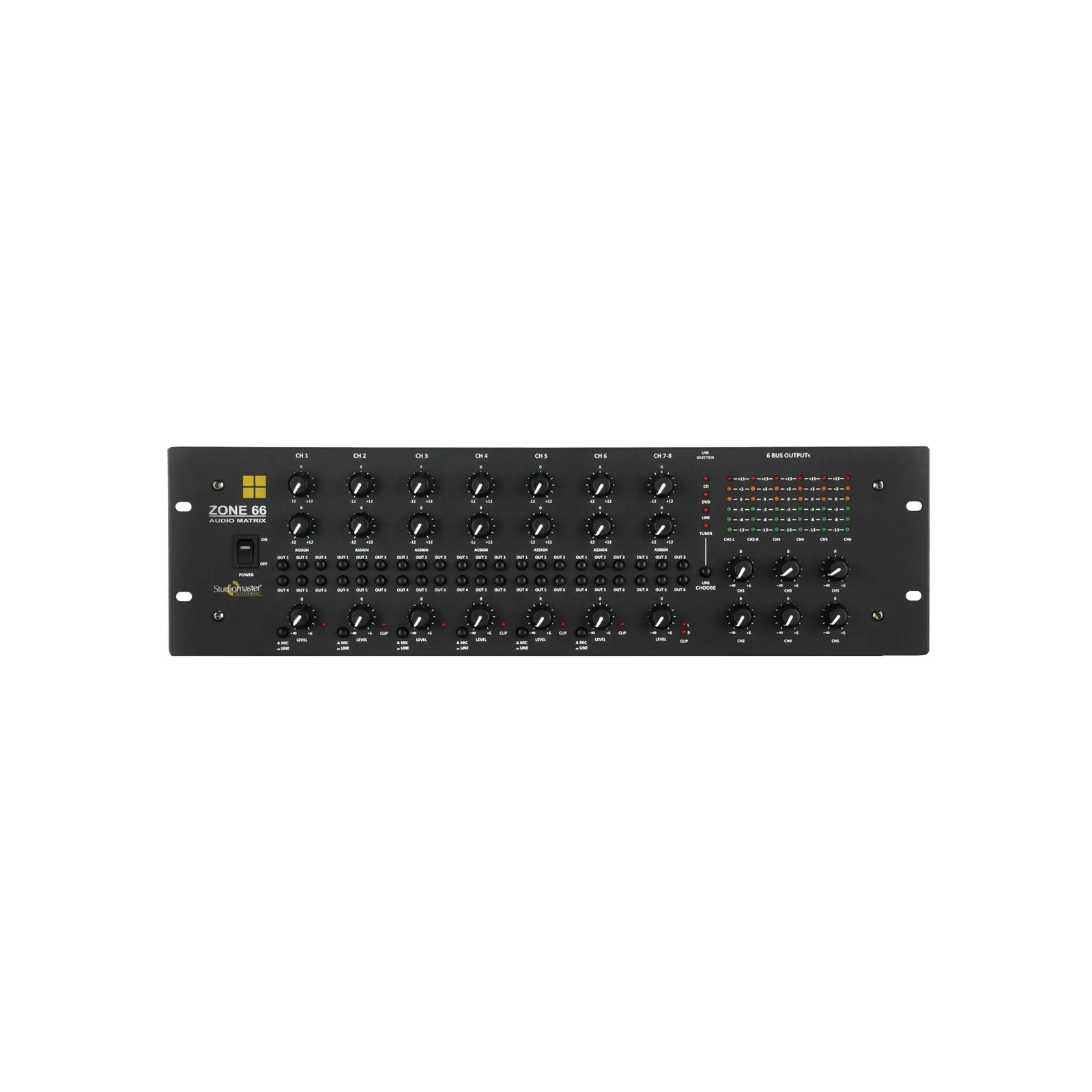

The SM Professional Zone 66 is a 6 zone paging system designed for a variety of environs such as Factories, Hospitals, Schools, etc.
Features
- 6 Mic/Line inputs switchable to 6 outputs with independent Gain control, 2 band equalizer, Level control &CLIP led.
- One Stereo channel with 4-way input selector Gain control, 2 band equalizer, Level control & CLIP led.
- Matrix assignment : Each input channel can be assigned to any combination of output(s).
- Each Microphone input is with low noise preamplifier & +48V Phantom voltage selection switch.
- 6 mono outputs with level controls & 6-digit LED level meter.

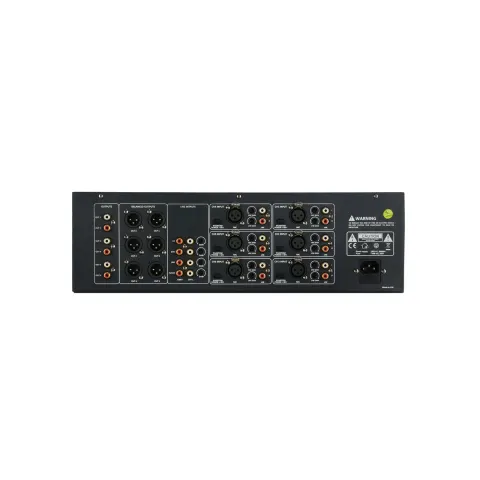

- Input connectors: 6X Line ( Stereo RCA ) , 6X Mic ( XLR ) & 4X Aux ( Stereo RCA ).
- Output connectors: 6X ( XLR balanced and RCA Unbalanced ).
Specifications, Q&A and videos
| Input Gain ( Mic / Line ) | +12 to +60dB |
|---|---|
| Output Level | +6dB |
| Frequency Response | 20Hz - 20KHz |
| Signal to Noise RatioMic / Line | Better than -75dB / Better than -85dB |
| THD (Mic / Line) | < 1% / <0.05% |
| Tone Control - Bass / Treble | ± 12dB / 100Hz / ±12dB / 10kHz |
| Input Connectors | 6 x Line (Stereo RCA), 6 x Mix (XLR) & 4 x Aux (Stereo RCA) |
| Output Connectors | 6 x (XLR balanced and RCA Unbalanced) |
| Dimensions (W x D x H)mm | 483 x 172.5 x 133 (3 U) |
| Net Weight (Kgs.) | 4.8 |
The Zone 66 is an SM Professional PA product in the Zone / ZA. The SM Professional Zone 66 is a 6 zone paging system designed for a variety of environs such as Factories, Hospitals, Schools, etc. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
6 Mic/Line inputs switchable to 6 outputs with independent Gain control, 2 band equalizer, Level control &CLIP led; One Stereo channel with 4-way input selector Gain control, 2 band equalizer, Level control & CLIP led; Matrix assignment : Each input channel can be assigned to any combination of output(s); Each Microphone input is with low noise preamplifier & +48V Phantom voltage selection switch; 6 mono outputs with level controls & 6-digit LED level meter; Input connectors: 6X Line ( Stereo RCA ) , 6X Mic ( XLR ) & 4X Aux ( Stereo RCA ).
The Zone 66 input gain ( mic / line ) is +12 to +60dB.
The Zone 66 output level is +6dB.
The Zone 66 frequency response is 20Hz - 20KHz.
The Zone 66 signal to noise ratiomic / line is Better than -75dB / Better than -85dB.
The Zone 66 thd (mic / line) is < 1% / <0.05%.
